Summary of Contents for rioECO HCJ100T

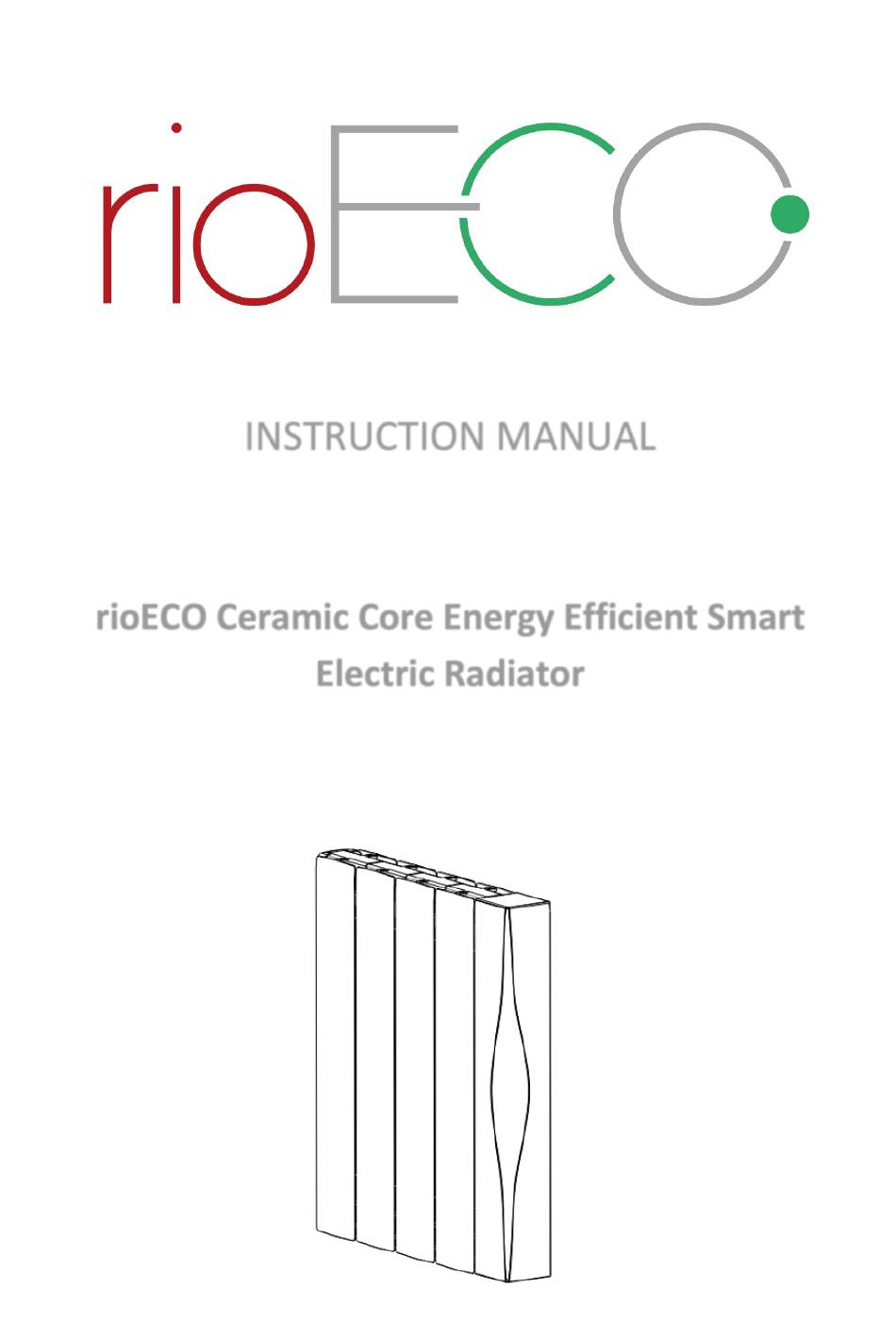

- Page 1 INSTRUCTION MANUAL rioECO Ceramic Core Energy Efficient Smart Electric Radiator...
- Page 2 PLEASE READ AND SAVE THESE INSTRUCTIONS SYMBOLS USED IN THIS MANUAL: Warning This symbol indicates a hazard which could result in serious injury or death if not avoided. Warning of electric shock hazard This symbol indicates danger to the life and health of persons due to electric voltage. Do Not Cover This symbol indicates that nothing (e.g.
-
Page 3: Table Of Contents
CONTENTS 1. Warnings & Precautions 2. Technical Specifications 3. Installation 4. Operating Instructions Power Switch LCD Display Modes Settings Child lock Reset to defaults Standby mode 5. Connecting to WiFi Downloading the App Connecting to the App Troubleshooting 6. Using the App Home overview Control interface Choose mode... -
Page 4: Warnings & Precautions
1. WARNINGS AND PRECAUTIONS Please read these instructions carefully before using or installing the radiator. Failure to follow the warnings or instructions could result in electric shock, fire, serious injury or all of the above. Always store the instruction manual in the immediate vicinity of the radiator or its site of use. -
Page 5: Technical Specifications
2. TECHNICAL SPECIFICATIONS Heating Element Ceramic core Power 230V~ / 50 Hz Wattage 1000W, 1500W, 2000W Temperature Setting Range 7 – 30 °C Minimum temperature setting value 0.5 °C Appliance Class Class II 3. INSTALLATION Before installing the radiator, please ensure that all fixings are supplied, as per diagram below. Only fixings provided by the manufacturer should be used to mount the device to the wall. - Page 6 2. Place the template against the wall and mark the locations of the 5 drill holes required for your product size. Before drilling, ensure there are no pipes, electric cables or other hazards. Once drilled, fit the wall plugs into the 5 holes and fix the brackets in place with the wall mounting screws, as shown in the diagram below.
-
Page 7: Operating Instructions
4. Now feed the locking screws into the upper brackets, to secure the unit in place, as pictured below: 4. OPERATING INTRUCTIONS 1. Power Switch Before first use, the radiator must be switched on at the mechanical switch at the back of the unit. -
Page 8: Modes
2. Display The appliance features a lockable touchscreen control panel with backlit LCD display. The backlight will appear when the panel is in use and will switch off after one minute of inactivity. Image 1 To switch between different modes, press the button. - Page 9 3. Modes COMFORT MODE When the icon appears on the display screen, this denotes that the radiator is in Comfort Mode. In this mode, the radiator will heat to a constant set temperature e.g. 19°C (default temperature). The internal thermostat measures the room temperature and switches the radiator on and off accordingly to maintain the desired temperature.
- Page 10 Setting the time: Press and hold the Use the to set button for 5 the hour and press seconds until the confirm. The minutes icon hours icon starts to will then begin to flash. flash. As before, use the Use the buttons set the day of the week: 1 to set the minutes on...
-
Page 11: Settings
The bars at the bottom of the When you see this screen, screen will change to reflect it means you are choosing a your choice, and the display will mode for midnight on advance to P1 01 – which means 1am on Monday Monday morning. -
Page 12: Child Lock
• Sensor Mode (F1) This setting determines the length of time the radiator will wait to reduce its temperature after a presence is no longer detected in a room. The default time is 15 minutes. To customise, press the to scroll through the settings menu until F1 appears on the screen and use the buttons to select either 15, 30, 45 or 60 minutes. -
Page 13: Standby Mode
5. Connecting to WiFi | Downloading the App The rioECO Ceramic Core Energy Efficient Smart Electric Radiator is designed to work with the Smart Life app. Scan the code below to go to the app. Press install and follow the app’s instructions to create an account. -
Page 14: Troubleshooting
The app will ask you to enter and confirm your WiFi password. The radiator will begin connecting. When it is successfully added, it will appear as below on the app. Press to change the name of the radiator or Done to return to the home screen. -
Page 15: Using The App
6. USING THE APP NOTE – The Smart Life app is a constantly evolving third party system. The guide below was correct at time of printing but may differ slightly from future versions. Home Overview You can use the Smart Life app to control multiple devices. All devices are displayed on the home screen with their status. -
Page 16: Maintenance
Choose Mode Tap the mode icon on the control interface to choose mode. The five options correspond to the five modes on the control panel. Setting the Program Tap the program data icon on the control interface to configure a program. A program consists of 24 hourly intervals for each day, which you can set to Comfort or Eco temperature. -
Page 17: Information Requirements For Electric Space Heaters
Do not operate the radiator when wet. If the device gets wet during cleaning, allow it to dry completely before using. • N ever try to open the radiator even when it is not electrically powered. 8. Information requirements for electric space heaters Model HCJ100T HCJ150T HCJ200T Heat output Nominal heat output (P nom / kW) -
Page 18: Disposal
Two or more manual stages, no room temperature control [no] with mechanic thermostat room temperature control [no] with electronic room temperature control [no] electronic room temperature control plus day timer [no] electronic room temperature control plus week timer [yes] Other control options (multiple selections possible) room temperature control, with presence detection [yes] room temperature control, with open window detection...
