Summary of Contents for SOLO-E SOLO7

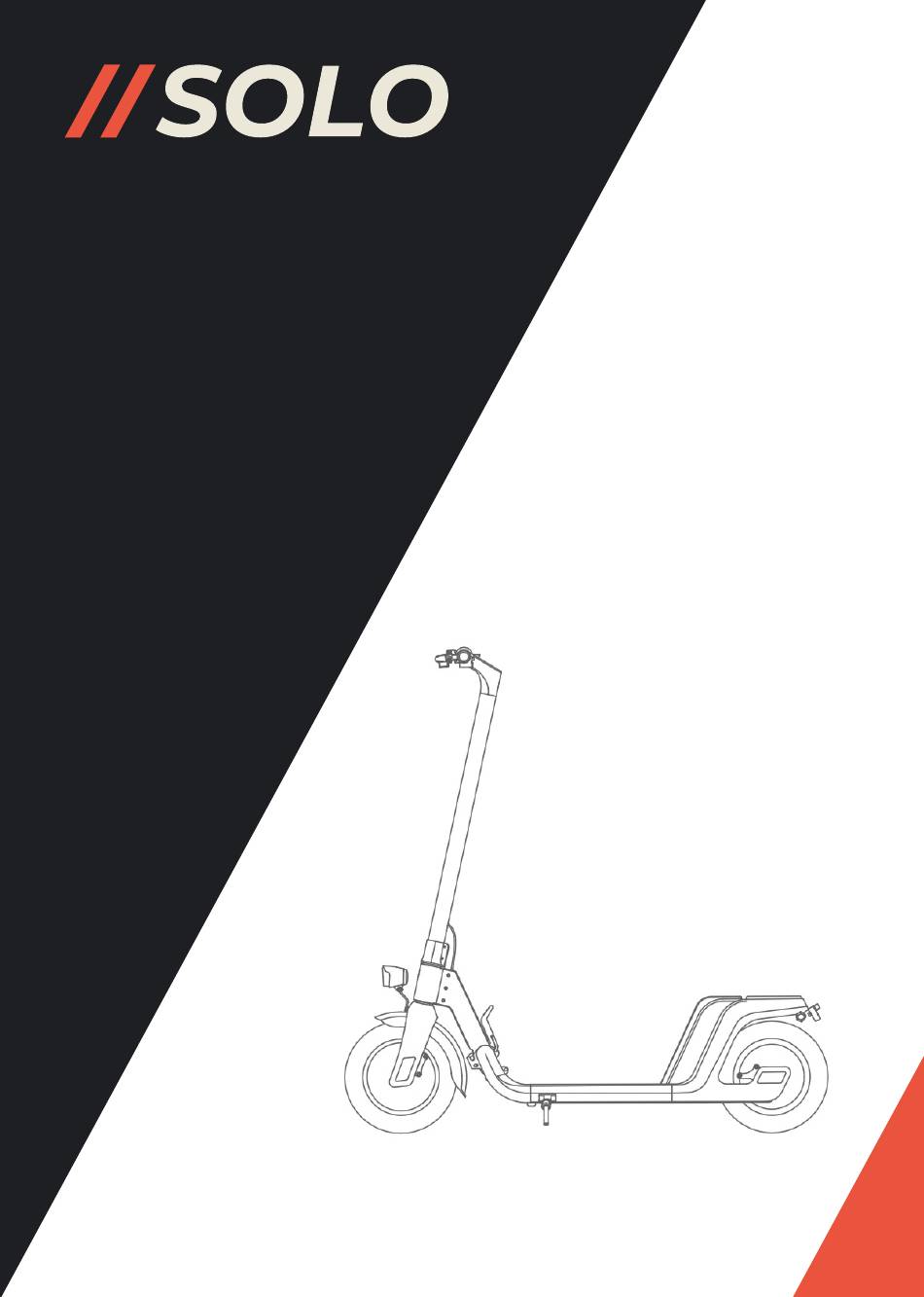

- Page 1 USER MANUAL...
-
Page 2: Using This Manual
This manual contains important instructions for the safe use and operation of the scooter. Please fully read the manual before using the scooter. Package Contents 1x Scooter quality checklist 1x SOLO7 electric scooter 1x SOLO7 charger 1x Handle bar 5x Screws 1x Tool kit:... - Page 3 DFT guidelines. The owner assumes all liability and risk associated with the use of electric scooter products and holds SOLO-E Ltd and its owners free from any liability or injury caused by their use.
-
Page 4: Specifications
Front and Rear * Note - Actual ranges achieved will vary based on factors including riding style, rider weight, environment and road surface. The SOLO7 will soon feature upgradable accessories and colour styles - For further information please contact your authorised dealer... - Page 5 SOLO7 Overview Indicator Right brake switch Left brake Throttle display Light switch Folding Horn buckle Front light Anti-slip deck surface Front fork Battery Reflector indicator Right indicator Rear light Front wheel Left Front indicator disc brake Battery lock Kickstand Charging...
-
Page 6: Speed Modes
LCD Dashboard Speed Speed unit (km/h when lit, mph when unlit) Battery charge Bluetooth Light (active when lit) Speed mode Speed Modes The scooter’s current speed mode is indicated by the speed mode symbol: No symbol = Low speed mode White symbol = Normal speed mode Red symbol = High speed mode... - Page 7 Dashboard On scooter models without turn signals; the dashboard features one button at the bottom of the display; press this to turn the scooter on and off. On scooter models with turn signals, the power button is positioned on the left handlebar (see later in the manual).
- Page 8 Assembly & Unfolding the Scooter Step 1 - Open the packaging and carefully remove the scooter and contents. Step 2 - Pull the steering column up to unfold the scooter. Step 3 - Lift the locking buckle (1) up and press this into position, then lift locking buckle (2) onto buckle (1).
- Page 9 Assembly - Unfolding the Scooter Step 5 - Fix the handle bars onto the steering column, using the supplied screws and tools. Step 6 - Check that the handle bar is fully tightened onto the steering column. Load Rack The scooter comes with the load rack preinstalled to the rear above the battery pack.
- Page 10 Collapsing The Scooter Step 1 - Unclip and push down locking buckle (2), then repeat with locking buckle (1). Step 2 - Push the steering column down towards the rear wheel of the scooter.
- Page 11 Using The Throttle & Brake Press the right throttle lever to accelerate the scooter to the desired speed. Brakes Press both brake levers evenly to slow the scooter down to a stop. Throttle Ensure both the throttle and brake levers are released when powering the scooter on or off.
-
Page 12: Riding The Scooter
Riding The Scooter Only operate the scooter in areas where legally permitted and safe to do so. Do not ride the scooter on public highways or in built-up areas that pose a risk of danger or injury to the rider or bystanders. Step 1 - Press and hold the power button on the left indicator console to power up... -
Page 13: Scooter Safety
Scooter Safety Always follow local guidance and highway laws when using the scooter at all times. Be wary of your environment, pedestrians and traffic at all times. Read this manual in full before riding the scooter for the first time. Prior to riding, check that the battery is charged, and there are no defects or damage that may affect the safety of the scooter. - Page 14 Scooter Safety Always follow local guidance and highway laws when using the scooter at all times. Be wary of your environment, pedestrians and traffic at all times. Use common sense and be courteous at all times when riding the scooter. Use both hands on the handlebars all times when riding the scooter.
- Page 15 Cleaning Before cleaning the scooter ensure it is powered off, unplugged and away from the charger unit and the charging port cap is securely closed to prevent risk of injury or damage through electrical shock or short circuiting. Clean the scooter using a soft, damp cloth only; for stains that cannot be wiped off, use a drop of toothpaste and a toothbrush to gently polish the stain away, wiping with a soft, damp cloth to finish.
-
Page 16: Battery Maintenance
Battery Maintenance Do not disconnect the battery for any reason as this can cause injury or damage due to electric shocks or short circuiting. In the event of a battery issue, please contact your authorised dealer for further advice and support. Ensure the scooter is stored in a cool dry place, ensuring the battery is away from direct sunlight, moisture, extreme heat or cold otherwise this can cause reduced battery effectiveness. -
Page 17: Manufacturer's Warranty
Manufacturer’s Warranty Riders can enjoy peace of mind with our scooters; we will glady repair or replace scooters or components in the event of faults caused by quality issues as per the below cases. Warranties will not be upheld if any damage or faults are deemed malicious or as a result of inappropriate use as per this manual.
