Lemeego X E-Bike 2021 Manual

This manual will provide precision instructions. Please make sure you read this carefully before you
take your first ride. If you any doubt about the information contained in these instructions, please
contact us or your local distributer.

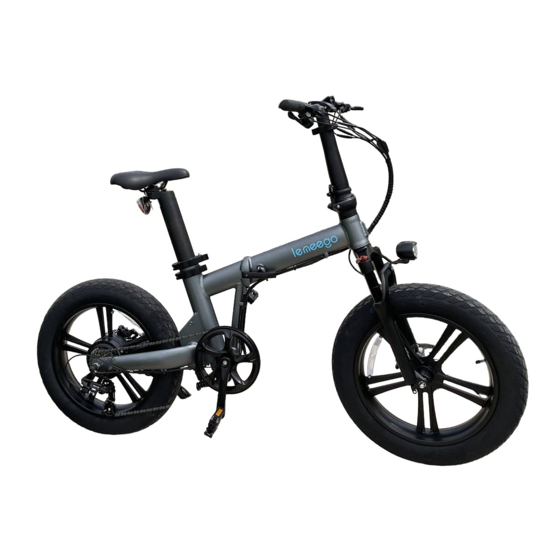

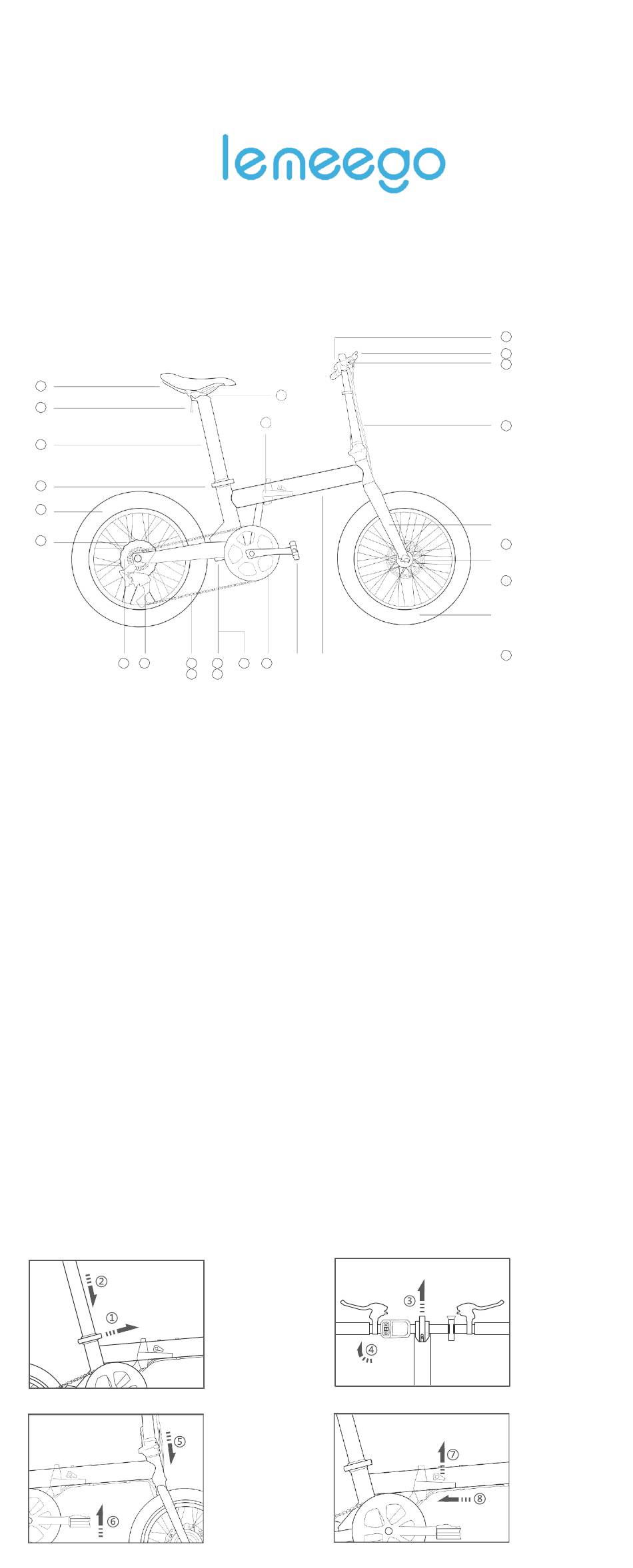

Meet Your Lemeego E-Bike
1
2
3
4
5
6
7 23
Specifications
Product Name: Lemeego X & S E-Bike
Model Name: QSEB04
Size: 1660*640*1180mm
Folded Size: 900*550*750mm
Wheel Base: 1100mm
Net Weight: 28.5kg
Range: 100km
Max. Load: 150kg
Max. Speed: 25km/h
Charging Time: 5 Hrs
Battery Type: LG Lithium-ion
Battery Capacity: 48V 15Ah
Noise : ≤ 62 dB(A)
Fold your E-Bike
MANUAL
21
22
8 9 10 11
12 13
Motor : MXUS 500W Brushless Geared DC Motor
Rated Output Power: 500W
Motor Efficiency: ≥78%
Rated RPM: 310±10r/min
Rated Voltage: 48V
Max Torque: 40N.m
Overcurrent Protection: 15±1A
Low-Voltage Protection: 30±1V
Kwh: ≤1.2Kw.h
Modes: 5 levels
Tire Diameter: 20 inch
Frame: 20 inch 6061 Al-Alloy Foldable
Front Fork: 20 inch 6061 Al-Alloy
1. Grab the seat post
(important) and loosen
the clasp.
2. Push the seat post
towards the ground
slowly, tighten the seat
post clamp after
reaching your desired
height
5. Release the lock
clamp, fold the head
tube.
6. Fold the pedal by pushing
it level.
20
1 Saddle
19
2 Rear Reflector
18
3 Seat Post Battery
4 Seat Post Clamp
5 Rear Wheel
6 Rear Disc
17
Brake
7 Motor
8 Chain
9 Controller
10 Power Interface
11 Chain Wheel
12 Folding Pedal
13 Frame
16
14 Front Wheel
15 Front Disc
Brake
15
16 Front Fork
17 Folding Head Stem
18 Handlebar
19 Brake Lever
14
20 LCD Display
21 Charging Port
22 Folder
23 Derailleur
Brakes: 160mm disc brakes
Rim: 20 inch Al-Alloy 12G36H
Tire: CST 20*2.4 / Innova 20*4.25
Chain wheel: Prowheel 52T
Free Wheel: Shimano 14-28T
Derailleur: Shimano 7 speed
Chain: KMC
Handle Bar: Promax
Display: Kunteng LCD
Controller: Kunteng sine wave FOC
Brake Levers: Al-Alloy E-Bike Lever
Saddle: KNUS
Pedal: Foldable Pedals
3. Loosen the handle
bar clamp.
4. Turn the handlebar
clockwise till vertical ,tighten
the clamp.
7. Release the safety cap.
8. Pull the lock bar ,fold
the main tube.
