Summary of Contents for Scootmobiel TTX-2W

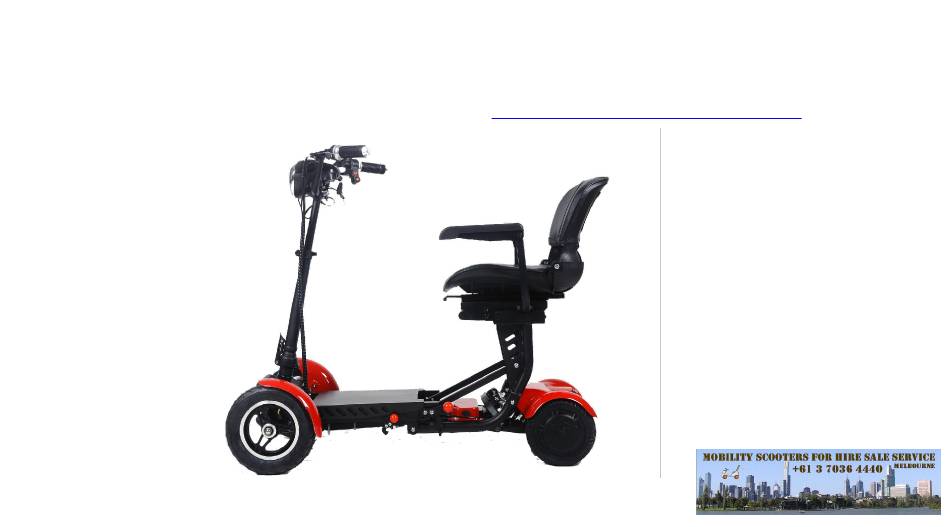

- Page 1 TTX-2W Four-wheel lithium battery folding vehicle user manual (Big chair model ) Back to Scootmobiel TTX2W webpage Environment Safety Effort...
-
Page 2: Welcome To Use
Welcome to use Thank you for choosing TTX-2W four-wheel lithium battery folding bike .(Big chair model ) (hereinafter referred to as TTX-2W). TTX-2W is a smart and lightweight folding four-wheeled travel tool. The four-wheel design structure is stable and suitable for different age groups. - Page 3 When driving, it is forbidden to leave the steering handle with both hands. It is forbidden to support the body on the steering handle. It is forbidden to leave the foot pedal during driving.。 It is forbidden to arbitrarily modify the parts of the TTX-2W and drive the modified TTX-2W on the road, which will affect the performance of the TTX-2W and even damage the TTX-2W.
-
Page 4: Safety Instructions
Do not lend the TTX-2W to someone who does not operate it to avoid injury. Please be responsible for the safety of your friends. Please read this manual carefully before giving TTX-2W to your friends. -
Page 5: Learning To Drive
5. After use, please charge according to the remaining battery capacity. The maximum speed of TTX-2W is up to 18km/h, and the turning radius is limited. If you make a sharp turn under the condition of not high speed, the center of gravity will become unstable if you change the direction significantly, which will lead to the overturning of TTX- 2W and other risks such as falls. -
Page 6: Folding And Unfolding Steps
After folding, you can pull the TTX-2W direction bar to tow it. If you need to put it in the car or transport it, you can open the quick release handle of the direction bar and rotate the loose nut to adjust to the lowest height.。... - Page 7 Steering bar and child seat adjustment Steering bar height adjustment Seat installation and removal Installation: Pick up the seat, first insert the slot behind the seat into the bracket behind the seat, pull the bar under the seat, and insert the groove in First open the quick release handle and rotate the loose the front of the seat into the bracket in front of the nut.
-
Page 8: Function Diagram
Function diagram speed down Speed up Turn the speed control handle, turn the handle on the right hand, LCD instrument assembly, lock, LED headlights and adjust the acceleration and deceleration according to the and power display. direction shown in the figure. Three-speed shift switch, I, II, III three gears Insert the key clockwise to turn on the power switch respectively correspond to 6/12/18km / h. -
Page 9: Charging Method
In order to ensure the safety of transportation, the TTX-2W battery pack is not fully charged. Due to the self-consumption of electricity during the transportation and storage cycle, it may cause low or no power when first used. This is normal. Don't worry. Charge according to the charging method. - Page 10 Pay attention to prevent liquid and metal particles from entering into the charger, prevent falling and impact, so as to avoid damage. Back to Scootmobiel TTX2W webpage...
-
Page 11: Electrical Schematic Diagram
Electrical Schematic Diagram brake lever... -
Page 12: Technical Data Sheet
*Actual product size and weight may vary slightly due to different measurement methods, assembly tolerances and configurations. The data in this manual are for reference only. *The technical parameters of TTX -2W will vary from country to country, and the data in this manual are for reference only.For TTX-2W technical parameters, please refer to the information provided by the actual purchase office. -
Page 13: Maintenance
If you do not use the TTX-2W for a long time, please be sure to charge at least once a month to maintain the life of your battery pack. If it is not charged for a long time, it may cause the battery to be over-discharged and damaged.
Need help?
Do you have a question about the TTX-2W and is the answer not in the manual?
Questions and answers
can I make it go faster???
Yes, the Scootmobiel TTX-2W has a three-speed shift switch with settings I, II, and III, which correspond to speeds of 6 km/h, 12 km/h, and 18 km/h. You can make it go faster by shifting to a higher gear.
This answer is automatically generated
My scooter does not work after fully charging. Have no trouble shooting manual. Help!!!!
If your Scootmobiel TTX-2W is not working after fully charging, consider the following possible reasons:
1. Battery Overcharge or Damage – If the battery was charged for more than 10 hours, it may have been damaged, affecting its performance.
2. Charger Issue – Ensure you used the correct charger and that the charging process was completed properly (indicator light turning from red to green).
3. Power Switch Not Turned On – Insert the key into the power switch lock and turn it to the "ON" position to activate the scooter.
4. Insufficient Battery Performance – Even if the indicator showed full charge, the battery pack may no longer hold a charge effectively.
5. Connection or Wiring Problems – Check if any wires or connections are loose or damaged.
6. Environmental Factors – If the scooter was exposed to extreme heat, the battery may have become ineffective.
7. Other Electrical Issues – If the battery and connections are fine, the scooter may have an internal electrical fault.
Try troubleshooting these potential causes. If the issue persists, professional inspection may be needed.
This answer is automatically generated
Do I take the covers off the wheels

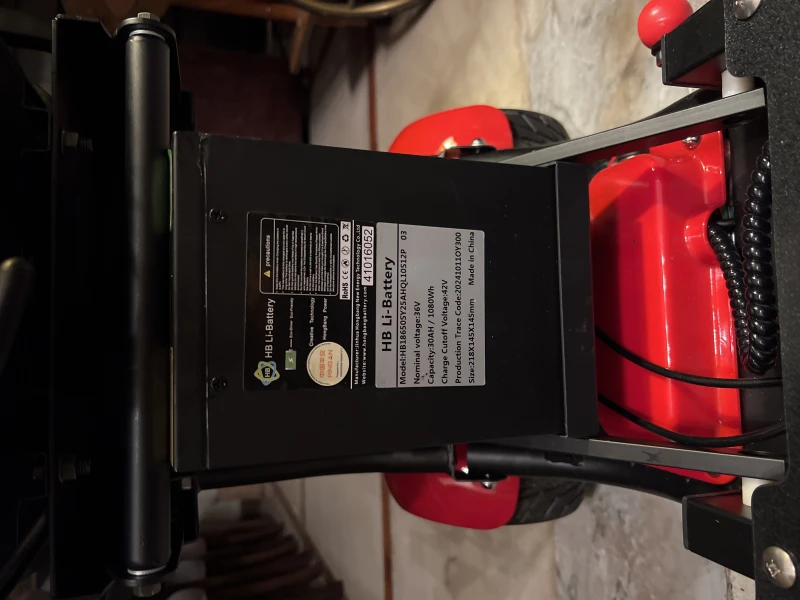

I purchase one and it come with a HB Li-Battery, 36 V capacity 30AH/1080Wh. My question is hot do I connect this battery?, which kind of cable/cord is needed?
