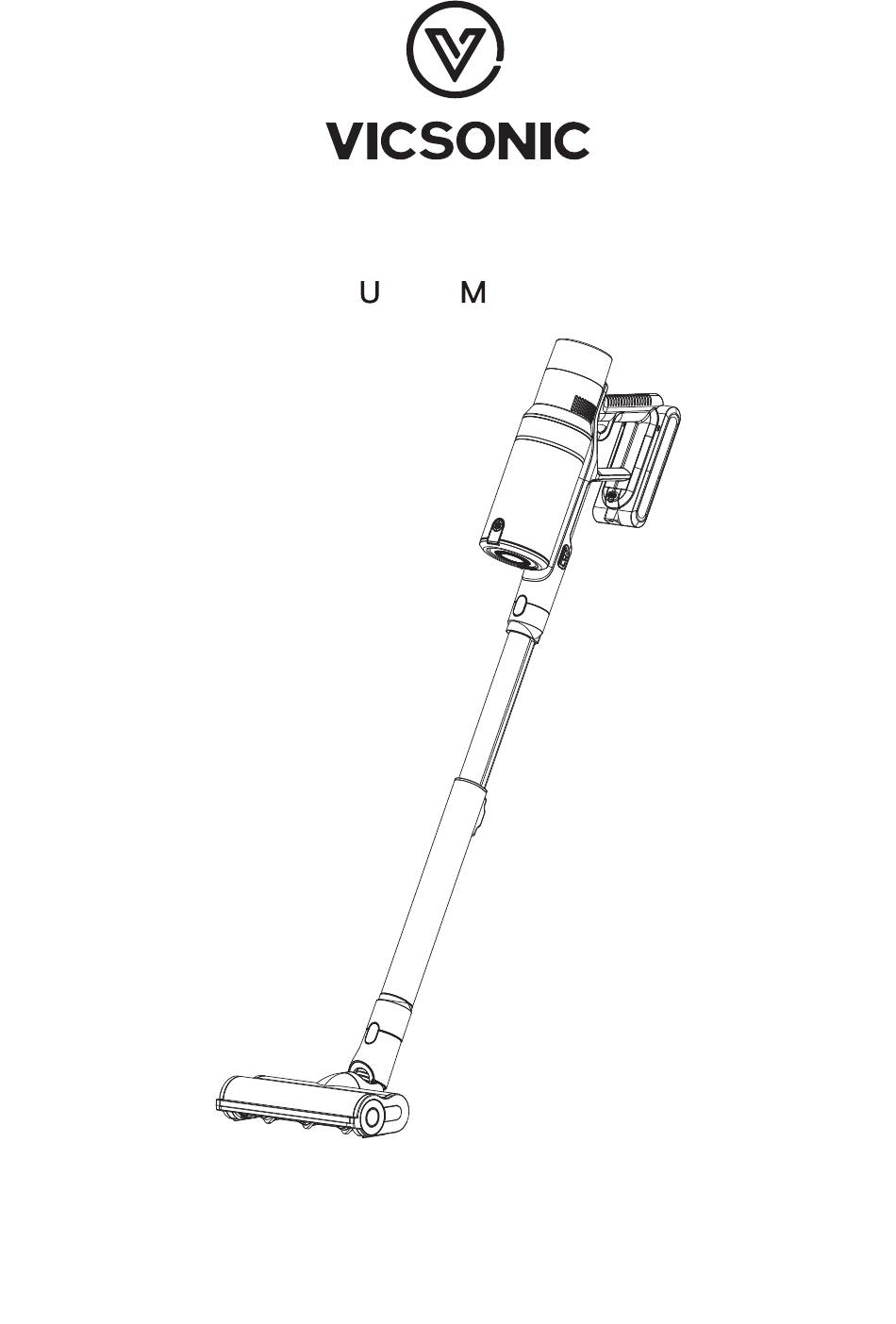

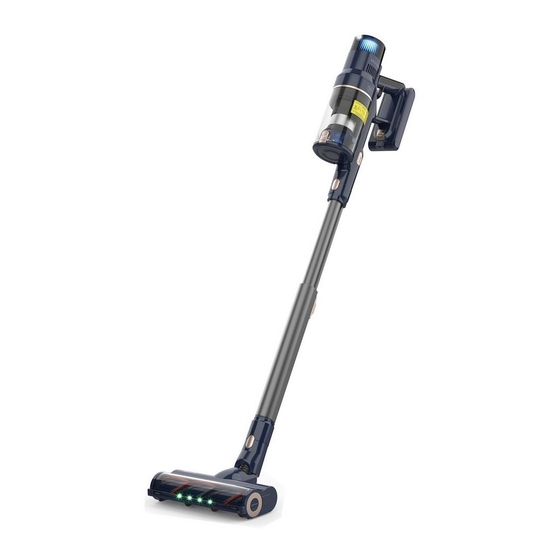

S7 Vacuum Cleaner
ser's
anual
·Please read this manual carefully before use.
·The company reserves the right to interpret the instructions.
·The appearance of the product is subject to the actual product.
·Please contact the invoice after reading-and keep it properly.
·In case of product technology or software upgrades, please forgive us without notice.
Advertisement
Table of Contents
Related Manuals for VICSONIC S7
Summary of Contents for VICSONIC S7
- Page 1 S7 Vacuum Cleaner ser's anual ·Please read this manual carefully before use. ·The company reserves the right to interpret the instructions. ·The appearance of the product is subject to the actual product. ·Please contact the invoice after reading-and keep it properly.
-
Page 2: Important Safety Instructions
Important safety instructions Please read all the contents of the manual carefully before using this product. 1. Please do not use the vacuum cleaner to suck detergent, kerosene, glass slag, needles, soot, wet dust, sewage, matches and other items. 2. Please do not use the vacuum cleaner to suck small particles such as cement, gypsum powder, wall powder, or large objects such as toy paper balls, otherwise it will cause the vacuum cleaner to block or the motor to burn out. 3. Please keep the vacuum cleaner away from fire sources and other high-temperature places. 4. When using the vacuum cleaner, please pay attention to install the filter assembly and the roller brush of the floor brush. 5. Please do not pour or splash water or other liquids into the machine, so as not to cause a short circuit and burn the machine. 6. When using a new battery or the battery used for the first time after long-term storage, please fully charge the battery. When storing and not using the machine for a long time, please ensure that it is charged and discharged at least once every three months. 7. When your vacuum cleaner is fully charged and needs cleaning or maintenance, please unplug the power adapter in time, and do not pull the power cord. 8. When cleaning the vacuum cleaner, use a dry cloth to wipe it, do not use gasoline, banana water and other cleaners that are easy to crack or fade the shell. 9. Please do not use or store the vacuum cleaner under unfavorable conditions such as high temperature and low temperature. It is recommended to use it indoors at ambient temperature (0-40℃). Please store it in a cool and dry place. Prolonged sunlight exposure is prohibited. 10. Do not let children use or play with this machine. 11. When the whole machine is fully charged and cannot work, you must go to the designated maintenance point for inspection and maintenance. Please do not ... - Page 3 Product component description Schematic diagram of vacuum cleaner parts 1. Dust indicator 2. Air outlet 3. Dust collection cup 4. Dust cup open button 5. Take over the tube 6. Electric floor brush 7. LED display module 7a. Power display bar 7b. Battery/alarm display 7c. Manual downshift touch button 7d. Self/manual switch button 7e. Manual upshift touch button 7f. Manual gear position indication 8. Handle 9. Switch button 10. Battery pack 11. Battery pack release button 12. Charging port 13. Dust cup release button...
- Page 4 Product component description Host Adapter Two-in-one brush suction Long flat suction Folding tube Sofa brush Electric floor brush Wall-mounted storage rack...
- Page 5 Instructions for use Precautions for product assembly: 1. Installation and removal it tightly; (3). When disassembling, press the corresponding release button and pull it outwards to 2. Battery pack installation and removal (1). Press the battery pack release button and pull it outward to remove the battery pack; (2).
- Page 6 Instructions for use Charging During the working process of the machine, when the power of the LED display module shows (1). Please use the charger that equipped with this machine for charging. (2). Disconnect the power, then plug the adapter into the charging. (3).
- Page 7 Instructions for use Instructions the host and accessories. After the machine is assembled, press the switch button to start the machine and start working, and press it again to shut down the machine. the 7d button in the power-on state to switch to manual gear. After switching, it defaults to low manual gear.
-
Page 8: Cleaning And Maintenance
Cleaning and maintenance Cleaning the dust cup: 2. As shown in Figure 4, align the bottom of the dust collection cup of the main unit with the trash can, and press the open button on the dust collection cup to collect the dust. The bottom cover of the cup opens automatically, gently shake to empty the dust in the dust collection cup, close the bottom cover and lock it tightly. - Page 9 Cleaning and maintenance 操作說明 3. It can be rinsed with clean water if necessary, and it must be completely dried before reinstalling it for use. Lock Picture 8 Picture 9...
-
Page 10: Common Malfunctions
Common malfunctions Important hint Malfunction Causes Solutions Please refer to the "Battery The vacuum cleaner won't start Charging" section of the Low battery manual for proper charging Please empty the trash in The dust cup is full the dust cup Please refer to the The vacuum cleaner has no or low suction power... -
Page 11: Fault Code Table
Common malfunctions Fault code table Blinking times of Fault Code Failures battery pack indicator Dust induction infrared probe needs to be cleaned in time Short circuit (overcurrent) protection has been triggered Ground brush stall protection has been triggered Battery pack over-temperature protection has been triggered The battery pack is too low and has been triggered... -
Page 12: Electrical Schematic Diagram
The main technical parameters Model Adaptor Voltage Input voltage Adaptor 480W Power Battery 7*2500mAh Charging time ≈ capacity 28-30kPa ≤65 dB Suction Noise 60-65 Min Level 6 Usage Time Filter Level Number of 130000 Motor Speed Filter Cones Dust Cup 1.2L (Including Filter Element) Four Cleaning Mode... - Page 13 7*24 hours Professional customer service online Email: vicsonic@163.com Official website: www.vicsonic.net 4.32kg 3.29kg...
