HV110-MCS

Creating Clean, Protecting Health

INDUSTRIAL VACUUMS

USER AND

MAINTENANCE

BOOK

www.crescentindustrial.co.uk/huuvan/

Table of Contents

Need help?

Do you have a question about the HV110-MCS and is the answer not in the manual?

Questions and answers

Summary of Contents for HUUVAN HV110-MCS

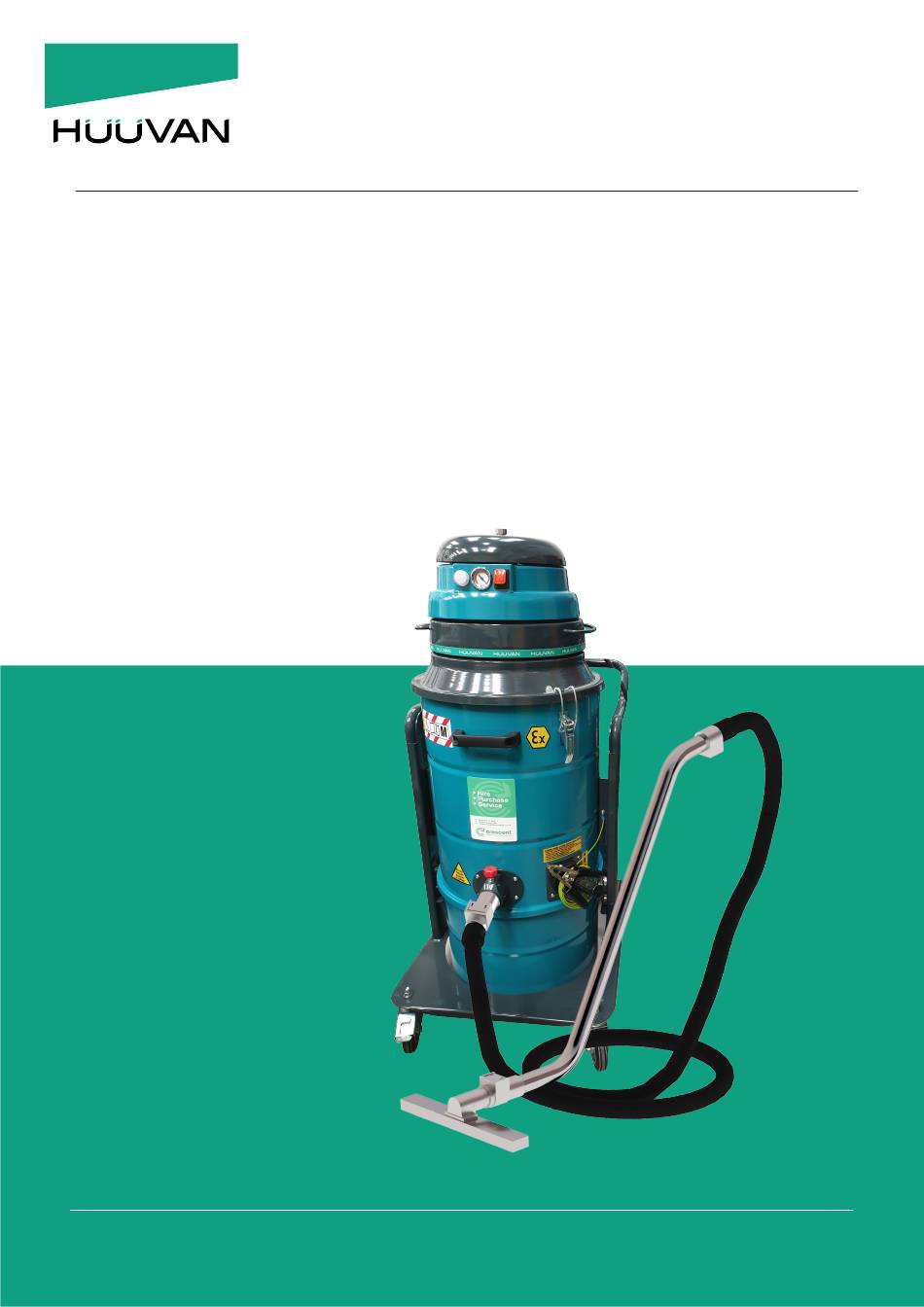

Page 1 HV110-MCS Creating Clean, Protecting Health INDUSTRIAL VACUUMS USER AND MAINTENANCE BOOK www.crescentindustrial.co.uk/huuvan/...
Page 2 This manual must always be readily available for consulta�on to the staﬀ opera�ng the HV110-MCS vacuum and to the operators’ in-charge of its maintenance. Therefore, it must be kept in a place accessible to all the above men�oned staﬀ/users.
Page 3: Table Of Contents
HV110-MCS Creating Clean, Protecting Health Information section Iden�ﬁca�on of main parts Accessories provided Iden�ﬁca�on details of manufacturer Marking plate Intended uses Allowed environmental condi�ons Noise level Storage Scrapping 1.10 Technical details 1.11 Warranty Safety section Safety details Safety warnings Safety plates and symbols Outstanding risks Applied direc�ves...
Page 4 HV110-MCS Creating Clean, Protecting Health 1.1 IDENTIFICATION OF MAIN PARTS 1) Release fastening 2) Motor head 3) Push handle 4) Suc�on point 5) Removable vacuumed material container 6) Castors 7) Filter chamber 8) Fixed wheels 9) Filter shaking lever www.crescentindustrial.co.uk...
Page 5: Accessories Provided
Remark: these ﬁlters must be checked every six months. If they have become worn, it will be necessary to replace them with new ones, which can be requested as spare parts from Huuvan. Huuvan will accept no responsibility when the use of NON-ORIGINAL ﬁlters are used.
Page 6: Iden�Fica�On Details Of Manufacturer
HV110-MCS Creating Clean, Protecting Health 1.3 IDENTIFICATION DETAILS OF MANUFACTURERS HUUVAN – Industrial Vacuum Cleaners Crescent Industrial Ltd Berrington House Berrington Road Leamington Spa CV31 1NB info@c-ind.co.uk www.crescentindustrial.co.uk 1.4 MARKING PLATE In compliance with the Machine Directive 2006/42/CE on vacuum cleaners, the machine is fitted with CE plates.
Page 7: Intended Uses
HV110-MCS Creating Clean, Protecting Health 1.5 INTENDED USES This par�cular model has been designed, constructed and equipped with safety devices for solid dust and debris vacuuming applica�ons only. The machine is provided with appropriate speciﬁc an�-sta�c ﬁlters to operate in explosive atmosphere areas (Zone 22 CLASSIFIED AREA, according ATEX 2014/34/EU Direc�ve).
Page 8: Technical Details
HV110-MCS Creating Clean, Protecting Health 1.10 TECHNICAL DETAILS HV110-MCS Power Voltage Volts Max. vacuums rate mm H 2.285 Max. air ﬂow rate Noise level dB(A) Filter type Polyester an�sta�c cat M Filter surface 20.000 Container Capacity Suction inlet Ø Dimensions 55 x 63 x H115 www.crescentindustrial.co.uk...
Page 9: Warranty
Creating Clean, Protecting Health 1.11 WARRANTY Huuvan guarantees this vacuum cleaner model for a period of 24 months from the date of purchase indicated on the tax document at the �me of delivery of the vacuum cleaner by the seller.
Page 10: Safety Details
Huuvan shall under no circumstances be deemed liable for accidents or damage caused by use of the vacuum cleaner by personnel not properly trained or who use it in an improper manner, as well as by even par�al failure to comply with the safety regula�ons and interven�on procedures indicated in this manual.
Page 11: Safety Warnings
HV110-MCS Creating Clean, Protecting Health 2.2 SAFETY PRECAUTIONS Warning! The instructions prescribed herein cannot preserve you from any danger in connection with the vacuum use and service. To prevent injury, it is necessary to operate with care and competence, relying on experience.
Page 12 The manufacturer will not be liable for any damage which may occur in connec�on with the use or service of vacuum supplied in case it is u�lised with tools or accessories that have not been provided by Huuvan. Without prejudice for the above, it is recommended to keep the machine construc�on complying with the safety standards prescribed by the 2006/42/CE Machine Direc�ve.
Page 13 Structural damages, modiﬁca�ons, improper changes or repair may aﬀect the vacuum safety and therefore annul the herein cer�ﬁca�on. Any modiﬁca�on required should be authorised and executed by Huuvan engineers only. During maintenance opera�ons it will be necessary to aﬃx a warning sign on the vacuum with the following indica�on: “MAINTENANCE, DO NOT START THE MACHINE”.
Page 14: Safety Plates And Symbols
HV110-MCS Creating Clean, Protecting Health 2.3 SAFETY PLATES AND SYMBOLS Plates with safety warnings and/or signs are applied on the vacuum. Caution! Ensure that all safety warning plates are readable. Wipe the plates with a damp cloth using water and detergents. Do not use any solvents, NAFTA or gasoline.
Page 15 HV110-MCS Creating Clean, Protecting Health Speciﬁc sign of conformity with the ATEX 2014/34/UE DIRECTIVE. CAUTION: this machine contains harmful vacuumed dust. Emptying operations, including the removal of the collection container after due waiting time must only be executed by qualified operators wearing the appropriate safety devices.
Page 16: Outstanding Risks
Accurate risk analysis carried out by the manufacturer and ﬁled in the technical documenta�on of reference, brought to the elimina�on of the majority of risks in connec�on with the use of the Huuvan vacuums. The manufacturer recommends all users to strictly follow the herein instruc�ons, procedures and warnings and to comply with all applicable laws and safety regula�ons, including u�lisa�on of the safety devices prescribed,...
Page 17: Handling
Once in use, the vacuum should be handled normally, riding it on its own wheels. Huuvan strongly discourages li�ing the vacuum using hoisters or forkli�s or other equipment. In case it is necessary to li� the vacuum for any reason, the ﬁnal user shall be responsible for this opera�on as the manufacturer will accept no liabili�es in connec�on thereto.
Page 18: Installa�On
HV110-MCS Creating Clean, Protecting Health 3.2 INSTALLATION Warning! Before proceeding with installation it is necessary to visually inspect the vacuum ﬁrst, checking for any damages which may have occurred during transportation. In case damages or faults are detected on one or more components, it will be necessary to suspend installa�on and no�fy the manufacturer about the failure.
Page 19 HV110-MCS Creating Clean, Protecting Health Fit the supplied pipe on the pipe union. Make sure the power supply corresponds to the voltage and frequency indicated on the vacuum cleaner plate. www.crescentindustrial.co.uk Warning! Do not ﬁt the plug in the power socket with wet hands.
Page 20: Descrip�On Of Controls
HV110-MCS Creating Clean, Protecting Health 4.1 DESCRIPTION OF CONTROLS 1) START/STOP bu�on 2) Blocked ﬁlter indicator 3) Vacuum meter www.crescentindustrial.co.uk...
Page 21: Work Cycle
HV110-MCS Creating Clean, Protecting Health 4.2 WORK CYCLE Caution! Ensure that power supply meets the voltage and frequency speciﬁcations as indicated on the vacuum marking plate and control panel. Caution! Operations permitted within Z22 class areas, with potentially explosive atmosphere.
Page 22 HV110-MCS Creating Clean, Protecting Health Warning! Before switching the vacuum cleaner back on, make sure the motors have come to a complete halt. A�er ﬁnishing work, disconnect the vacuum cleaner from the power socket.  Caution! Do not vacuum ﬂammable or incandescent substances.
Page 23: Releasing And Removing The Container
HV110-MCS Creating Clean, Protecting Health 4.3 RELEASING AND REMOVING THE REMOVABLE CONTAINER Stop the vacuum motors by turning the main switch on the “0” posi�on. Warning! Disconnect the plug from the power socket. Caution! Collection container release and withdrawal must only be executed in non-classiﬁed atmosphere, which means in an area with non-potentially explosive atmosphere.
Page 24: Using The Filter Shaking System
HV110-MCS Creating Clean, Protecting Health 4.4 USING THE FILTER SHAKING SYSTEM This opera�on must only be performed with the machine switched oﬀ once the motor has come to a complete halt. The ﬁlter shaking system is best operated every �me before use and a�er prolonged opera�on.
Page 25: Informa�Ve Notes
HV110-MCS Creating Clean, Protecting Health 5.1 INFORMATIVE NOTES Ordinary maintenance and checking opera�ons required to ensure the vacuum eﬃciency are described in this sec�on. Any interven�on, other than ordinary maintenance opera�ons described herein, which may be necessary to eliminate faults or failure must be expressly authorised by the manufacturer, to whom the user must apply always specifying the vacuum iden�ﬁca�on data.
Page 26 HV110-MCS Creating Clean, Protecting Health 5.3 MAINTENANCE OPERATIONS Caution! All the operations described here following must be executed after unplugging the machine. Before starting any maintenance or cleaning operation, wear the appropriate personal safety devices such as goggles, gloves and dust mask suitable to protect the operator from breathing particles of the substance to be vacuumed and to safely perform the work required.
Page 27: Maintenance Opera�Ons
HV110-MCS Creating Clean, Protecting Health Warning! To ensure the vacuum eﬃciency and safety, HUUVAN recommends a site visit by a Huuvan engineer or an overhaul at the Manufacturer’s technical service workshop every 24 months. Warning! In case of dust outflow from the engine, turn oﬀ the vacuum immediately and call the authorised service centre applying for assistance.
Page 28: Replacing The Filters
HV110-MCS Creating Clean, Protecting Health 5.4 REPLACING THE FILTERS To replace the ﬁlters, proceed as follows: Turn oﬀ the vacuum cleaner by pressing the motor STOP bu�ons.  Disconnect the vacuum cleaner plug from the power socket.  Important! Wear individual protection devices.
Page 29 HV110-MCS Creating Clean, Protecting Health Remove pin (A) and split-pin (B) that lock the ﬁlter on the shaking lever from under the vacuum  cleaner. Li� the complete support ﬁlter.  Loosen the clamp and remove the support ring with seal.
Page 30 Air leak Check for any air leaks out of closing fasteners, �ghtening screws, container or ﬁlter chamber Motor very noisy. Contact Huuvan Customer Support: 0845 33 77 695 Warning! For any other problems, contact the Huuvan after-sales helpline. www.crescentindustrial.co.uk...
