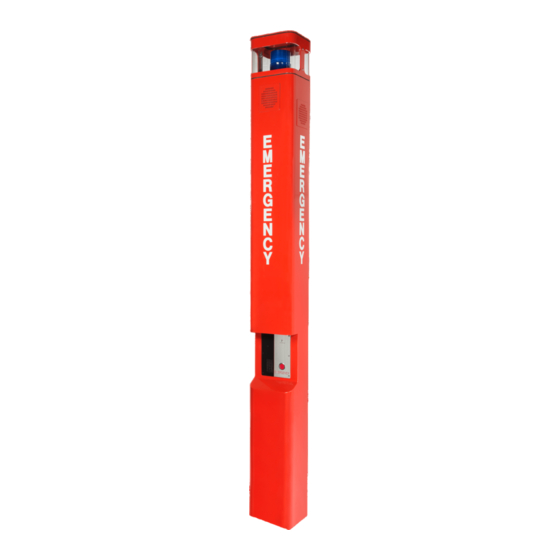

WEBS-MT/R Tower Installation Instructions
I. Introduction
This manual is for tower installation only. For instructions on installing the anchor bolts into the
foundation, see the ETP-MT/R Anchor Bolt Installation Instructions.
II. Contents
Before beginning installation, make sure you have all the included components. Each WEBS-MT/R tower
consists of the following packages. Package #1 contains the WEBS-MT/R tower itself. Package #2,
labeled MT/R BOLT KIT contains the anchor bolt install kit. Package #3, labeled TOWER PTS, contains
the tower hardware and lighting installation kit. Package #4, labeled WEBS-MT/R-KIT contains the WEBS
paging kit. Package #5, labeled WEBS-BACKUP (sold separately) contains the WEBS power back-up kit.
Emergency phones are sold and shipped separately (with mounting screws included).
MT/R BOLT KIT
QTY
4
1
TOWER PTS
QTY
8
8
3
2
1
1
1
WEBS-MT/R-KIT
QTY
4
1
1
1
1
4
4
4
3
1
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Part Number Description
42838 J-Bolts
26312 Cardboard Template
Part Number Description
42839 3/4"-10 Hex Nut
42840 3/4" Washer
42841 10-24 x 3/4" Pan Head Tamper-proof Screw
42843 6-32 Hex Nut
67478 Polycarbonate Light Cover
68590 LED Faceplate Light
LED Blue Light
Part Number Description
83075 WEBS Loudspeaker
NA Terminal Blocks on DIN rail
68605A Local Paging Microphone
68635 Paging Amplifier
WEBS-VCU WEBS-Volume Control Unit
19667 RCA Audio Cable
4247 8-32 x 1/2" Slotted Pan Head Screw
42847 8-32 Hex Nut
67475 Gel-filled wire nut
86394 Power Supply 12VDC (not included if WEBS-BACKUP is used)
