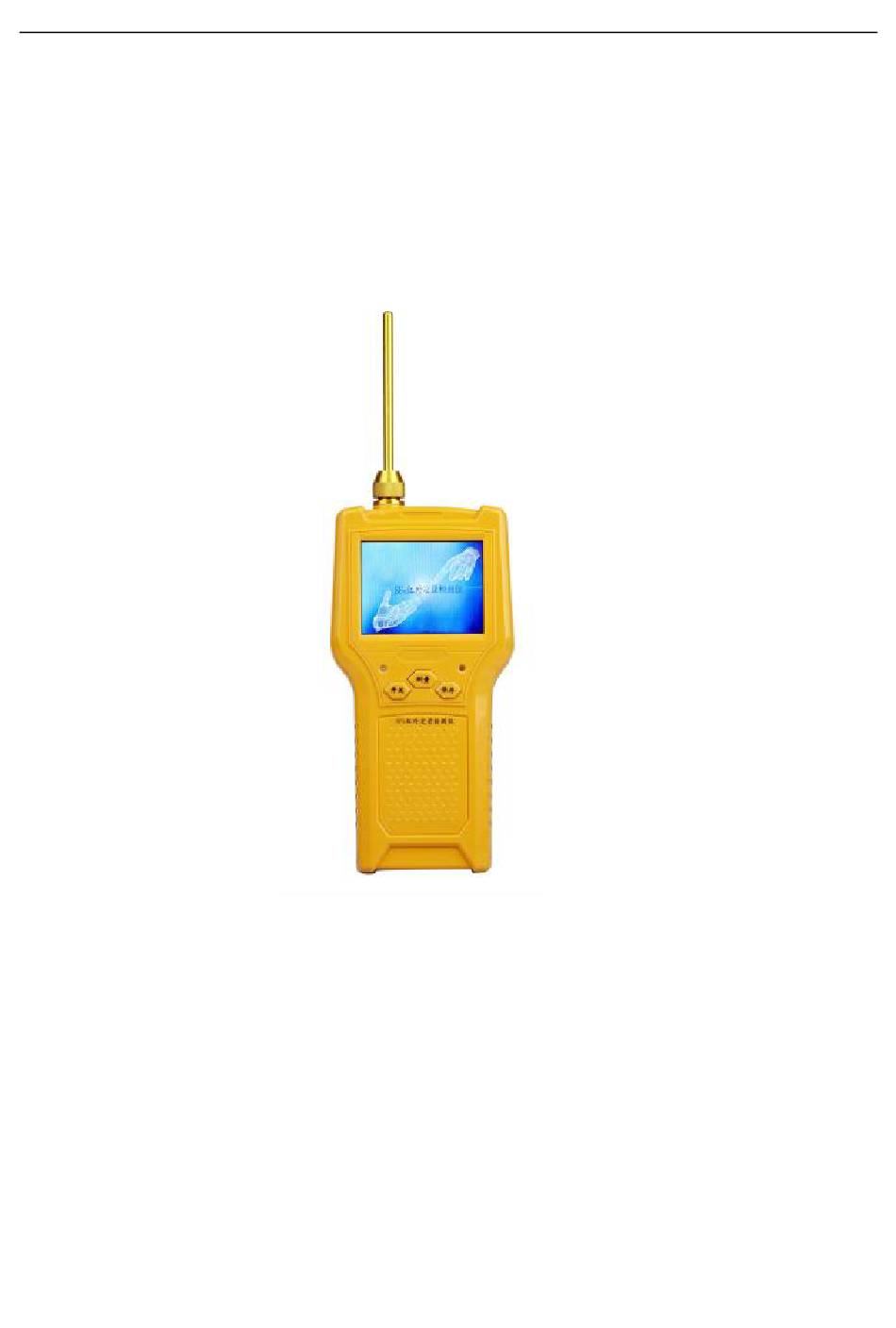

- Page 1 Huazheng Electric Manufacturing Co.,ltd HZTR-1000 infrared quantitative SF6 gas Leak detector...
- Page 2 Content 1. Summary ......................1 2.Technical data and founction ................3 3.User instruction ....................4 4.Shut down ......................8 5.Equipment calibration time and safty measures ..........7 6.The operator's requirements for using this device ..........8 7.After sale service and warranty ............... 9...
- Page 3 Terms and Conditions ※ You must read this manual carefully when operating this equipment. ※ The company shall not be liable for any damage or other damages resulting from negligence or failure to understand this manual. The text or illustration in the manual does not correspond to a 1:1 ratio.
- Page 4 HZTR-1000 SF6 infrared quantitative detector HZTR-1000 SF6 infrared quantitative detector uses high-speed embedded MCU, English touch human-machine interface, the operation is simple and clear. The sensor is based on the technical principle of the dual-wave non-dispersive infrared spectrometer (NDIR) imported from Germany.
- Page 5 2. Product features: ※ The first domestic company adopts infrared double spectrum principle to replace imported infrared detector; ※ With original wrist strap, one-handed operation. ※ The first flashlight function is convenient for on-site inspection under low light conditions. ※ It has special programs for anti-jamming on site and data protection functions; ※...
- Page 6 After 5 seconds, the display backlight is automatically extinguished, the left indicator light is on (bright on), and the side indicator is on. This is the standby state A shortcut key operation After the interface of Figure 2 appears after power on, press the measurement key and the interface in Figure 3 appears: Gas concentration SF6 sensor warming up for 90 seconds...
- Page 7 The ">, <" sign rotation changes appear on the interface, indicating that you can enter the measurement state, you can measure, after measuring a set of data, press the measurement key, the machine air pump stops, if you need to test the next data, press Measure the key, start the air pump in the machine and start the measurement again.
-
Page 8: System Program
After touching the screen, the screen is restored. Touch the measurement key: The measurement can be performed. The operation procedure is the same as the shortcut key measurement program. Touch the Settings button: The interface of Figure 6 appears: system program System calibration Working paramerter save setting... - Page 9 Power status A/D conversion value Battery volatge：7.9V Power supply volatge：7.9V volatge ： 0 V Battery tempreture：99℃ Firgue 7—1 Firgue 7—4 system status Measurement data query System temperature：27.4℃ Group storage data: System date： Measurement date： System time： Meaurement time： Measurement consentration： Firgue 7—2 Firgue 7—5 Peripheral state...
- Page 10 5. the equipment calibration and safety measures 1) The device need to be calibrated every two years 2) In order to guarantee the personal safety of the operator and the safety of the equipment, the provisions in the instructions must be followed. 3) This equipment is a special tool for detecting SF6 gas.
