Summary of Contents for Matsutek M790

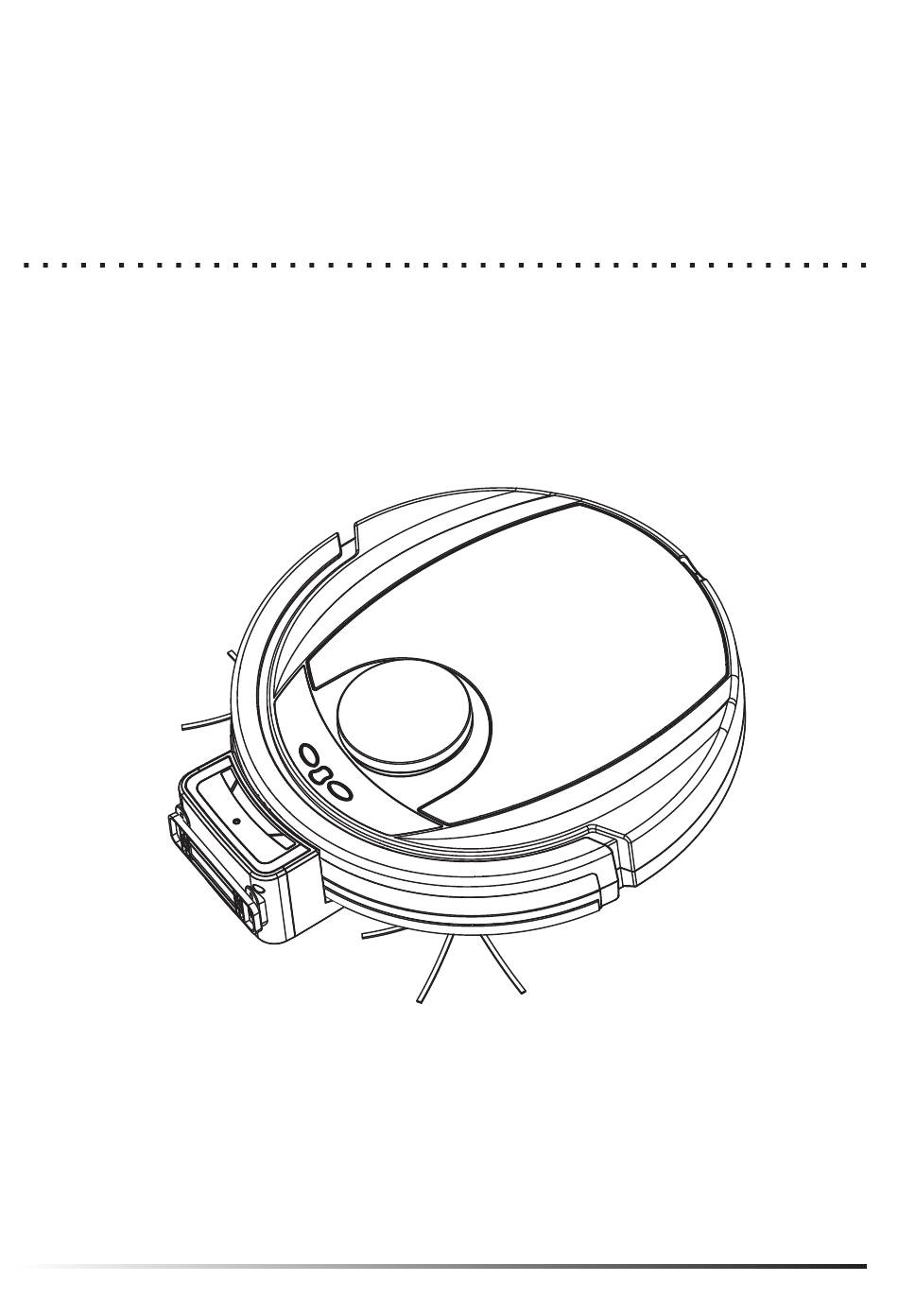

- Page 1 LDS Robotic Vacuum Cleaner with Docking Station Operation Manual M790 20200408...
-
Page 3: Table Of Contents
* SAFETY INSTRUCTIONS * WARNING * BATTERY AND RECHARGING INSTRUCTIONS SPECIAL FEATURES --------------------------------------------------------- 8 MAJOR COMPONENTS AND ATTACHMENTS ------------------------- 8 M790 OVERVIEW -------------------------------------------------------------- 9 INSTALLATION GUIDE ------------------------------------------------------ 10 * Installing and Removing Side Brush * Recharging Battery GENERAL OPERATION ----------------------------------------------------- 12... -
Page 4: Safety Instructions
M790 as it works and topple down the table, chairs, or cabinet and cause properly damage. 6. Never sit or stand on M790. Watch out for children or pets while M790 is in operation. 7. Never use M790 to clean up sparking cigarette butts or burning ashes from fireplace. - Page 5 11. Turn off the power and remove the battery from M790 if the unit will not in use for a long period of time. 12. This appliance can be used by children aged from...
-
Page 6: Safety Instructions * Warning
SAFETY INSTRUCTIONS WARNING: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio... - Page 7 SAFETY INSTRUCTIONS RF Exposure Warning: This Wireless LAN ( local area network)device has been evaluated under FCC Bulletin OET 65 and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF exposure from radio frequency devices.
-
Page 8: Battery And Recharging Instructions
6. Use only the battery supplied with your M790. 7. Charging adaptor is for indoors only. 8. The appliance is only to be used with the power supply unit provided with the appliance. - Page 9 Recharge M790 as soon as possible following use; waiting several days can damage the battery 15. If you plan not to use M790 over 6 months, please fully charge the battery, then turn off the power and remove the battery from the vacuum cleaner and store it separately.
-
Page 10: Special Features
SPECIAL FEATURES Congratulations on purchasing M790, the best LDS Robotic Vacuum Cleaner. M790 is a revolutionary LDS Robotic Vacuum Cleaner With Docking Station is equipped with an intelligent mapping system and powerful suction system for effectively cleaning your assigned cleaning tasks. M790 also supports APP control which can create the normal zones, prohibited zones, double clean zones, schedule, etc. -
Page 11: M790 Overview
M790 OVERVIEW Lidar Control Panel Power Indicator Bumper Contact Plates Front Small Wheel Contact Plates Battery Side Brush Side Brush Anti-Cliff Anti-Cliff Sensor Sensor Intake Valve & Brush Roll Wheel Cover Left and Right Speaker Wheels Heat Vent... -
Page 12: Installation Guide
INSTALLATION GUIDE Installing and Removing Side Brush: To install: Push the brush directly onto the holder.(Fig. 1) To remove: Hold two opposite sides of the brush as shown in Fig. 2, and evenly pull upward to remove the brush. PULL UP! Side brush PRESS holder... -
Page 13: Recharging Battery
4~6 hours. B. Auto charge: Put M790 in front of the docking station and be sure there is one-meter range free space, then press the docking button “ ” on the panel. M790 will automatically seek the docking station to charge. -
Page 14: General Operation
GENERAL OPERATION Preparation for Operation: 1. Install the side brushes and install the battery according to the manual. 2. Turn on the power switch under the top cover of unit and charge the battery for 4~6 hours prior to the first operation. Power Switch to ”... -
Page 15: Control Panel
GENERAL OPERATION Control Panel: Warning Indicator Wifi Indicator Power Indicator Spot clean Power Button Docking Button Control Panel: Description Button Power Button Turn on/Off, Start / Pause / Stop Cleaning Docking Button Start / Pause Docking Spot Clean Start cleaning in a 1.8M*1.8M area Indicator Description: Description Indicator... - Page 16 GENERAL OPERATION Start: Make sure the M790 is already charged onto the docking station with the adaptor plug-in then press the power button “ ” on the panel for 3 seconds to power on M790 and waiting for 20 seconds to complete the initiation process.
-
Page 17: App Download And Install
Please find VbotSmart APP in Google Play and APP store and install accordingly: Or scan the QR code below: Android To disable the Wifi function, please put the M790 unit onto the docking station, and press and hold both Power button “ ” and Docking button “... -
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE Maintenance Method: The operation and maintenance of the M790 is very simple. After each use, clean any dirt left behind on the dust bin and filter. It is not necessary to clean the intake after every use. - Page 19 CLEANING AND MAINTENANCE 3. Open the upper cover of the dust bin. Side buckle 4. Lift up and take out the filter. 5. Throw away the dust and dirt from the dust bin.
- Page 20 CLEANING AND MAINTENANCE 6. Rinse the dust bin with tap water and drain completely. It is not necessary to wash every time. Please do not put it into the washing machine to do the cleaning. 7. Periodically clean the filter with a soft bristle brush. 8.
-
Page 21: Cleaning Side Brushes
PULL UP! Cleaning Intake: After repeated use, dirt and dust can accumulate around the intake of the M790 and the working efficiency can be reduced. To ensure the best efficiency and constant airflow, the intake should be cleaned periodically. -
Page 22: Cleaning Brush Roll & Inlet
CLEANING AND MAINTENANCE Cleaning Brush Roll & Inlet: Removable VAC-SWEPT Removable VAC-SWEPT Put the brush roll back after cleaning. -
Page 23: Battery Installation And Removal
CLEANING AND MAINTENANCE Battery Installation and Removal: 1. Turn off the power switch before installing the battery. 2. The method of replacing battery: Loosing screws from the bottom case and disconnect the battery and install the new battery in the battery compartment with correct connection and screw it back to the bottom housing. -
Page 24: Trouble Shooting
TROUBLE SHOOTING Problem Possible Cause Solution 1. Install the battery 1. Battery is not installed Power switch on. according to the manual. correctly. Press power key but no 2. Charge the battery 2. Very low battery. LED display shown. according to the manual. 1. -
Page 25: Specifications
SPECIFICATIONS M790 Accessory Rating Voltage 10.95V Adaptor 20V/1.2A Docking Station Power 29Watt 20V/1.2A Li-ion Battery Type rechargeable battery Battery Capacity 5200mAh Charging time 4~6 hours Working time 120 +-/10min Operating temp 5℃~45℃ ≦80%RH Operating humidity ≦65dB Noise Weight Dimension 3.5kg... - Page 28 2.412-2.472GHz 4.6 dBi Single Transmitting Hereby, Matsutek, declares that this Robotic Vacuum Cleaner is in compliance with the essential requirements and other relevant provisions of RE Directive 2014/53/EU. The declaration of conformity may be consulted at the following internet address: https://www.matsutek.com/shop/declaration_of_conformity...
