Summary of Contents for Tilta Hydra Alien

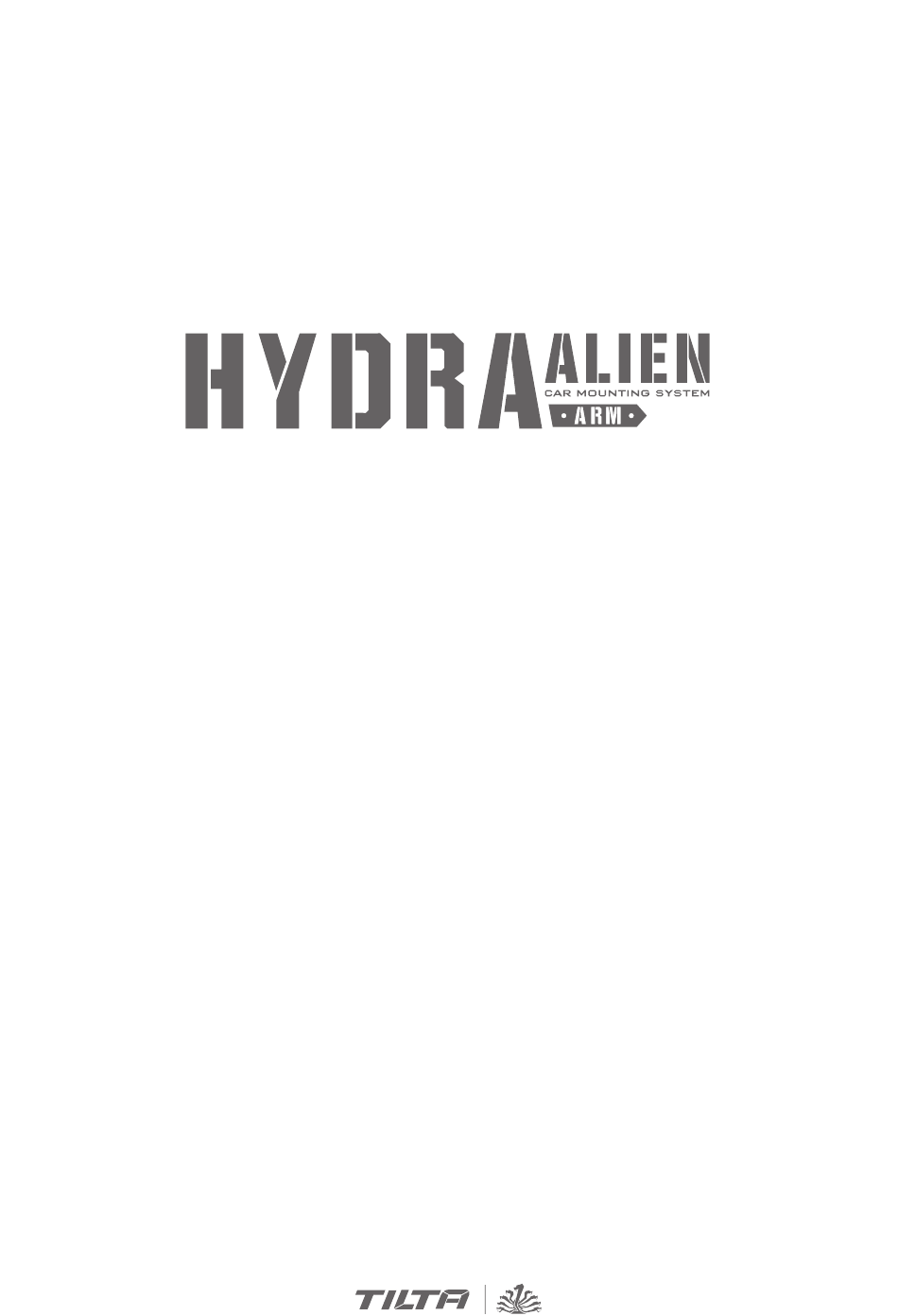

- Page 1 车拍轻便支架使用方式...
-
Page 2: Disclaimer And Warning
或间接使用本产品而造成的损坏、伤害以及任何法律责任不予负责。 www.tilta.com for the latest product information. 用户应遵循包括但不限于本文提及的所有安全指引。 Please do not carry out any unauthorized repair to Hydra Alien 一旦使用本产品， 即视为您已经仔细阅读免责声明与警告， 理解、 认可 Car Mounting System or change its mechanical structures.Any 和接受本声明全部条款和内容。 您承诺对使用本产品以及可能带来的... - Page 3 ALIEN ARM 认 识 INTRODUCTION OF ALIEN ARM 减震臂 减震头接驳件 Shock-absorbing head connector spring arm 供电模块 Power supply module 钢丝减震头 燕尾滑块固定旋钮 Steel wire shock absorbing head Dovetail sliding plate locking knob 如影S供电底座 Ronin S power supply baseplate 燕尾支撑板L2 Dovetail support plate L2 燕尾支撑板L1 Dovetail support plate L1 燕尾支撑板L3...
- Page 4 ALIEN ARM 了解 INTRODUCTION OF ALIEN ARM 弹簧 spring 力臂调节旋钮 减震头接驳件 spring arm tension adjustment knob Shock-absorbing head connector 线卡 cable clip 线卡孔 燕尾滑块固定旋钮 cable clip hole Dovetail sliding plate locking knob 十字交叉连接件 燕尾滑块 cross connecter dovetail sliding plate 安全销 safety pin 燕尾滑槽...
- Page 5 减震供电安装方式 支架吸盘安装方式 Install shock-absorbing power supply system Install suction disc platform 注： 安装吸盘时应先安装十字交叉连接件。 Note: Make sure the cross connector is installed before mounting the suction discs. 供电板装好锁扣卡紧 Install the battery plate,then pull the lever to lock. 将吸盘放在平滑位置连续按压抽空气阀直到活塞杆 上的白色圈置于在泵体内 ( 如果白色圈在短时间内回到泵体外说明有漏气现象需要及时检查） Mount the suction discs to a smooth surface,then press the suction valve until the white ring is covered by the valve.
- Page 6 安装方式 INSTALLATION 水平立装方式 Mounting horizontally 安装简单， 适合较平整的方位 例如车顶、 引擎盖、 尾箱等位置 Suitable for mounting on flat surface, e.g. car roof, car bonnet etc. 垂直低机位安装方式 Mounting vertically for low shooting angle 此安装方式搭配减震臂后具有良好的减震效果 Shock-absorbing arm is required in this position. 注： 若无需外部供电可将供电板拆卸替换配重砝码 Note: Power supply system can be removed for installing counterweights.
- Page 7 垂直支撑安装方式（无需减震臂） Mounting vertically without shock-absorbing arm 安装时燕尾支撑板L4保持水平状态 Install part L4 horizontally. 注： 安装好后锁紧燕尾滑块 Note: Make sure the sliding plate is fully fastened. 车头&车尾安装方式 Mounting on the front or rear of the car 安装燕尾支撑板L1最好保持垂直状态 此安装方式能在复杂的方位安装 例如车尾、 车头等 Keep part A vertical. This method is suitable when mounting in complex positions, such as the rear or front of the car.
- Page 8 引擎盖方式 MOUNTING ON CAR BONNET...
- Page 9 侧装低拍方式 MOUNTING SIDEWAYS AT LOW SHOOTING ANGLE...
- Page 10 侧装高拍方式 MOUNTING SIDEWAYS AT HIGH SHOOTING ANGLE...
- Page 11 车尾拍摄方式 SHOOTING FROM THE REAR OF THE CAR 轿车尾部安装...
- Page 12 车尾拍摄方式 SHOOTING FROM THE REAR OF THE CAR SUV尾部安装...
- Page 13 车头侧装拍摄方式 SHOOTING FROM THE FRONT SIDE OF THE CAR...
- Page 14 All copyrights belong to Tilta Technology Co. Ltd. Written permission is needed for any reproductions. Tilta has the right to adjust product specification without notice. All measurements are for reference only. Please see the actual products for more details. are registered trademarks owned by Tilta Technology Co., Ltd.
