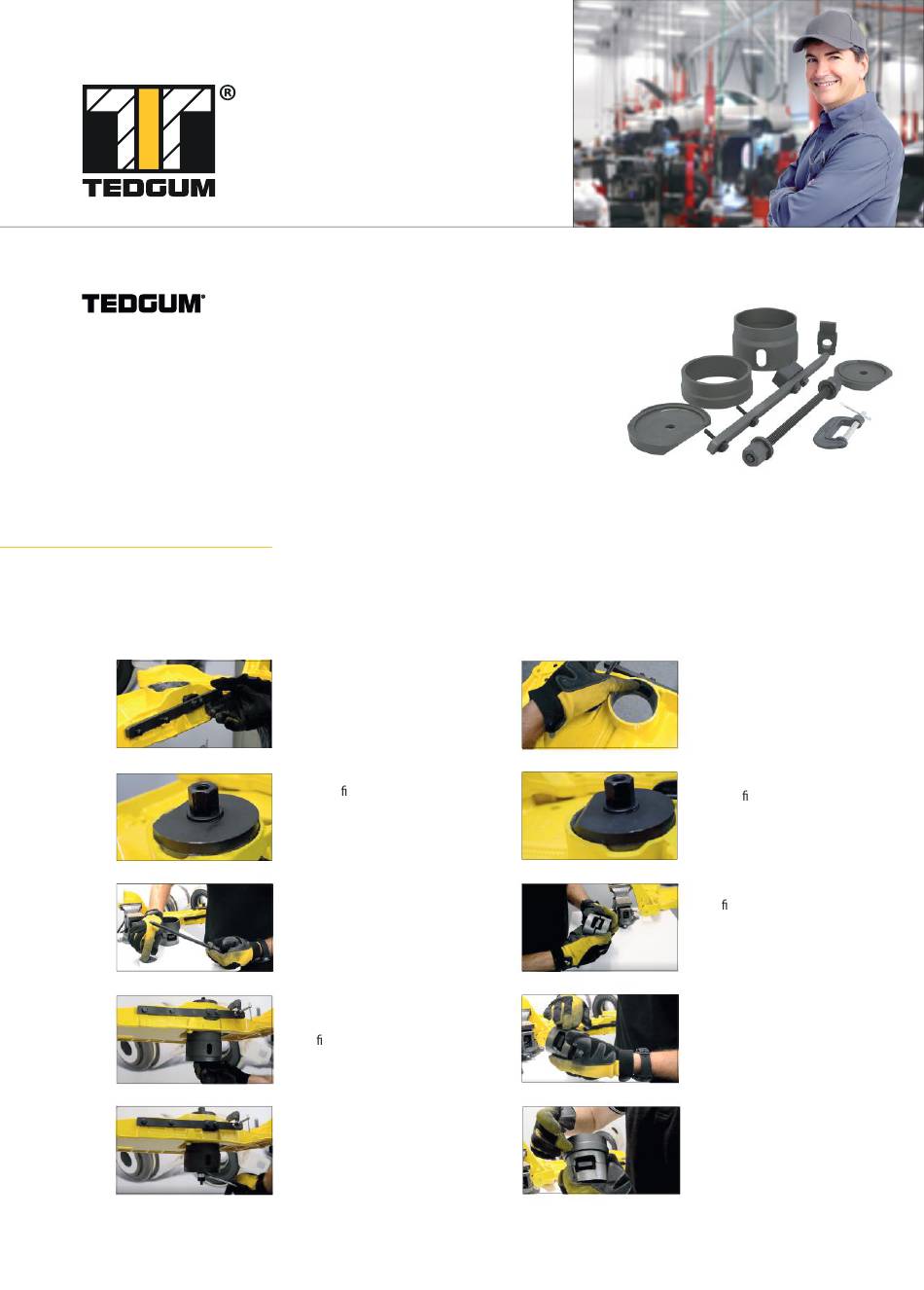

TEDGUM TED31041 Manual

Engine beam bushing replacement with
TED31041 puller

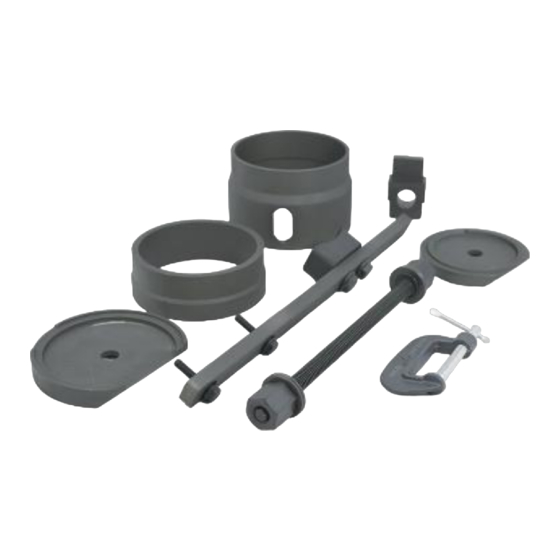

The puller enables correct dismounting and mounting of the
bushing directly on the car, without having to dismantle the engine
beam. Thanks to the trapezoidal thread, the puller is characterized by
high durability. To facilitate operation and ensure proper operation,
lubricate the bolt and bearings before each use.
Before starting work, disassemble the lower engine cover, rear
engine mount and unscrew the anti-roll bar mounting.
Below is the replacement process for the
00728427 VW bushing:
1
2
3
4
5
MANUAL
TEDGUM
Put the plug on the engine beam.
Put a smaller tting to press out
worn bushing. The indentation
should be in the position facing
the rear of the vehicle.
Mount the lead bolt. To prevent
friction during operation, lubricate
the bolt thread with the supplied
lubricant.
Mount a larger drive sleeve and
a larger tting together with a bolt
from the bottom of the engine beam.
Press out the worn bushings.
After removing it, clean the socket.
6
7
8
9
10
Align the position of the plug in the
hole and secure it additionally with
clamp - it is very important not to
damage the newly mounted bushing.
Put a larger tting on the upper part
of the beam. The notch should be
towards the rear of the vehicle.
Place a tting between the new
bushings, which holds both
elements in axis.
Lubricate with a neutral lubricant
new bushings and an engine beam
socket. Place the new bushings
in the smaller drive sleeve.
The hole in the bushes must be
in line with the mark on the drive sleeve.
