396-4519Y1

Sentinel NH3 Blockage Monitor

for ISOBUS

Installation and Setup

MAW

396-4519Y1 Sentinel NH3 Blockage Monitor

Revised 01/26/2022

Table of Contents

Need help?

Do you have a question about the Sentinel NH3 and is the answer not in the manual?

Questions and answers

Summary of Contents for SurePoint Sentinel NH3

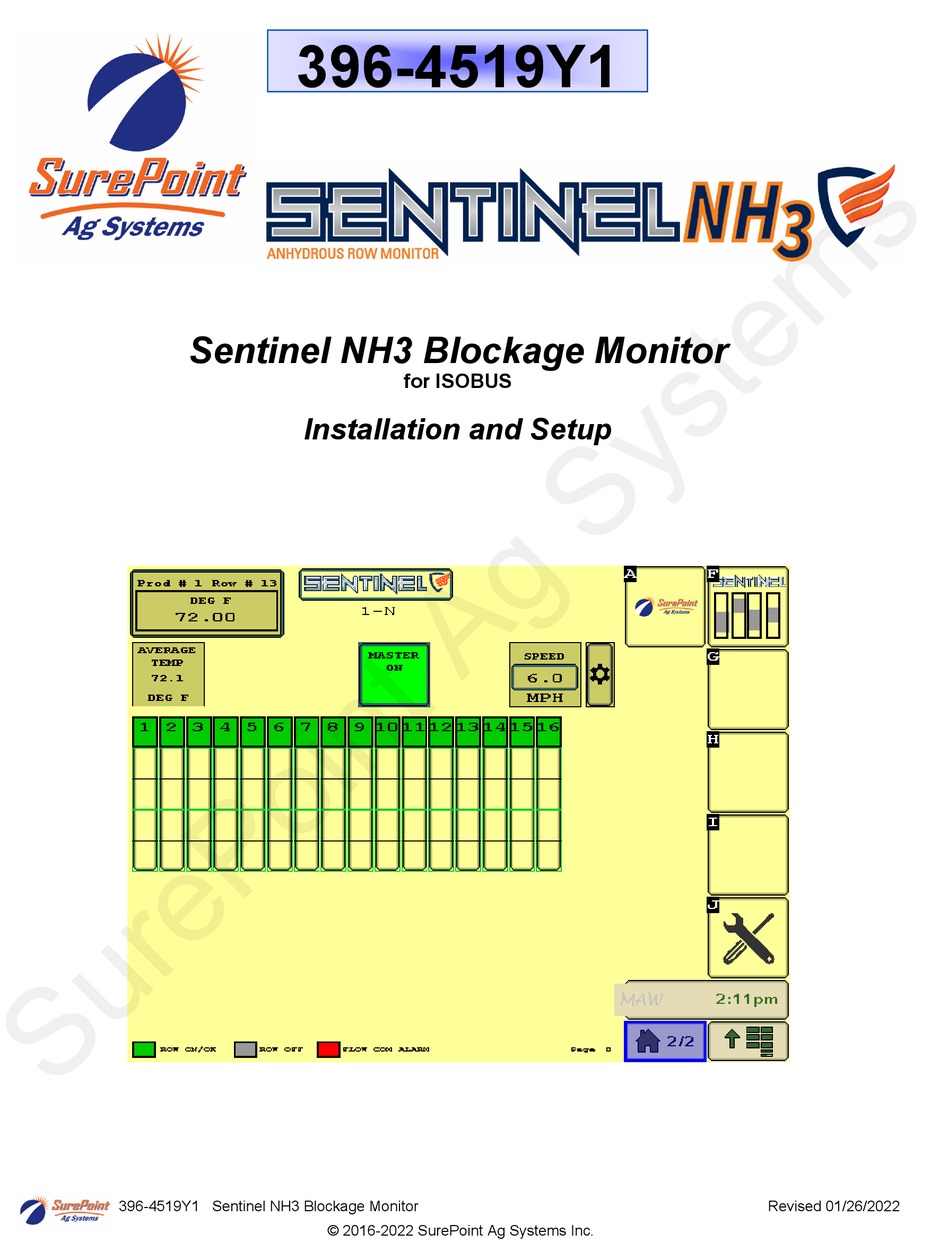

Page 1 396-4519Y1 Sentinel NH3 Blockage Monitor for ISOBUS Installation and Setup 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 3: Table Of Contents
Mounting Brackets.................... 31  ISO Extensions ....................31 Accessories  Height Switches ....................31  GPS Speed Receiver ..................31  3-Pin WP Extensions, Dust Caps ..............32 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 4: Anhydrous Ammonia Safety And General Information
Always remove device from service before performing any maintenance or repair. Have sufficient water nearby. Obey all local, state and federal laws regarding the handling of anhydrous ammonia. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 5 NH3 Safety class, do not work around NH3. If you have had the course, follow ALL safety precautions ALL the time. Be Careful ! 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 6 Check any hoses that have a low loop in them  Even after bleeding, slowly and cautiously loosen any fittings to be sure there is no ammonia trapped in- side. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 7 A closed container of liquid ammonia is in equilibrium with ammonia vapor and the container pressure bears a definite relationship to the temperature. Physical Data Boiling point is –28°F (-33º C). Ignition point is 1,204°F (651ºC). 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 8 After this precise metering the challenge of row distribution still awaits. The proper manifold system is important for row to row accuracy. The manifold can also be a cause of flow restrictions in high flow applications. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 9: Introduction
Your anhydrous system will continue to function as usual with application rates being regulated by your existing rate controller. The Sentinel NH3 works independently, monitoring the row-to-row accuracy of your system and alerting the operator of blocked rows. SurePoint currently supports Sentinel operating on the following displays: John Deere 2630 & 4640, Ag Leader InCommand 800 and 1200, Case IH Pro 700, Trimble Fm2050 and FMX1000.
Page 10: Introduction
Introduction SurePoint Sentinel NH3 Row Sensor Installation. NH3 Row Sensor 3” EVA Tubing Hose clamps 1. At the first NH3 manifold, disconnect the first NH3 line saving the hose clamp. 2. Use the included 3” piece of EVA tubing and connect it to the NH3 manifold hose barb.
Page 11: Harness Layout
SurePoint Harness Layout for Sentinel NH3 The SurePoint Temperature Interface module communicates with the Sentinel ECU Components through a proprietary communication network (CAN). The Sentinel ECU then, using the Wiring & Elec. ISOBUS communication protocol, relays information through the tractor ISOBUS and generates the user interface on the in-cab display.
Page 12: Component List
Component List The major components of a Sentinel NH3 System are: Components Wiring & Elec.  Sentinel NH3 ECU Wiring & Elec.  Sentinel NH3 harness  Temperature Interface Module  Line Sensors (1 per row)  3-Pin Weather Pack extensions...
Page 13 Last Row of Manifold 2 Daisy chain to Sensor Dust next row Row 1 First Row of Manifold 2 Last Row of Manifold 1 3-pin Weather Pack extension (206-03-XXXX) 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 14 Row 1 First Row of Manifold 3 Last Row of Manifold 2 Last Row of Manifold 1 3-pin Weather Pack extension (206-03-XXXX) First Row of Manifold 2 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 16: Harness Drawings
Components Wiring & Elec. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 20 Components Wiring & Elec. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 21: Temperature Interface Module And Temperature Sensor
A — Data B — Ground C — Handshake Test voltage: Pin A to B = 4-5v Pin B to C = less than 1v 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 22: Setup & Operation
12. Click on NH3 Module Diagnostics. 13. Ensure that all line sensors are plugged in and click Readdress NH3 Sensors. 14. Rate Setup– Leave at AUTO RATE for NH3 monitoring. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 23: Home Screen Navigation & Buttons
The SETTINGS button will be used to access the system configuration pages and to change individual product alarm, tolerance, and rate settings. (see next page) The MASTER ON/OFF button enables and disables the Sentinel NH3 system. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 ©...
Page 24: Settings
(this de- pends on the manifolds). Num Rows - Number of rows in each section Press More arrow. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 25: Implement Setup
A = distance from GPS Antenna to Hitch B = implement offset (Left or Right) C = distance from hitch to application point Section Timing not needed for NH3. BACK arrow. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 26: Speed Input
Check this box if not using Task Control. If using IntelliSection, you should also use a Lift Switch on the Sentinel. Go BACK. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 27: Alarm Setup
Sensor 2 does not turn on unless, Sensor 1 has turned on first be- cause of how the sensors daisy chain together. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 28: Rate Setup
Sentinel Setup and Configuration Setup & Setup & Rate Setup Operation Operation Rate Setup Screen For NH3 monitoring, leave the Rate set at AUTO RATE. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 29: Sentinel Operation (Home Screen, Alarm Screen, Row Detail)
The user < can toggle through the rows by touching the > buttons. The user can also pause the Auto Scrolling feature pressing the Pause Scan button. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 30: Sentinel Software Information
Setup & Operation Sentinel software information can be ac- cessed through most of the Sentinel screens by clicking on the SurePoint icon. In the rare instance that you need technical assistance, your SurePoint rep may ask for this information. My current software version:...
Page 31: Troubleshooting
If the next sensor turns green, then call SurePoint for sensor replacement.
Page 32: Sentinel Alarms Too Often
2. If none of the speed sources are working, a communication problem with the tractor may exist. Consult your tractor dealer or add a GPS speed receiver found in the Accessories section of this manual. 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022...
Page 33: Care & Maintenance
Winterization If injecting a nitrogen stabilizer, SurePoint recommends flushing your system by running at least one tank of NH3 without the nitrogen stabilizer to clean the system out. Pre-season Service (A little time spent here may prevent some downtime when you want to be rolling.)
Page 34: Sentinel Accessories
Part Number Description 501-100530 Magnetic Finger Type Height Switch 501-1005 Magnetic Mercury Switch GPS Speed Receiver Part Number Description 203-01-01410 Astro II with 3-pin MP 150 Shroud 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 35: 3-Pin Wp Extensions, Dust Caps
3-pin 40’ WP Extension Cable 206-03-11545 3-pin 45’ WP Extension Cable 206-03-11550 3-pin 50’ WP Extension Cable Dust Cap Part Number Description 374-3687Y1 3-Pin WP Dust Cap 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
Page 36 SurePoint Ag Systems 9904 Hwy 25 Atwood, KS 67730 www.surepointag.com 396-4519Y1 Sentinel NH3 Blockage Monitor Revised 01/26/2022 © 2016-2022 SurePoint Ag Systems Inc.
