Summary of Contents for Konnwei KW850

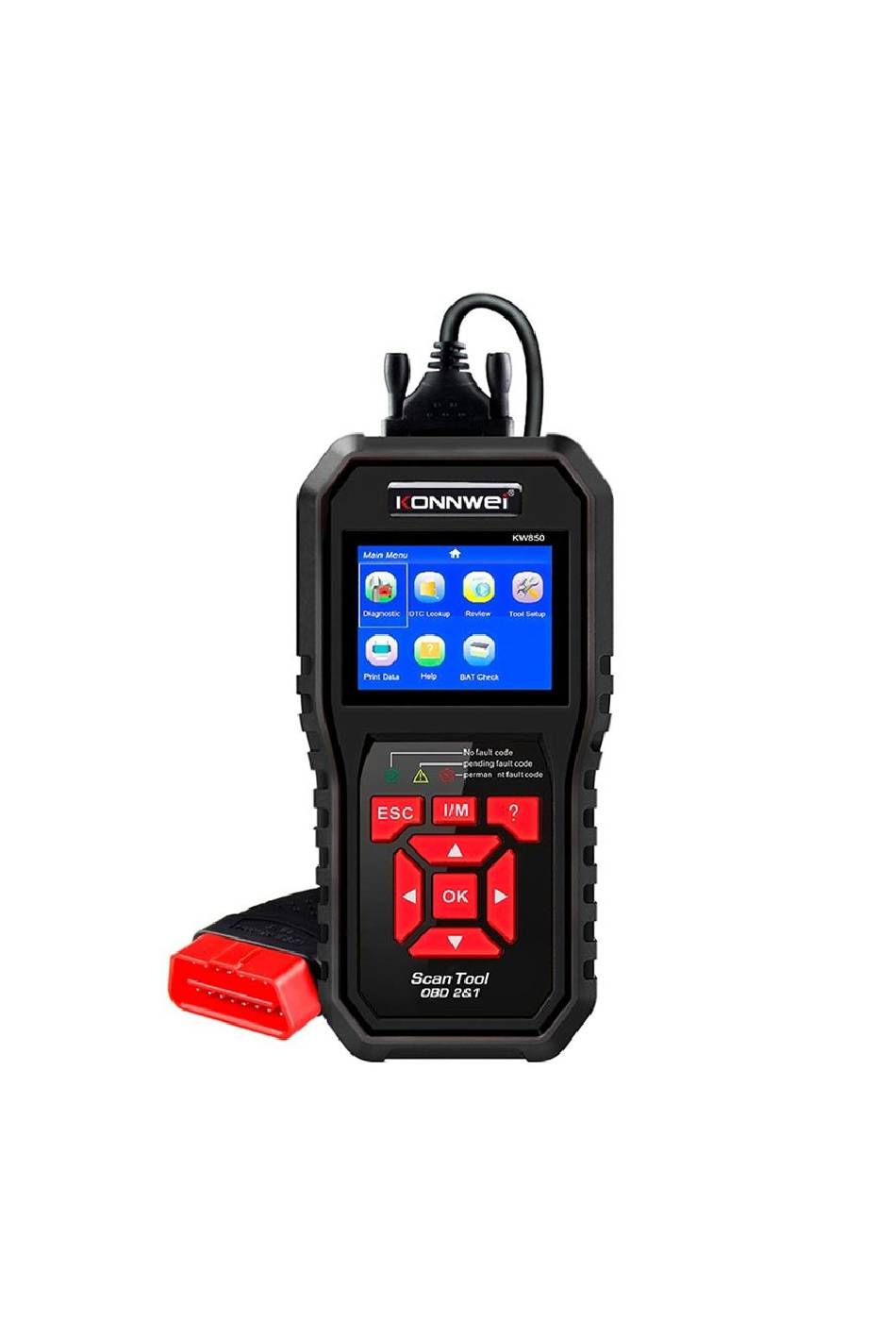

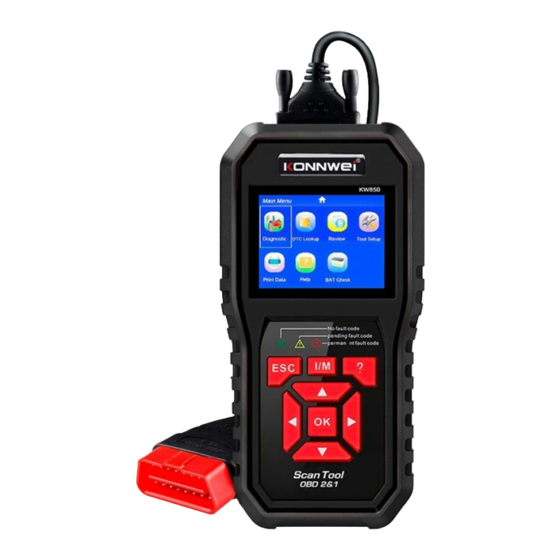

- Page 1 User Manual for Konnwei KW850 OBD2/EOBD Car Fault Diagnostic Tool...
- Page 2 Specifications Model: KW850 Supported languages: English, French, German, Dutch, Spanish, Russian, Portuguese, Italian Supported systems: XP, Win7, Win8, Win10 Dimensions: 5.59 x 5.08 x 2.67cm Weight: 0,750kg Tool description OBD II connector - Connects the scan tool to the vehicle’s Data Link Connector (DLC).
- Page 3 Tool setup Use the Up/Down and Left/Right scroll buttons to select the Tool Setup in the Main menu and press Ok. The screen will display the Tool setup interface as shown below: Select language: Select the desired language by pressing the Up/Down buttons and pressing Ok.
- Page 4 Operation 1. Turn the ignition off 2. Locate the vehicle’s 16-pin DLC 3. Plug the OBD II cable into the vehicle’s DLC 4. Turn on the ignition and the engine 5. After finishing, press the ESC button and you’ll get the main menu as shown below Diagnostic Use the Left/Right/Up/Down buttons to navigate to the Diagnostic in the Main...
- Page 5 Read Codes: If there are some codes they will be displayed here and you can view them. Erase Codes: To erase the codes follow the instructions shown on this display. Press the OK button after each step to go to the next one. I/M Readiness: I/M refers to Inspection and Maintenance and it indicates whether or not the various emission-related systems on the vehicle are operating properly.
