- Page 1 USER MANUAL MODEL: PBX-CAB-DOS Dosing Pump Cabinet English (Original Instructions) Updated: 03/25/21...
-
Page 2: Table Of Contents
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Table of Contents Overview ........................Mounting Cabinet Wall Mounting ....................Rail Mounting ..................... Installing Plumbing Industrial Plumbing Kit with Dosatron..............Industrial Plumbing Kit with MixRite 3.5............. Maintenance ......................Parts Callout...................... -
Page 3: Overview

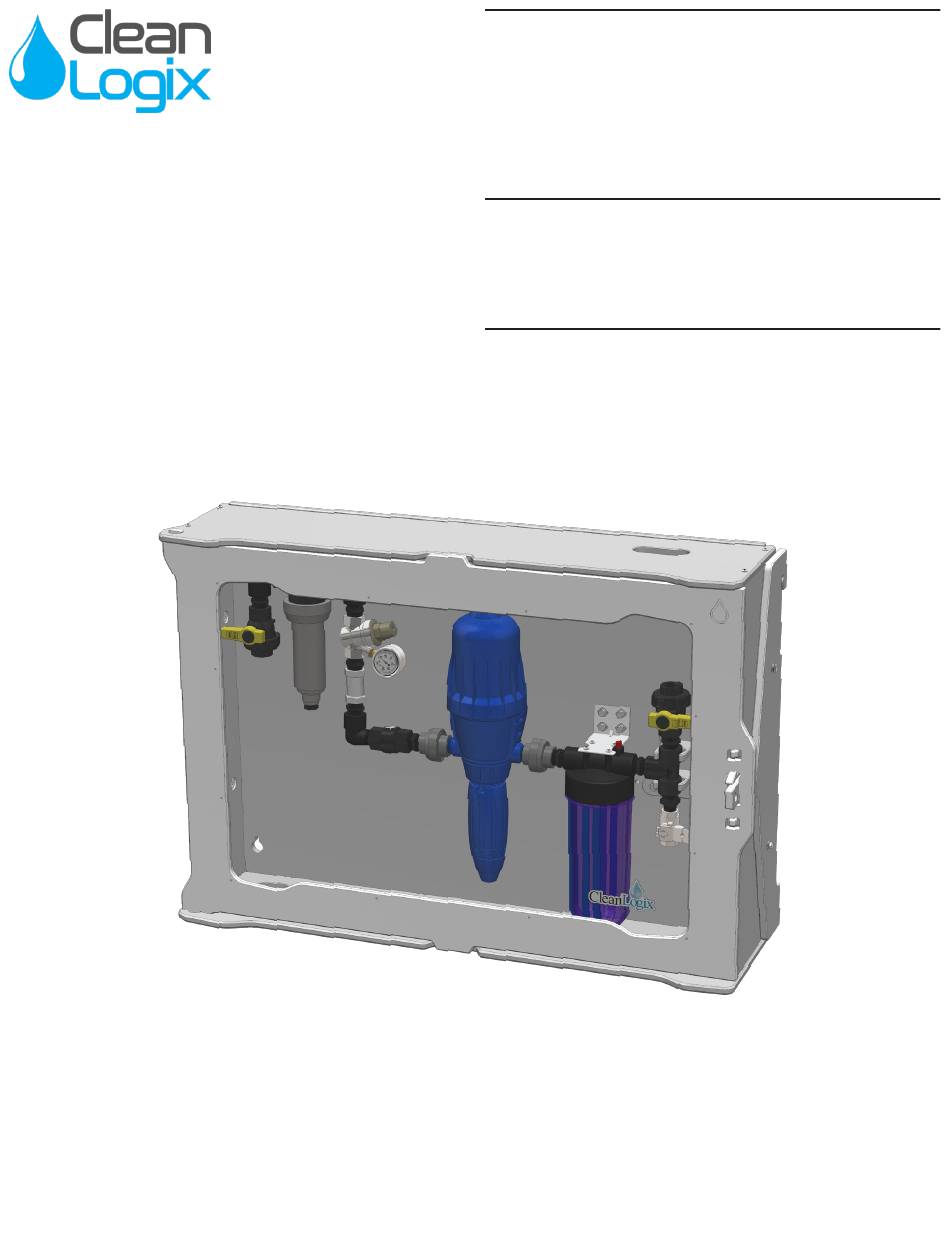

READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Overview The Pump Cabinet by Clean Logix provides users a safe and effective way to contain a variety of dosing pumps to protect users against spills, sprays and other unexpected occurrences that could be hazardous. -
Page 4: Wall Mounting
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Mounting Requirements The Dosing Pump Cabinet by Clean Logix can be mounted in 2 different ways depending on user preference. When determining mounting location and position consider the following: • Pump accessibility •... -
Page 5: Rail Mounting
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Mounting Requirements (continued) Rail Mounting 1. To install the Pump Cabinet on a wall mounted rail (sold separately) attach the rail to the wall using appropriate hardware (not included). 2. Attach the Pump Cabinet to the rail by hooking the rail supports to the top edge of the rail at a slight angle. -
Page 6: Industrial Plumbing Kit With Dosatron
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installing Pumps The PBX Cabinet has been designed to secure a variety of 14GPM dosing pumps, such as Dosatron® D14MZ and Dema® MixRite 3.5 pumps. Review the following sections for suggested installation methods for the pump to be installed. - Page 7 USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installing Pumps Industrial Plumbing Kit with Dosatron and Mixing Chamber #PBX-CAB-DOS-IPK34-MC PBX Dosing Cabinet Manual Page 7 of 13 Updated: 03/25/21...
-
Page 8: Industrial Plumbing Kit With Mixrite 3.5
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installing Pumps Industrial Plumbing Kit with MixRite 3.5 Due to their dimensional differences, Demo® MixRite 3.5 dosing pumps will require additional installation procedures to be properly mounted. Plastic spacers have been included with the cabinet to allow for this. - Page 9 USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installing Pumps (cont.) Industrial Plumbing Kit with MixRite 3.5 (cont.) 2. Remove pipe-tee clip and install spacer adapter as shown. 3. Install plumbing configuration as outlined below 4. If mixing chamber is included use the included spacer adapter to maintain proper clearance offset.
-
Page 10: Maintenance
• Check enclosure and pump mounting plate for cracks or damage. WARNING: Ensure pump is inactive and depressurized before servicing to avoid injury. More Information Please contact Clean Logix at: (616)-438-9200 or sales@clean-logix.com PBX Dosing Cabinet Manual Page 10 of 13 Updated: 03/25/21... -
Page 11: Parts Callout
USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Parts Callout PBX Dosing Cabinet Manual Page 11 of 13 Updated: 03/25/21... - Page 12 USER MANUAL: PBX-CAB-DOS READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Parts Callout mixing chamber without mixing chamber PBX Dosing Cabinet Manual Page 12 of 13 Updated: 03/25/21...
- Page 13 SCREW SHARX 10 X 1-1/4 PAN HD 316SS F1178 SCREW SHARX 10 X 1 PAN HD 316SS F1190 NUT BRAD TEE 1/4-20 SS More Information Please contact Clean Logix at: (616)-438-9200 or sales@clean-logix.com PBX Dosing Cabinet Manual Page 13 of 13 Updated: 03/25/21...
