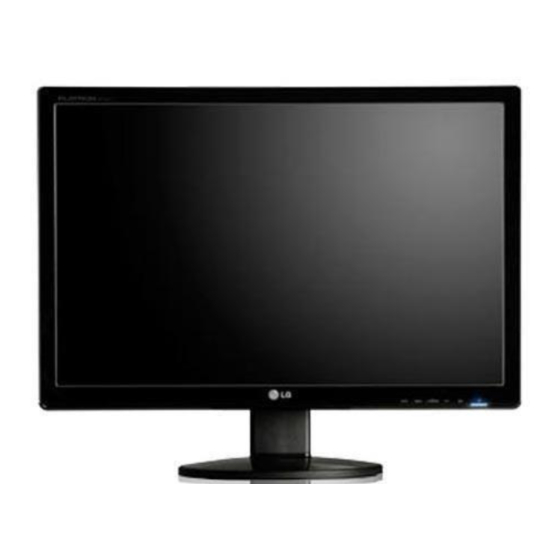

  5. W2241T - - 21.6" LCD Monitor
  6. User manual

LG W2241T User Manual

Lg w2241t: user guide
Hide thumbs Also See for W2241T:
Table of Contents

Advertisement

Quick Links

User's Guide
W2241T
M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W2241T and is the answer not in the manual?

Questions and answers

Larry
July 3, 2025

is there a camera on this monitor

0

Related Manuals for LG W2241T

Summary of Contents for LG W2241T

  • Page 1 User’s Guide W2241T ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth.

  • Page 5: Disassembling The Stand

    If you can't release the stand base even the locking knob is at a release position, Please push the indicated knob down and retry it. Pull out the stand to remove. Place the monitor face down on the cushion or soft cloth.

  • Page 6: Positioning Your Display

    Connecting the Display Pushing the PUSH button, take the stand base from stand body. Good Position Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort.

  • Page 7: Using The Computer

    NOTE ‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. ‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.

  • Page 8: Front Panel Controls

    Control Panel Functions Front Panel Controls Control 4:3 in Wide MENU Button Function To select the image size of the screen. WIDE * 4:3 : Depending on the input video signal ratio, it is automatically changed to an optimized screen ratio. Use this button to enter or exit the On Screen Display.
  • Page 9 (display mode). The best display mode is - 21.6 inch monitor : 1680 x 1050 Use this button to turn the display on or off. This Indicator lights up blue when the display operates normally(On Mode).

  • Page 10: Screen Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

  • Page 11: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu BRIGHTNESS PICTURE CONTRAST GAMMA COLOR PRESET GREEN BLUE HORIZONTAL VERTICAL CLOCK TRACKING PHASE SHARPNESS LANGUAGE SETUP POSITION VERTICAL WHITE BALANCE POWER INDICATOR FACTORY RESET...
  • Page 12 Press the MENU Button, then the main menu of the OSD appears. Main Menu MENU - + : Adjust (Decrease/Increase) Menu Name Icons NOTE OSD (On Screen Display) menu languages on the monitor may differ from the manual. : Exit : Enter : Select another sub-menu Button Tip Sub-menus...
  • Page 13 To adjust the brightness of the screen. To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma values display high contrast images. Select the screen color. PRESET •...
  • Page 14 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING TRACKING MENU : Exit : Decrease : Increase : Select another sub-menu Sub menu Description HORIZONTAL To move image left and right. VERTICAL To move image up and down. CLOCK To minimize any vertical bars or stripes visible on the screen background.
  • Page 15 POWER Use this function to set the power INDICATOR indicator on the front side of the monitor to ON or OFF. If you set OFF, it will go off. If you set ON at any time, the power indicator will automatically be turned on.
  • Page 16 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the of the monitor. Menu Name Icons Sub-menu Name Main menu Sub menu Description This feature lets you easily select the best desired MOVIE image condition optimized to the environment INTERNET (ambient illumination, image types etc).

  • Page 17: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears ● Is the power cord of the display connected? ● Is the power on and the power indicator blue or green? ● Is the power indicator amber? ●...

  • Page 18: Display Image Is Incorrect

    Troubleshooting Display image is incorrect ● Display Position is incorrect. ● On the screen background, vertical bars or stripes are visible. ● Any horizontal noise appearing in any image or characters are not clearly portrayed. Important Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed.

  • Page 19: Have You Installed The Display Driver

    Have you installed the display driver? ● Have you installed the display driver? ● Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.

  • Page 20: Specifications

    10 % to 80 % non-Condensing Temperature -20˚C to 60 ˚C Humidity 5 % to 90 % non-Condensing ), Detached ( O ) W2241T Without Stand 51.57 cm / 20.30 inches 34.46 cm / 13.57 inches 6.31 cm / 2.48 inches...

  • Page 21: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) Display Modes (Resolution) 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1680 x 1050 1680 x 1050 Indicator MODE...

  • Page 22: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the stand by pushing the PUSH button. Install the Wall mount plate.
  • Page 23 Digitally yours...
