Summary of Contents for Novacom CDCS ION

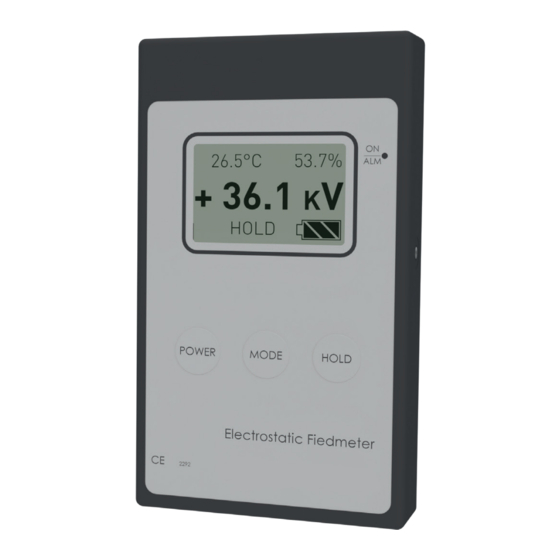

- Page 1 INSTRUCTIONS ELECTROSTATIC FIELD METER CDCS ION www.novacom-vacuum.com...
-
Page 2: Table Of Contents
0 ~ ± 200V <100 ms ± 5% ± 1,5 (RS485 optional CDCS ION communication function) WARNING In order to ensure a safe operation and achieve the best performance of the product, please follow the precautions and instructions of this manual. -
Page 3: Overview Of The Static Field Meter
1. OVERVIEW OF THE STATIC FIELD METER This static field meter is an instrument especially made for the detection of static electricity, but it can also be used for ion balance test. A new type of contactless surface sensor is used in the static field measurement, which can effectively detect the static electricity carried by objects such as plastics, chemical fiber, fur or human body. -
Page 4: Product Parameters And Instructions
4. PRODUCT PARAMETERS AND INSTRUCTIONS 4.1. PERFORMANCE PARAMETERS Electrostatic potential test mode: 0 - ±60kV Detection range Ion balance mode: 0 - ±200V 2 modes : Electrostatic potential test mode and ion balance mode (optional) Test mode <100ms Response time ±5% Measurement accuracy ±4.5%RH... -
Page 5: Mode And Detection Range
4.2. MODE AND DETECTION RANGE Number Detection mode Range Measurement error Electrostatic potential mode ±60000V ±5% Ion balance mode ±200V Note: The electrostatic potential mode depends on two infrared lamps focusing to calibrate the detection distance. 4.3. NETWORK PORT PIN DEFINITION Note : Number Colour... -
Page 6: Operation Method
4.4. OPERATION METHOD 1- Press the power button to turn on the measurer, the When starting up, press the power button for 3 seconds status indicator light is on, the green light indicator is on, and the back of the display screen will enlighten. Press the sound alarm rang once and the content is displayed the button for another 3 seconds and the background will on the screen. -
Page 7: Battery Replacement
5. BATTERY REPLACEMENT Sufficient battery Quite sufficient battery Weak battery Empty battery When the battery power is insufficient, the static field meter cannot start normally. When it is operating but the battery is low, the screen will flash and then turn off automatically. At that point, the battery needs to be replaced before the measurer can work properly again. -
Page 8: Communication Protocol
1. In order to ensure the good performance of the product, please store it in a dark and dry place when not in use, do not press it heavily. 2. The device is a precision detector, do not use strong vibration. 3. Do not immerse electronic equipment. www.novacom-vacuum.com...
