声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。

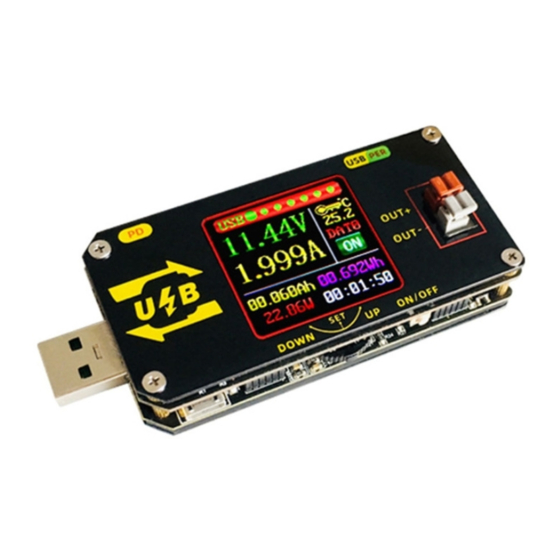

USB Color screen charging tester

Numerical control voltage Buck and boost power supply

Applicable model:XY-UMPD

Dear users, thank you for purchasing the USB color screen charging tester / USB

numerical control voltage Buck and boost power supply. In order to let you know all the

functions of this product faster, get a better use experience, and avoid misoperation,

please carefully read and keep this instruction before use, so that you can check it in the

future.

Need help?

Do you have a question about the XY-UMPD and is the answer not in the manual?

Questions and answers

Summary of Contents for USB XY-UMPD

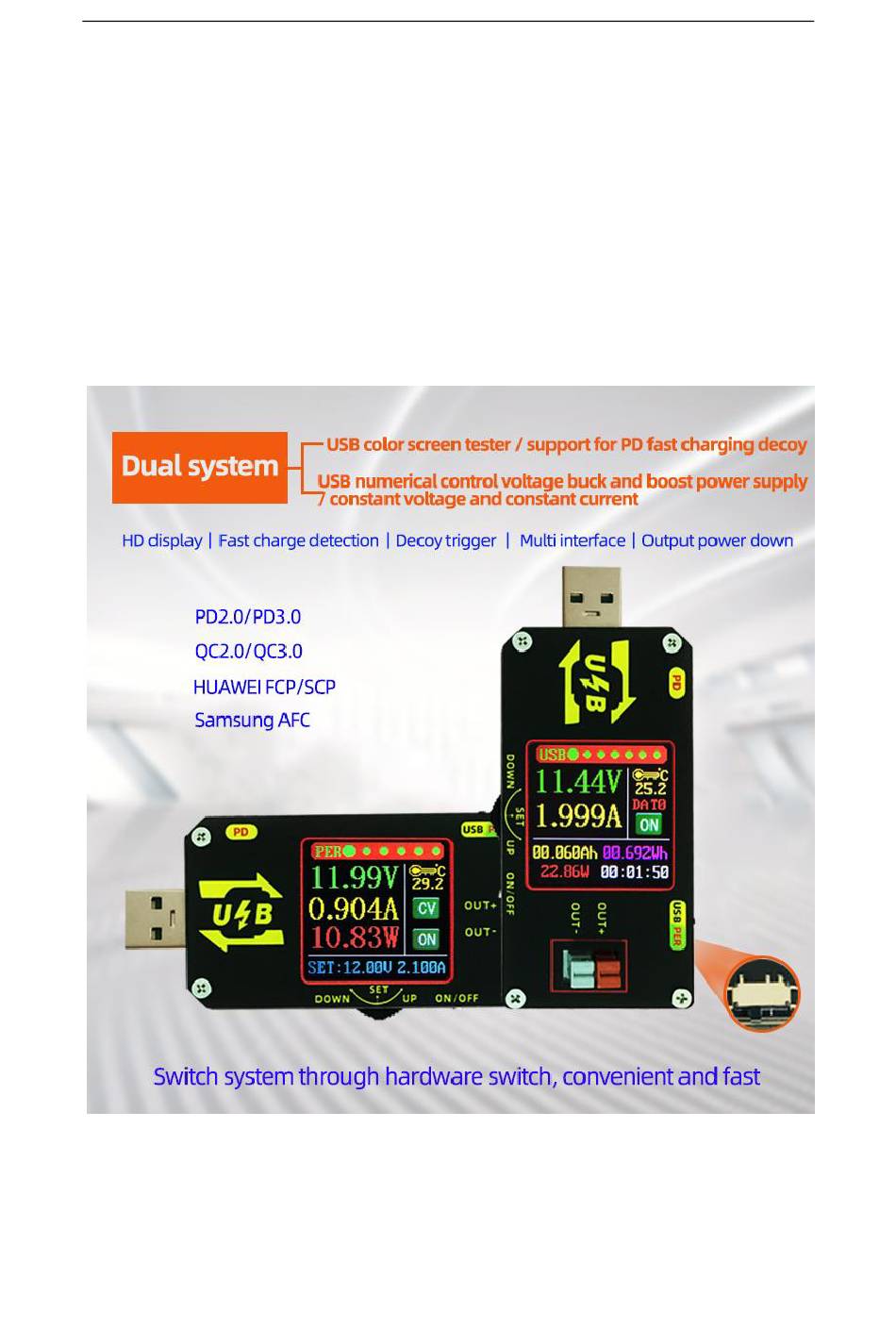

Page 1 Numerical control voltage Buck and boost power supply Applicable model:XY-UMPD Dear users, thank you for purchasing the USB color screen charging tester / USB numerical control voltage Buck and boost power supply. In order to let you know all the...
Page 2 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
Page 3 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
Page 4 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
Page 5 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
Page 6 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 USB power system (PER) application:...
Page 7 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 2. The product has constant current function, which can charge all kinds of small rechargeable batteries within 0.6V~30V within 10~20W; Charging steps: (1) Determine the floating charge voltage and charging current of your rechargeable battery; (if the parameter of lithium battery is 3.7V/2200mAh, the floating charge voltage is 4.2V;...
Page 8 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
Page 9 Details of interface and key functions USB tester system Short press the " ON/OFF " button to turn on and off the USB output, long press the " ON/OFF " button for 2 seconds, the screen can rotate, 360 ° four-way rotation.
Page 10 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 USB measurement main interface： Press the "set" key briefly, select "capacity / energy / time / data group" all, and the corresponding will be displayed in reverse blue after selecting all. Use the "up / down" key to switch the parameters to be cleared / set, and then press the "set" key briefly to clear / set the corresponding parameters;...
Page 11 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Quick charge identification interface: This interface 'set' button has no function Measurement curve interface:...
Page 12 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 This interface 'set' button has no function USB parameter setting interface: Press the "set" key briefly to activate the parameters to be set; Short press the "set" key to switch between parameter name and bit selection; After the parameter name is selected, the parameter name will be displayed in reverse blue, and the parameter to be set will be switched by pressing "up / down";...
Page 13 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Quick charge detection interface: Short press the 'set' button to start automatic detection, and the corresponding protocol will start flashing. After the detection, if it is supported, it will turn green, if it is not supported, it will turn red. Quick charge activation interface: Press the "set"...
Page 14 "set" to select "gear" to switch to other gears through "up / down"; Note: when the protocol is activated, please do not connect the output terminal with USB device, so as not to cause activation failure;...
Page 15 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 USB power system (per) Main power interface: Press the "set" key briefly to activate the parameter to be set (voltage / current); Short press "set" key to switch between full selection and bit selection; When all is selected, the blue display will be reversed, and the set voltage / current will be switched through the "up / down"...
Page 16 声明：本说明书著作权归青岛欣易云联电子科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Capacity recording interface: Press the "set" key briefly, and select "capacity / energy / time" for all. After selecting all, the corresponding parameters will be displayed in reverse blue. Press the "up / down" key to switch the parameters to be cleared. After selecting, press the "set" key briefly to clear the corresponding parameters.
Page 17 OHP and OAH functions can well realize timing / quantitative power supply。 The quick charge activation interface operates the same as the USB system. The operation of power system setting interface is the same as that of USB system setting interface.
