MSDSP66
STEP 1
DOWNLOAD MSDSP66 SOFTWARE FROM:
https://diamondaudio.com/6ch-ip7-waterproof-micro-
digital-signal-processor.html
Install the software and add to your desktop for easy
access.
STEP 2
Make power connections as follows:
• RED - 12V Constant Power
• BLACK - Negative Ground
• BLUE - Remote IN
• YELLOW - Remote OUT 3.5 Sec delay turn off
STEP 3
Make Input and Out Connections (see diagrams)
Once your High Level/Low Level Inputs have been
made propperly secure device free of any
obstructions.

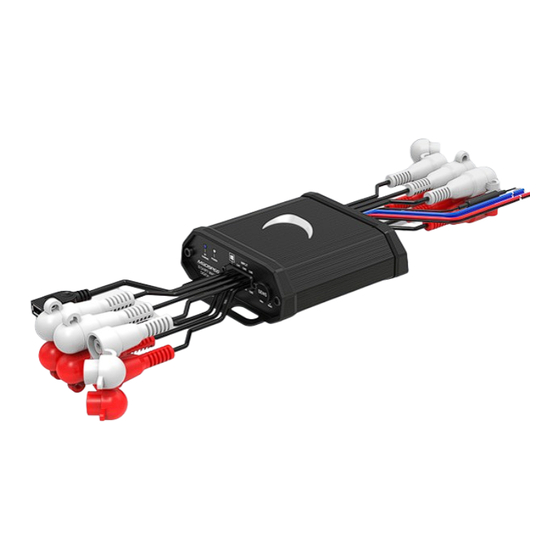

6 IN 6 OUT DIGITAL SIGNAL PROCESSOR
PRODUCT QUICK START GUIDE
PC USB Connection
Status Idicator
High/Low Input Harness
NEED HELP WITH YOUR INSTALLATION?
TECH SUPPORT 213-212-3182
Power Input
Low Level Output Harness
Advertisement
Table of Contents
Summary of Contents for Diamond Audio MSDSP66
- Page 1 6 IN 6 OUT DIGITAL SIGNAL PROCESSOR PRODUCT QUICK START GUIDE PC USB Connection Power Input STEP 1 Status Idicator DOWNLOAD MSDSP66 SOFTWARE FROM: https://diamondaudio.com/6ch-ip7-waterproof-micro- digital-signal-processor.html Install the software and add to your desktop for easy access. Low Level Output Harness...
- Page 2 MSDSP66 FLEXABLE INPUT CONFIGURATIONS The MSDSP66 can be utilized out-of-the-box with high level or low level inputs OEM HEAD UNIT AFTER MARKET HEAD UNIT SPEAKER LEVEL INPUT SPEAKER LEVEL INPUT LOW LEVEL OUTPUT SPEAKER LEVEL INPUTS LOW LEVEL OUTPUT LOW LEVEL INPUTS...
- Page 3 MSDSP66 6 IN 6 OUT DIGITAL SIGNAL PROCESSOR SOFTWARE FUNCTION 1. HARDWARE CONNECT 2. CHANNEL LEVEL CONTROL •CHANNEL LINK 3. CROSSOVER CONTROL SECTION •HP/LP TYPE,FREQ,SLOPE 4. GRAPHIC EQ SCREEN 5. EQ CONTROL •Q ADJUSTMENT •GAIN CONTROL 6. TIME ALIGNMENT...
- Page 4 MSDSP66 6 IN 6 OUT DIGITAL SIGNAL PROCESSOR SOFTWARE FUNCTION INPUT (IO) CONFIGURATION • SAVE SETTINGS TO SCREEN COMPUTER • LOAD SETTINGS TO •Use the IO Config Screen to map your inputs and outputs. • You can use 2ch up to 6ch of inputs to drive all outputs.
