Summary of Contents for Clean Logix CELL-115V

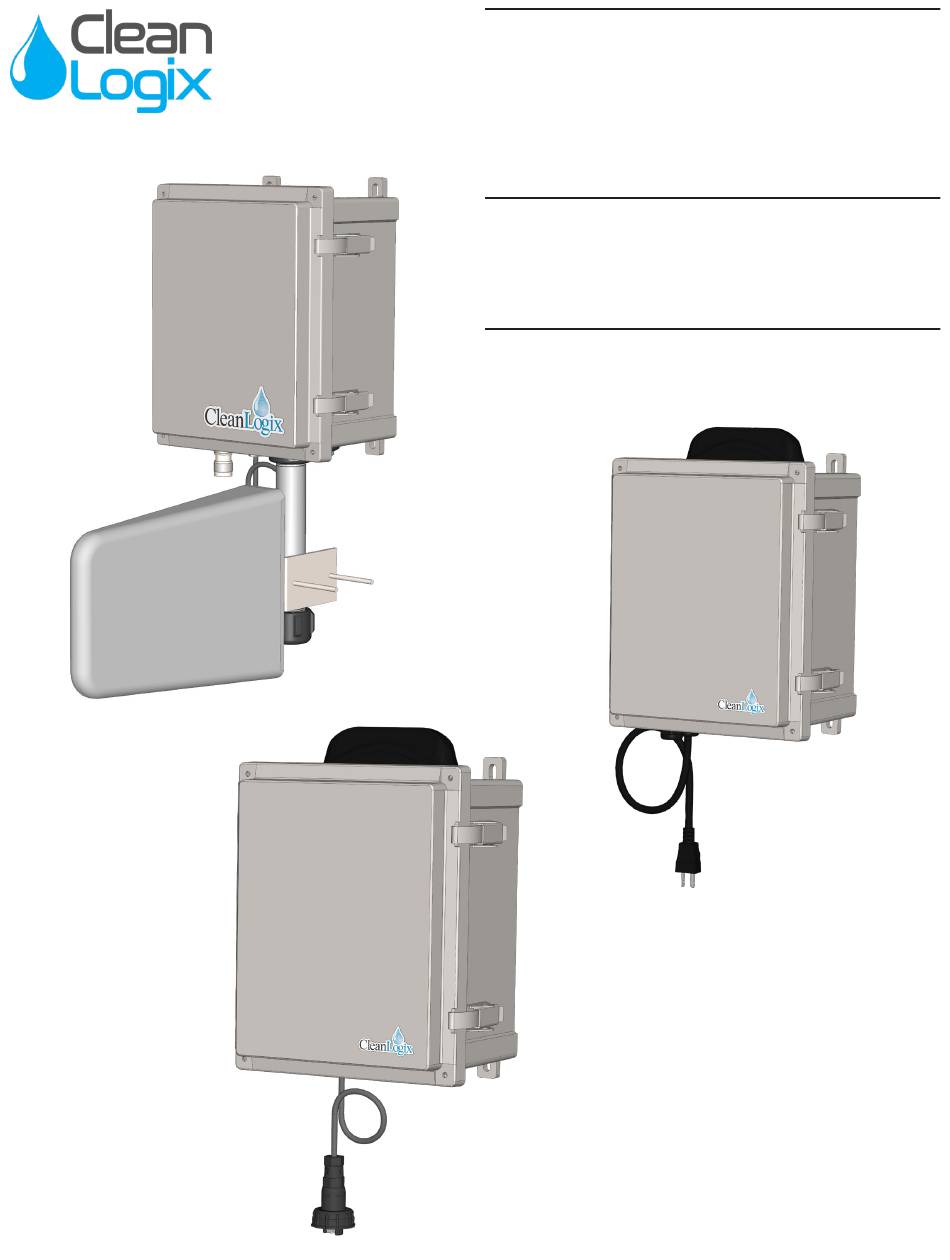

- Page 1 USER MANUAL MODEL: CELL -115V / -POE / -POE-D English (Original Instructions) Updated: 03/24/21...
-
Page 2: Table Of Contents
USER MANUAL: CELL Modem READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Table of Contents General Troubleshooting Appendices Overview Specifications Parts Callouts Installation Mounting Connecting Modem Overview: Last Update: 03/24/2021 CELL User Manual Page 2 of 9... -
Page 3: General
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Overview Specifications General: The CELL assemblies from Clean Logix coordinate with a variety of Clean Logix based equipment requiring • Dimensions: 12" x 10-1/4" x 7" internet access to connect to Clean Intel online series Directional Anteena: 21-3/8"... -
Page 4: Installation Mounting
USER MANUAL: CELL Modem READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installation Mounting: 1. Attach the mounting feet with the included hardware. 2. Choose an installation location with consideration of the following: • Cellular reception strength • Location for user/maintenance access •... -
Page 5: Connecting
• Plug the ethernet cable into the CELL modem's ethernet port Figure 4.1: CELL-115V unit with low profile antenna • Tighten cord grip to secure cable CELL-POE & CELL-POE-D: 1. Connect to controller (IVX-BETA, ALX-PRO, etc.) using Cat6 Ethernet cable via the sealed external ethernet port on the unit (50 ft. -
Page 6: Troubleshooting
USER MANUAL: CELL Modem READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Notes: Troubleshooting Unit is not receiving power: • Ensure 115V unit is plugged into 115 VAC outlet that is receiving power. • Check and confirm the power cord is not damaged and is connected. - Page 7 USER MANUAL: CELL Modem READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix - CELL-115V Parts Callout Part No. Description F1120 SCREW MACHINE 10-32 X 1/2 SS PHILLIPS PAN HD F1134 SCREW HI-LO 8-18 X 3/8 SS M1331 BACK PANEL ALX-CELL P1147 CORD GRIP 1/2 NPT X .170 - .450 BLK...
- Page 8 USER MANUAL: CELL Modem READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix - CELL-POE Parts Callout Part No. Description F1120 SCREW MACHINE 10-32 X 1/2 SS PHILLIPS PAN HD F1134 SCREW HI-LO 8-18 X 3/8 SS M1331 BACK PANEL ALX-CELL P1148 CORD GRIP NUT 1/2 NPS NYL P1181 ENCLOSURE FIBOX AR1086CHSSL...
- Page 9 M1331 BACK PANEL CELL/BETA ENCLOSURE P1641 POE SPLITTER 5.5/2.1 mm DC SHIELDED M1888 DECAL CLEAN LOGIX LOGO 2.16 in. (h) x 4.5 in. (w) LAMINATED WHITE POLYESTER, PERMANENT ADHESIVE P1668 SOCKET RJ45 FIELD WIRED SAMTEC SCPFE-17-G-01 P1148 CORD GRIP NUT 1/2" NPT BLACK - HEYCO 8463...
