Summary of Contents for Pknight Atomic SWB FX 960

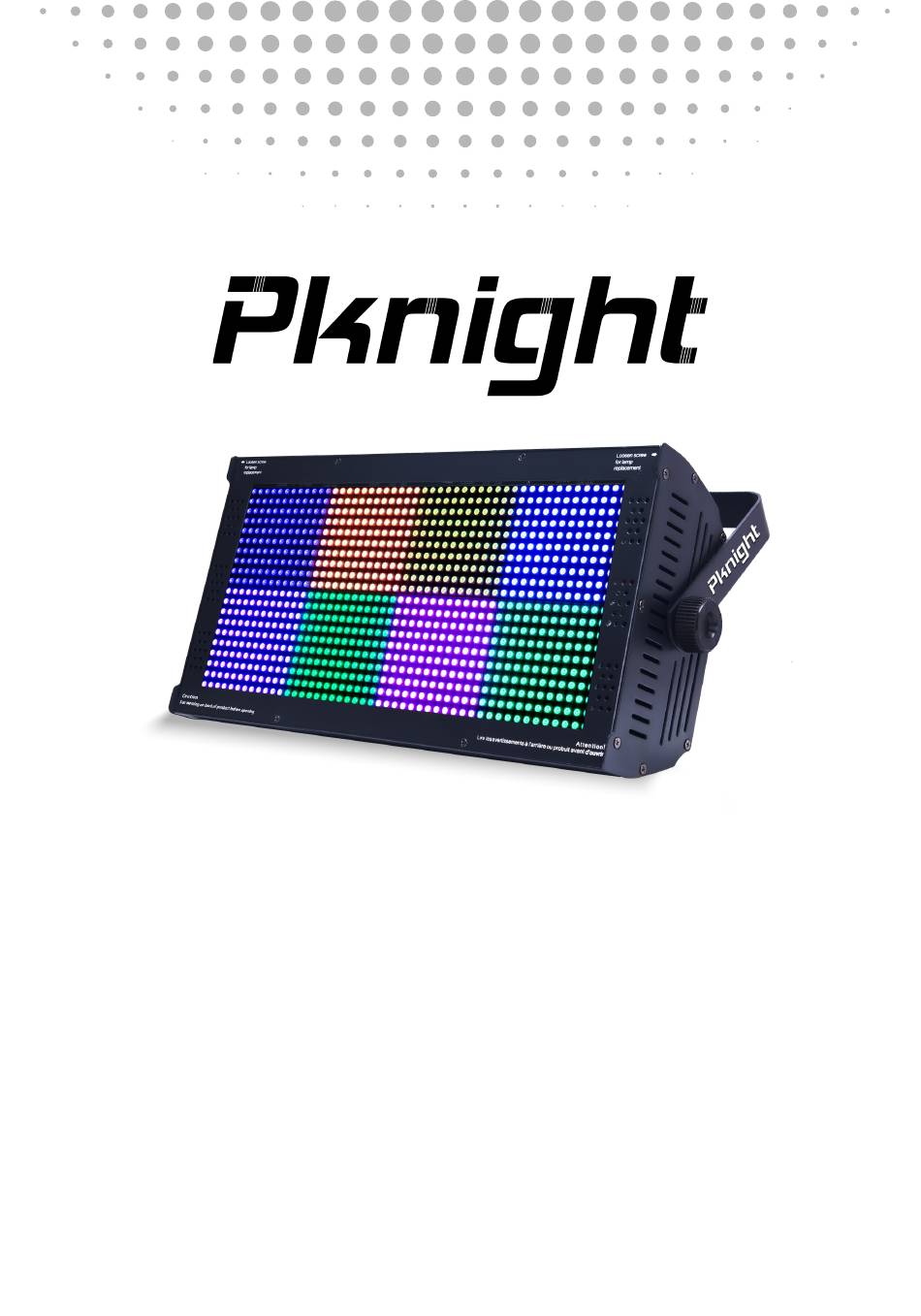

Page 1 Atomic SWB FX 960 user manual...
Page 3: Table Of Contents
CONTENTS Introduction Customer Support REMOTE DEVICE MANAGEMENT Control Panel Menu Function DMX Modes · DMX Mode | 3CH · DMX Mode | 9CH · DMX Mode | 24CH 9~10 Technical Features...
Page 4: Introduction
Introduction Congratulations and thank you for purchasing the Atomic SWB FX 960.The Atomic SWB FX 960 is a DMX intelligent, high powered LED fixture.Designed for mobile or permanent lighting of stages, clubs, dance floors and churches. please read these operating instructions carefully to familiarize yourself with the basic operations of this unit.These instructions contain important safety...
Page 5: Remote Device Management
REMOTE DEVICE MANAGEMENT NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, and allows the DMX systems of the fixtures to be modified and monitored remotely.
Page 6: Control Panel
Control Panel The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image above) MENU :To select the functions UP :To go forward in the selected functions DOWN :To go backward in the selected functions ENTER : Select an option or confirm a selection.
Page 7: Menu Function
Menu Function LED DISPLAY MAIN FUNCTION click enter Select the DMX address by UP or DOWN, and click ENTER to save. → Three DMX modes(3CH,9CH,24CH),Select the DMX modes by UP or → DOWN,and click ENTER to save.CH9 is default Built-in programs Effect 1,press ENTER and adjust the speed of the →...
Page 8 LED DISPLAY MAIN FUNCTION click enter Built-in programs Effect 14,press ENTER and adjust the speed of the → effect by UP or DOWN (1~50),and click ENTER to save. Built-in programs Effect 15,press ENTER and adjust the speed of the → effect by UP or DOWN (1~50),and click ENTER to save.
Page 9: Dmx Modes
DMX Modes - 3CH | 9CH | 24CH DMX Mode | 3CH VALUE NAME FUNCTION 1 000~255 Red Dimmer Red Dimmer, 0% to 100% 2 000~255 Green Dimmer Green Dimmer, 0% to 100% 3 000~255 Blue Dimmer Blue Dimmer, 0% to 100% DMX Mode | 9CH VALUE NAME...
Page 10 DMX TRAITS*A for CH4 - Auto Mode FUNCTION VALUE 000~004 No function 005~009 Effect 1 010~014 Effect 2 015~019 Effect 3 240~244 Effect 48 245~249 Effect 49 250~255 Effect 50 Page 7...
Page 11 DMX TRAITS*B for CH6 - Background Color DMX VALUE FUNCTION 000~031 032~063 Green 064~095 Blue 096~127 Red + Green 128~159 Red + Blue 160~191 Green + Blue 192~223 White 224~255 Black NOTE:Not all Auto modes can be added background color only for some monochrome effect Page 8...
Page 12: Dmx Mode | 24Ch
DMX Mode | 24CH VALUE NAME FUNCTION 1 000~255 Red Dimmer Group 1 Red Dimmer, 0% to 100% 2 000~255 Green Dimmer Group 1 Green Dimmer, 0% to 100% 3 000~255 Blue Dimmer Group 1 Blue Dimmer, 0% to 100% 4 000~255 Red Dimmer Group 2 Red Dimmer, 0% to 100%...
Page 13 DMX Mode | 24CH VALUE NAME FUNCTION 16 000~255 Red Dimmer Group 6 Red Dimmer, 0% to 100% 17 000~255 Green Dimmer Group 6 Green Dimmer, 0% to 100% 18 000~255 Blue Dimmer Group 6 Blue Dimmer, 0% to 100% 19 000~255 Red Dimmer Group 7 Red Dimmer, 0% to 100%...
Page 14: Technical Features
Technical Features Light Source: • 960 RGB SMD LEDs • 116 Degree Beam Angle • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. • 50,000 Hour Average LED Life Features: • 48 x RGB LED zones • 24 x Cool White LED zones •...
