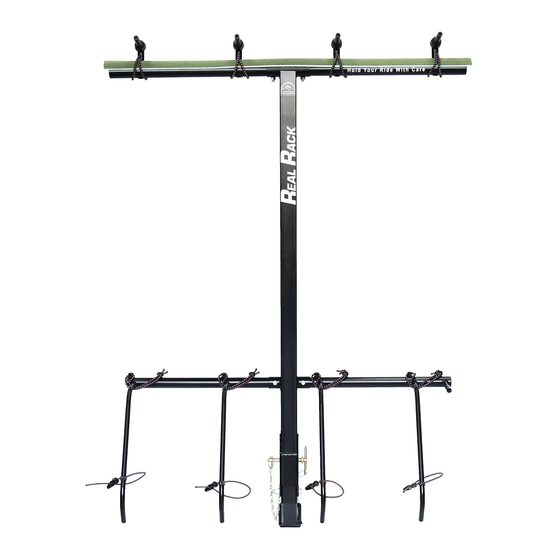

RealRack RR TWO BIKE Instructions For Use

Instructions for use

Congratulations and thank you for choosing RealRack to take care of your ride!

Below is some information that you need to know before you install your new RealRack on your

vehicle.

You can also find 'how to' videos on our YouTube channel, there is a link on our website.

Following these simple instructions will provide you with the best experience while using

your RealRack. Failing to follow these instructions may void the warranty of the product, and may

cause damage to yours or someone else's bikes or vehicle.

Load Rating

Check the load rating for your tow bar (hitch) before installing your RealRack. This can be

found in the vehicle manual or on the tow bar itself. It is your responsibility to ensure that

your tow bar isn't overloaded as this may cause damage to the vehicle or tow bar.

For example, assuming your tow bar is rated to a maximum (vertical) tongue load of 75kg,

and the RealRack is 10kg, your max usable load on the rack is 65kg. This is equivalent to the

weight of four bikes at 16.25kg or three bikes at 21.6kg.

The max load of each bicycle mount on any RealRack is 24kg.

Rack

RR TWO BIKE

RR FOUR BIKE

RR SIX BIKE

Max Load per rack (kg)

120

Table of Contents

Do you have a question about the RR TWO BIKE and is the answer not in the manual?

Page 1 For example, assuming your tow bar is rated to a maximum (vertical) tongue load of 75kg, and the RealRack is 10kg, your max usable load on the rack is 65kg. This is equivalent to the weight of four bikes at 16.25kg or three bikes at 21.6kg.
Page 2 E-Bikes are heavier than regular mountain bikes and because of this extra mass, we recommend you carry a maximum of two e-bikes on any standard RealRack. E-bikes must be loaded on the two centre spaces either side of the middle with no other bikes carried at the same time.
Page 3 • Thread locker (we recommend Loctite 243) • Grease 1 – Unboxing Find a clear space and carefully unpack and unwrap your RealRack, taking care to remove all packaging from each component. Remember to recycle the packaging if you can!
Page 4 • Fit the main support post on the mounting bracket by placing the RealRack logo face down. Locate the 12mm bolt in the bottom hole and tighten up the bolt lift the post up to insert the quick release pin.
Page 5 3 – Loading Bikes The easiest way to proceed is to load your bike from either side of the rack. We recommend loading the bikes from the middle out especially for the 6 bikes version. Loading your bike a) To load a bike on the rack, stand on beside your bike, opposite to the rack with the front wheel pointing towards the rack.
