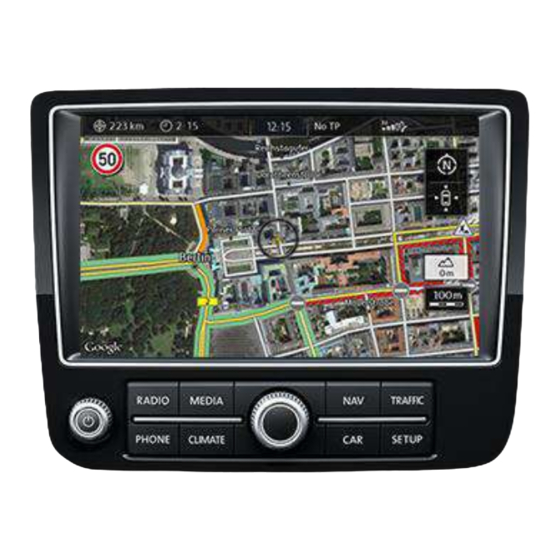

UPDATE INSTRUCTIONS FOR RNS 850
Contents
Disclaimer ................................................................................................................................
Pre-requisites ................................................................................................................................
Update Software...... ......................................................................................................................... . .
Update Map..........................................................................................................................................
Activation....................................................................................................................................
Caution: Use this guide at your own risk, we are not responsible
Important: Connect your car with a battery charger for all update time
Important: DO NOT INSERT!! the "Activation Pack " SD card till the maps loaded
and the RNS will "ask" for the activation!
Recommended: Read the complete guide before the start, recheck all the steps
and do it carefully.
MAP UPDATE INSTRUCTIONS FOR VW RNS 850
Written Q1
201 – Version 1
9
...........
.
.....
.
........
.
.
1 |
P a g e
Advertisement
Summary of Contents for RNS 850
- Page 1 MAP UPDATE INSTRUCTIONS FOR VW RNS 850 Written Q1 201 – Version 1 UPDATE INSTRUCTIONS FOR RNS 850 Contents Disclaimer ............................Pre-requisites ............................. Update Software..........................Update Map............................Activation............................Caution: Use this guide at your own risk, we are not responsible Important: Connect your car with a battery charger for all update time Important: DO NOT INSERT!! the "Activation Pack "...
- Page 2 UPDATE INSTRUCTIONS FOR VW RNS 850 Written Q1 201 – Version 1 Pre-requisites VW Touareg with RNS 850 navigation system Obtain the needed software updates Important: Do not conduct any diagnostic work using the VAS tester, as well as any other actions...
- Page 3 START WITH SOFTWARE UPDATE Written Q1 201 – Version 1 first: Update the Software Insert the Software SD card (looks like picture below): Open “Engineering Menu” pressing the SETUP button and immediately after that the PHONE button. Hold both buttons pressed for a few seconds. Insert the SD card"...
- Page 4 /SOFTWARE UPDATE INSTRUCTIONS FOR VW RNS 850 (VW)) Select the Software (In your case the version K0821 K0824 Press "Standard" Press "Start download" P a g e...
- Page 5 201 – Version 1 Press right button "Start" RNS 850 in this place shuts down and restarts. Installation takes 70 to 90 minutes. At the end comes a few reboots. Ensure that NaviPersistence have "OK" status and not "NOK". If all is "OK" then press "Next"...
- Page 6 UPDATE INSTRUCTIONS FOR VW RNS 850 Written Q1 201 – Version 1 Press “Cancel documentation” here version - After the reboot RNS 850 will with have updated software Check it by pressing the "SETUP" button, then "System" and find in the menu - "Version Information"...
- Page 7 go to system -> swdl select user defined by pressing center knob Quit green menu by pressing any RNS850 key Insert SD card with Maps Enter engineering menu Select actualization P a g e...
- Page 8 Select user defined Now You will see along list with different components. Select the first item having an "N" Don't pay attention to N/A (not available) You will see "Bootloader" and "application" Select "application" go back After that the item will have a "Y" Repeat this procedure for each item having an "N"...
- Page 9 card After you finish, remove Then press "NAV" button check Navigation Navigation will work minutes will " BLOCKED " screen appears: unlock M ap Activation card: "Activation Pack 6.28 " now..P a g e...
- Page 10 Caution: The RNS850 unit will REBOOT ITSELF during the Activation process! Prepare the SD card "7P6 051 850 J B " Activation Pack , (Looks like this picture below) : Make sure that the RNS is fully booted . Wait at list 5 mins..
