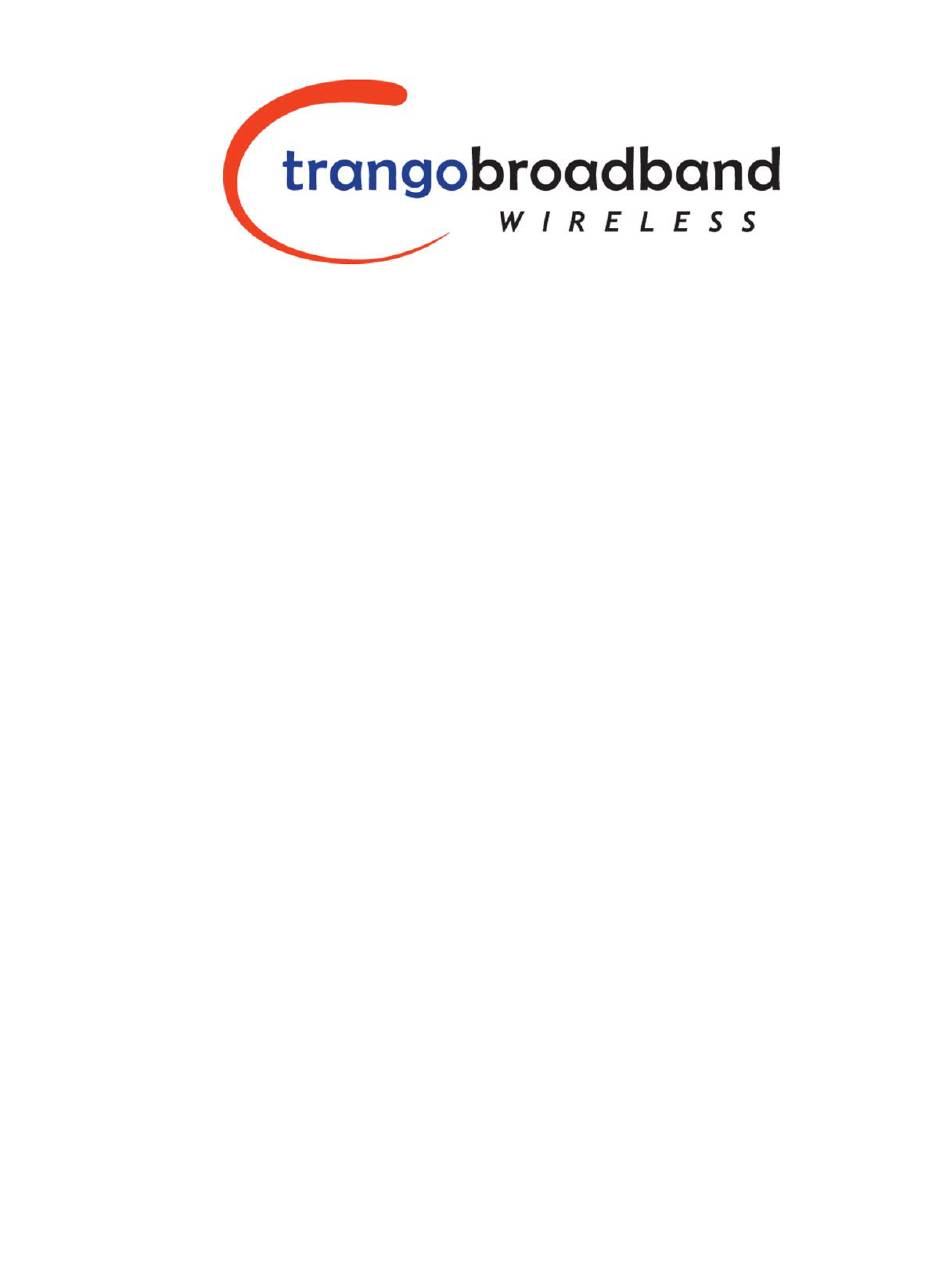

- Page 1 Access5830™ Wireless Broadband System PROFESSIONAL INSTALLATION GUIDE M5830S-SU-EXT M5830S-AP-EXT...
-
Page 2: Fcc Information
Intentional or unintentional changes or modifications must not be made unless under the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty. To comply with FCC RF exposure requirements, the following antenna Trango Broadband Wireless – Rev. C Page... -
Page 3: Warranty Information
Furthermore, it must not be co-located or operating in conjunction with any other antenna or transmitter. Warranty Information Radios from Trango Broadband Wireless are warranted from one year from date of purchase. Please see www.trangobroadband.com for complete description of warranty coverage and limitations. -
Page 4: General Information
30 dBm. However, due to FCC restrictions the professional installer must manually reduce the maximum power for the 5.25 to 5.35 GHz U-NII band if a higher gain antenna is to be used. Trango Broadband Wireless – Rev. C Page... - Page 5 NOTE: The Omni and 120 degree sector antennas are not designed for use in the UNII band. The Power Set command is accessible from the command line or the HTTP Browser interface. The telnet or serial port command to change the maximum power is: Trango Broadband Wireless – Rev. C Page...
- Page 6 The flash memory must be updated after running the command. save systemsetting or save ss. The command must be run prior to installing the antenna. Example: To set the power setting for the SEC-55D-90-16: #> power setunii 15 #> save systemsetting Trango Broadband Wireless – Rev. C Page...
- Page 7 In addition to the guidelines listed in the Access5830 User Manual, installers must cover cable-SMA connectors (both ends) with heat-shrink to provide weatherproofing of the RF cable connectors. Trango Broadband Wireless – Rev. C Page...
- Page 8 See diagram below for proper installation of the AD5830-24-D These antennas are designed primarily for low rise building installations only. Do not install in an area where high (>70 mph) winds are expected. NOTE: Optimal alignment of this dish (to AP at horizon) is 20° below vertical. Trango Broadband Wireless – Rev. C Page...
- Page 9 Pre-Assembled Cable Assemblies are available from Pasternack Enterprises www.pasternack.com. Model No. PE34361-24 24” REVERSE POLARITY SMA MALE TO STANDARD N MALE Model No. PE34361-36 36” REVERSE POLARITY SMA MALE TO STANDARD N MALE Trango Broadband Wireless – Rev. C Page...
- Page 10 Note: The amber light on the bottom of the SU will also indicate RSSI according to the following parameters: RSSI < -80dBm not lit RSSI > -80dBm blinking. RSSI ≥ -65dBm solid. (blink rate increases with signal strength.) Trango Broadband Wireless – Rev. C Page...
-
Page 11: Specifications
.00025% PLL stabilized (+/-2.5ppm) over temperature range Data Input Section Data Rate (User): Up to 10 Mbps Sustained throughput Format: 10/100 BaseT IEEE 802.3 Ethernet compliant Ethernet packet: Up to 1600 byte long packets Trango Broadband Wireless – Rev. C Page... - Page 12 FCC 15.209 Unwanted emissions below 1GHz - FCC 15.207(a) AC conducted emissions 450Khz to 30 MHz FCC 15.205 Restricted bands (LO and harmonics)= 54 dBuV average @3 meters EN 301 489-1 Part 7.2 - RF Immunity Trango Broadband Wireless – Rev. C Page...
- Page 13 5.736 and 5.836 GHz and +14 for frequencies between 5.26 to 5.32 GHz . Operation on 5.34 GHz is not allowed. 120 Degree Sector Horizontally Polarized Antenna: Pacific Wireless model SAH58-120-16 Specification: Horizontally polarized, 16 dBi gain Connect to H port of radio.* Trango Broadband Wireless – Rev. C Page...
- Page 14 No change in max power setting that radio ships with. This antenna only works with 5.736 to 5.836 GHz center frequencies. *All antennas require the cable adapter (Trango part number CA-9028) N to reverse SMA. Trango Broadband Wireless – Rev. C Page...
