Summary of Contents for McSweeney Dexignx Armorcraft

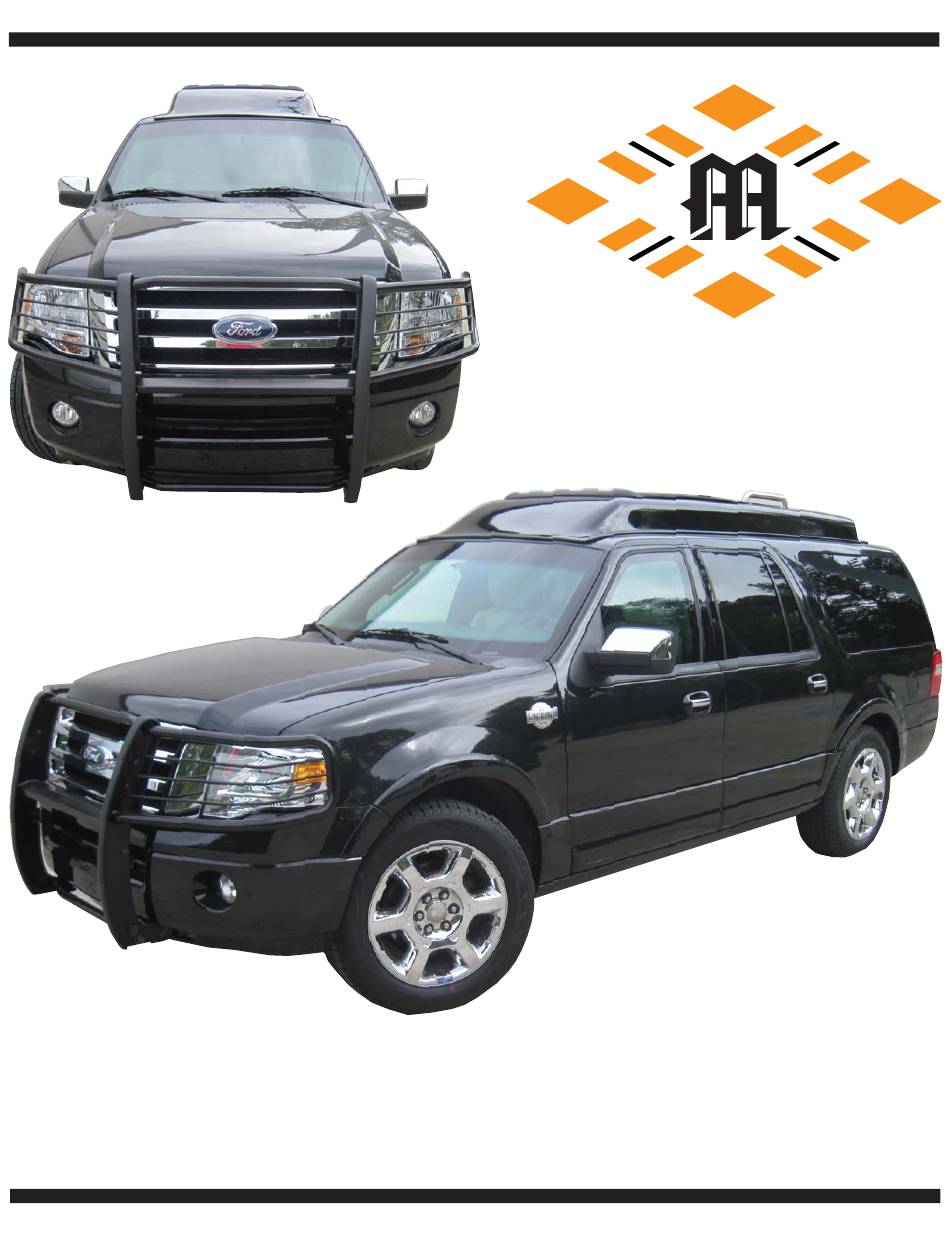

- Page 1 SWEENEY McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition...
- Page 2 McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY FRONT PARK Assist Note: Due to the installation of Westin Brush Guard, the front park assist must be disabled upon initial startup of vehicle. Audible alarm will sound once placed in drive “D”. To disable, press reset button located above radio.
- Page 3 Section 7: Armored Roof Section 8: Sun Roof Thank you for your purchase of McSweeney Dexignx Armorcraft 2012 Ford Expedition. This manual is intended for learning the basic func- tions and features specifically designed for this vehicle. Two special maintenance manuals have been constructed for both the mechanical lift and sliding armored roof present .
-
Page 4: Section 1 : Wall Partitions
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 1 : WALL PARTITIONS Your vehicle is equipped with 2 wall partitions that divide the drivers compartment for privacy. There are two switches located on the main center console to operate partitions up or down. -
Page 5: Section 2 : Seating And Controls
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 2 : Seating and Controls Your vehicles rear cabin seats are two way adjustable seats which includes recline and lumbar support . The switches for these features are located on the main center console switch panel. -
Page 6: Section 3 : Wall Panel Tops
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 3 : WALL PANEL TOPS The sides of the rear cabin wall panel tops are populated with several comfort and storage features. Personal Ash Tray Lighted Cup Storage Cigarette Holder... -
Page 7: Section 4 : Climate Control
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 4 : Climate Control Climate control for the rear cabin is located on the passenger side of the vehicle on the wall board. Fan Speed Temperature Directional vents are located over head on both driver and pas- senger sides and can be positioned and adjusted to your specific comfort needs. -
Page 8: Section 5 : Center Console
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 5 : CENTER CONSOLE The center console is located in between both seats in the rear cabin. The center console houses Alpine Head Unit 2 Gull-wing doors and fold out desks... - Page 9 McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 5 : CENTER CONSOLE The main switch panel controls the majority of functions of the rear cabin area. These switches are accompanied by an illuminat- ed legend plate that also contains the USB connection for phone charging or to play MP3 music through.
- Page 10 McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 5 : CENTER CONSOLE To use folding doors, follow steps below. Please remember to never force components in any direction as damage may result . Open gull wing door Use handle to slide assembly up...
- Page 11 McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 5 : CENTER CONSOLE The chiller cooler located in the console is located directly behind the gull wing doors. There is an internal latch located towards the front of the chiller cooler door which must be de- pressed in order to open.
-
Page 12: Section 6 : Mechanical Lift
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 6 : MECHANICAL LIFT Located directly in front of the main center console is the me- chanical lift platform. The mechanical lift should remain in the closed position at all times unless roof access is desired. -
Page 13: Section 7 : Armored Roof System
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 7 : Armored Roof System Your vehicle is equipped with two roof systems for roof access. To operate open armored roof first by activating the switch lo- cated on the main center console switch panel labeled ARMOR. -
Page 14: Section 8 : Rear Door
McSweeney Dexignx Armorcraft Owner’s Manual 2012 Ford Expedition SWEENEY SECTION 8 : REAR DOOR For armor protection, your rear door is comprised of two rear doors. The factory rear hatch functions as intended and covers the rear armor door. The rear armor door latches via a door handle located on the left hand side with locking option.
