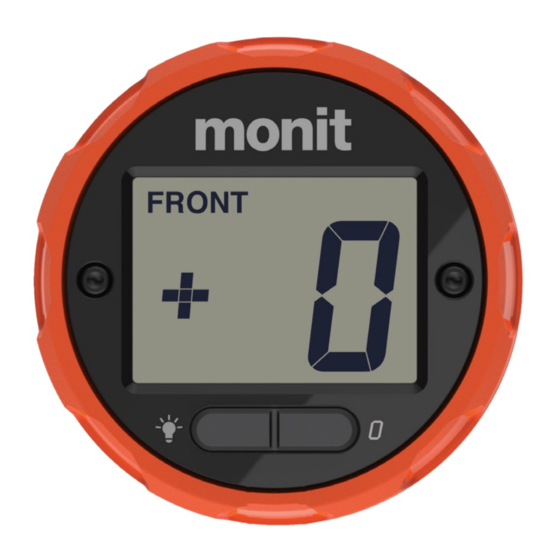

monit Brake Dial Installation And User Manual

PACKAGE CONTENTS

• 1x Monit Brake Dial
• 1x Inner and outer cable – 1500mm long.
• 5x Cable clamps
• 2x Direction indication labels.
• 2x Balance bar to cable adaptors (7/16" and 3/8" threads)
• 2x Jam nuts (7/16" and 3/8" threads)
• 1x T5 Torx screwdriver
Bulkhead Mount model additional parts:
• 1x M20 black mounting nut
• 1x M2 Cheese head anti-rotation fastener
Square Mount model additional parts:
• 4x M4 Black stainless cap screws and lock nuts.

Important Information

• The Monit brake dial is designed for motorsport use. It should
be installed by a competent technician and only used by suitably
experienced race or rally drivers.
• It is up to the vehicle crew/driver to ensure the brake bias of the vehicle
is correctly set at all times. Brake bias performance should be tested
and checked prior to any critical braking situations.
• Ensure the balance bar and/or pedal box manufacturer's instructions
are followed regarding assembly and operation of their products.

Battery Replacement

Note: The CR2032 coin cell battery life is approximately 18 months in
normally operating conditions. It should be replaced when the battery icon
stays on.
• Unscrew the 2x front face screws using the T5 torx screwdriver but
leave approximately 1 – 1.5 turns of the screw still threaded into the
front face part only. These screws can now be used to lift the front
face out. There should be no resistance to the removing of this part, if
there is then please unscrew the screws further until the resistance is
removed.
0.1Nm
• Replace the CR2032 battery in the correct +/- orientation.
• When reassembling take care to not over tighten the screws
as this will damage the threads. Recommended tightening
torque is 0.1 Nm.
Monit Ltd
PO Box 4309,
Mount Maunganui 3149,
New Zealand.
www.monitmotorsport.com

MOUNT INSTALLATION TEMPLATES

Bulkhead mounting type

There is an anti-rotate fastener (M2 "cheesehead") supplied in the parts bag. This
can be screwed into the free M2 thread on the back of the Brake Dial mounting
base, if required, to help prevent rotation of the dial when tightening the retaining
nut.
1. Mark out the centre hole, and the hole for the anti-rotate fastener (if required)
using the template dimensions shown below.
2. Drill holes and locate the dial in place. Tighten the bulkhead black M20
retaining nut finger tight initially ensuring the anti-rotate screw is located into
the drilled hole.
3. Once correct, continue to tighten the retaining nut to a sufficient torque, this
will vary depending on material it is binding to.
BULKHEAD TEMPLATE 1:1
∅ 4mm (5/32") anti-rotate screw drill hole
∅ 20-22mm (13/16") hole

Square mounting type

1. Mark out the centre hole as well as the 4 mounting screw holes using the
template dimensions shown.
2. Drill holes and locate the dial in place, Fix using the supplied 4x M4 black
stainless cap screws and locknuts.
SQUARE MOUNT TEMPLATE 1:1
4 x ∅ 3.5mm (9/64") hole
∅16.0mm
(5/8")
45°
