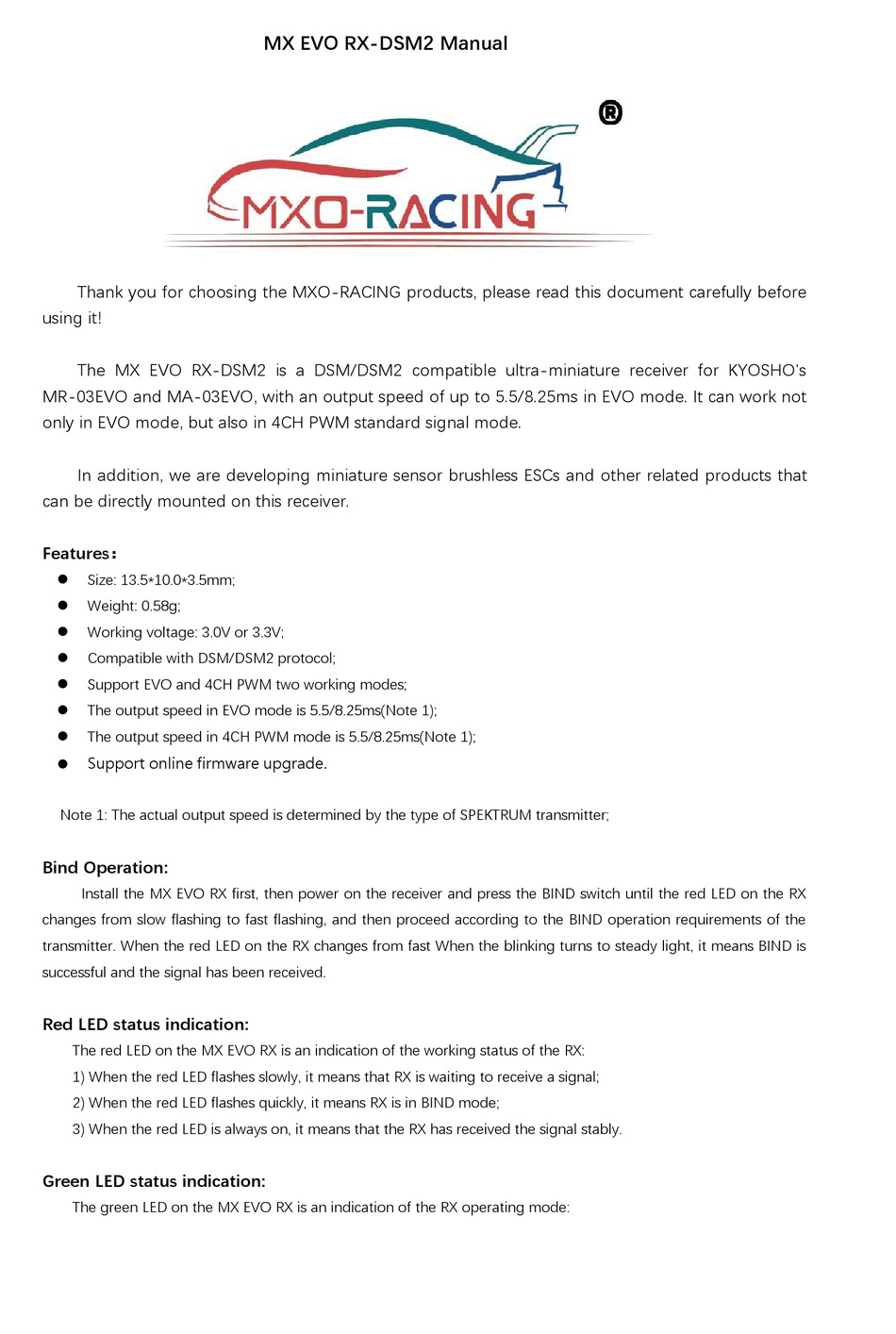

MXO-RACING MX EVO RX-DSM2 Manual

Thank you for choosing the MXO-RACING products, please read this document carefully before
using it!
The MX EVO RX-DSM2 is a DSM/DSM2 compatible ultra-miniature receiver for KYOSHO's
MR-03EVO and MA-03EVO, with an output speed of up to 5.5/8.25ms in EVO mode. It can work not
only in EVO mode, but also in 4CH PWM standard signal mode.
In addition, we are developing miniature sensor brushless ESCs and other related products that
can be directly mounted on this receiver.
Features：
Size: 13.5*10.0*3.5mm;

Weight: 0.58g;

Working voltage: 3.0V or 3.3V;

Compatible with DSM/DSM2 protocol;

Support EVO and 4CH PWM two working modes;

The output speed in EVO mode is 5.5/8.25ms(Note 1);

The output speed in 4CH PWM mode is 5.5/8.25ms(Note 1);

Support online firmware upgrade.

Note 1: The actual output speed is determined by the type of SPEKTRUM transmitter;

Bind Operation:

Install the MX EVO RX first, then power on the receiver and press the BIND switch until the red LED on the RX
changes from slow flashing to fast flashing, and then proceed according to the BIND operation requirements of the
transmitter. When the red LED on the RX changes from fast When the blinking turns to steady light, it means BIND is
successful and the signal has been received.

Red LED status indication:

The red LED on the MX EVO RX is an indication of the working status of the RX:
1) When the red LED flashes slowly, it means that RX is waiting to receive a signal;
2) When the red LED flashes quickly, it means RX is in BIND mode;
3) When the red LED is always on, it means that the RX has received the signal stably.

Green LED status indication:

The green LED on the MX EVO RX is an indication of the RX operating mode:
