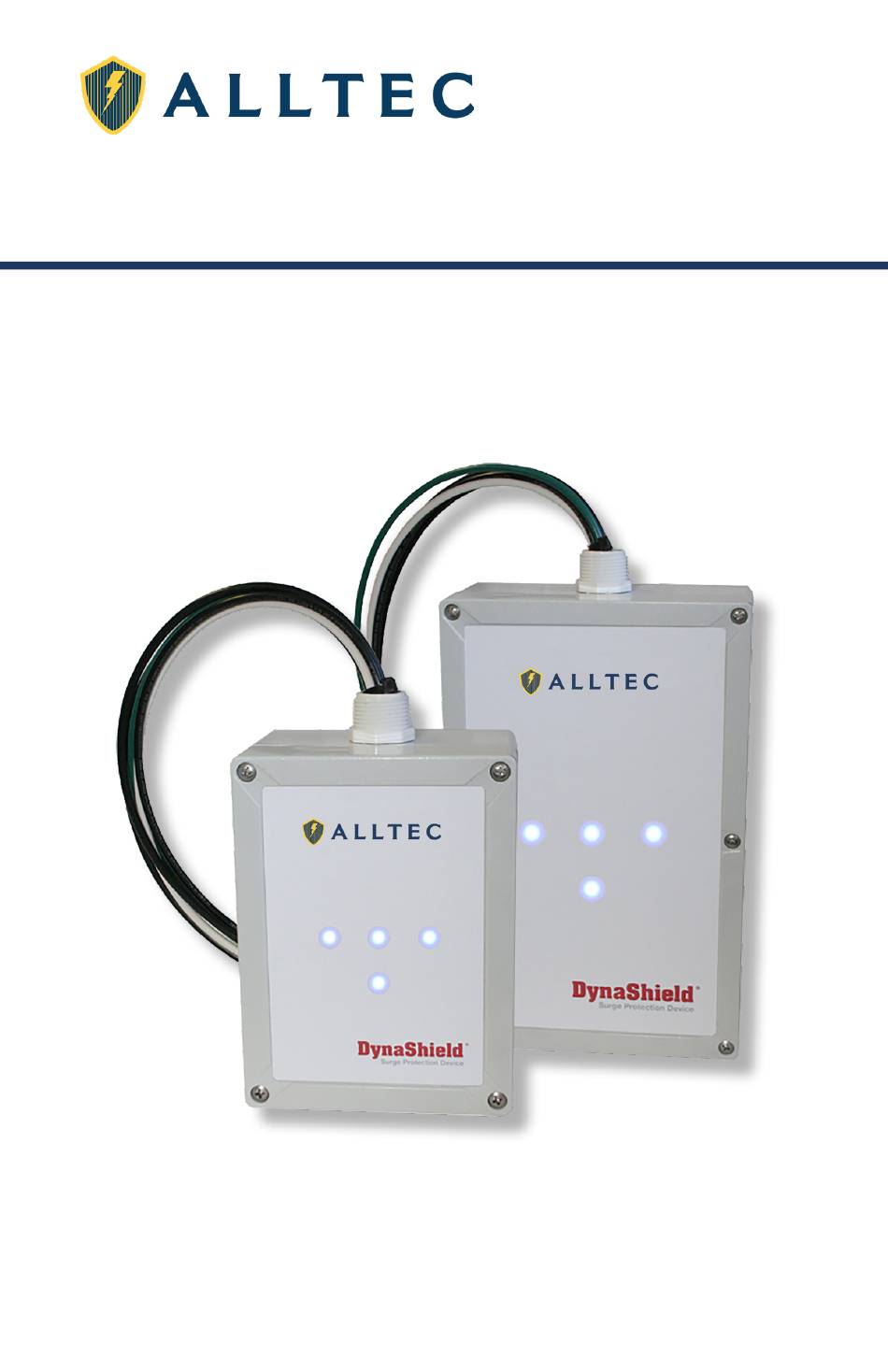

- Page 1 DynaShield ® Surge Protection Devices ADSx(2F) Series User Manual and Installation Instruction Guide Surge Protection Device for AC Power Applications...
- Page 2 The ADSx Series of AC Surge Protection Devices are ANSI/UL 1449 -3rd Edition defined as Type 1/2 protective devices. Type 1 SPDs are suitable for direct installation on the supply line of the service disconnect. Type 2 SPDs are installed on the load side of the service disconnect and may be ordered with UL1283 Listed EMI/RFI filter.
-
Page 3: General Safety
Apply appropriate Personal Protective Equipment and follow safe electrical work practices. See NFPA 70E. Never install this unit if it has fallen, has been dropped or appears damaged in any way. Return device to factory for diagnostic testing. CAUTION! HAZARD OF EQUIPMENT DAMAGE This device is suitable for use on a circuit capable of delivering NOT more than 200K RMS Symmetrical Amperes, AC Service Volts Maximum. -
Page 4: Location Considerations
UNPACKING Unpack the surge suppressor from its shipping container and visually inspect for shipping related damage. If unit(s) are received damaged, notify the shipping company immediately. Retain all shipping containers and packing materials for inspection. LOCATION CONSIDERATIONS Select a location as close as possible to the AC power source and securely mount it to any surface. -
Page 5: Mounting Brackets
Units Front View Side View Rear View 162 mm 148 mm (6.4 in.) (5.8 in.) 89 mm 122 mm (3.5 in.) (4.8 in.) Figure 1. Dimensional Drawing [ADSx050(2F) & ADSx100(2F) Models] Front View Side View Rear View 263 mm 252 mm (10.4 in.) (9.9 in.) 89 mm... -
Page 6: Mounting Instructions
Mounting Instructions Optimize device performance by keeping connecting wires as short and straight as possible. Plan the wiring path(s) prior to commencing the installation procedure. Locate the SPD as close to the available disconnecting means to minimize the length of the connecting wires. Securely mount the SPD unit using the four (4) mounting holes provided in the enclosure’s mounting flanges. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS Ensure that all power is removed before beginning installation. Verify that the voltage rating is appropriate for connection to the intended power source. Connect the green/yellow Ground wire and the white neutral wire. Then connect the black (phase A), Red (phase B), and Blue (phase C) wires, keeping all conductors as short and straight as possible, ideally less than 18 inches. -
Page 8: System Grounding And Bonding
Figure 4. Electrical Connections SYSTEM GROUNDING AND BONDING For proper SPD performance, the service entrance grounding electrode system must comply with the NEC (National Electric Code) by having all available electrodes properly bonded together and connected to the power system grounding (building steel, driven rods, concrete encased electrode). For optimum SPD performance, an earth ground resistance of <... -
Page 9: Wiring Instructions
Apply power. The SPD is fully operational when the BLUE LED on the front panel are illuminated. If the Blue LED are extinguished, check to ensure power is applied. If the alarm contacts indicate an abnormal condition exists, remove power and contact ALLTEC customer service at 1-800-203- 2658 or www.alltecglobal.com. - Page 10 ADSx Model part numbering system Part #: ADSx VVVV Options Type Voltage Configuration R = NC/NO Form C Contacts 120S = 120V single phase (L,N,G) kA Rating F = EMI/Noise Filter 120T = 120/240V split phase (L1,L2,N,G) 120W = 120/208V 3 phase WYE (L1,L2,L3,N,G) 050 = 50 kA per phase 127W = 127/220V 3 phase WYE (L1,L2,L3,N,G) 100 = 100 kA per phase...
