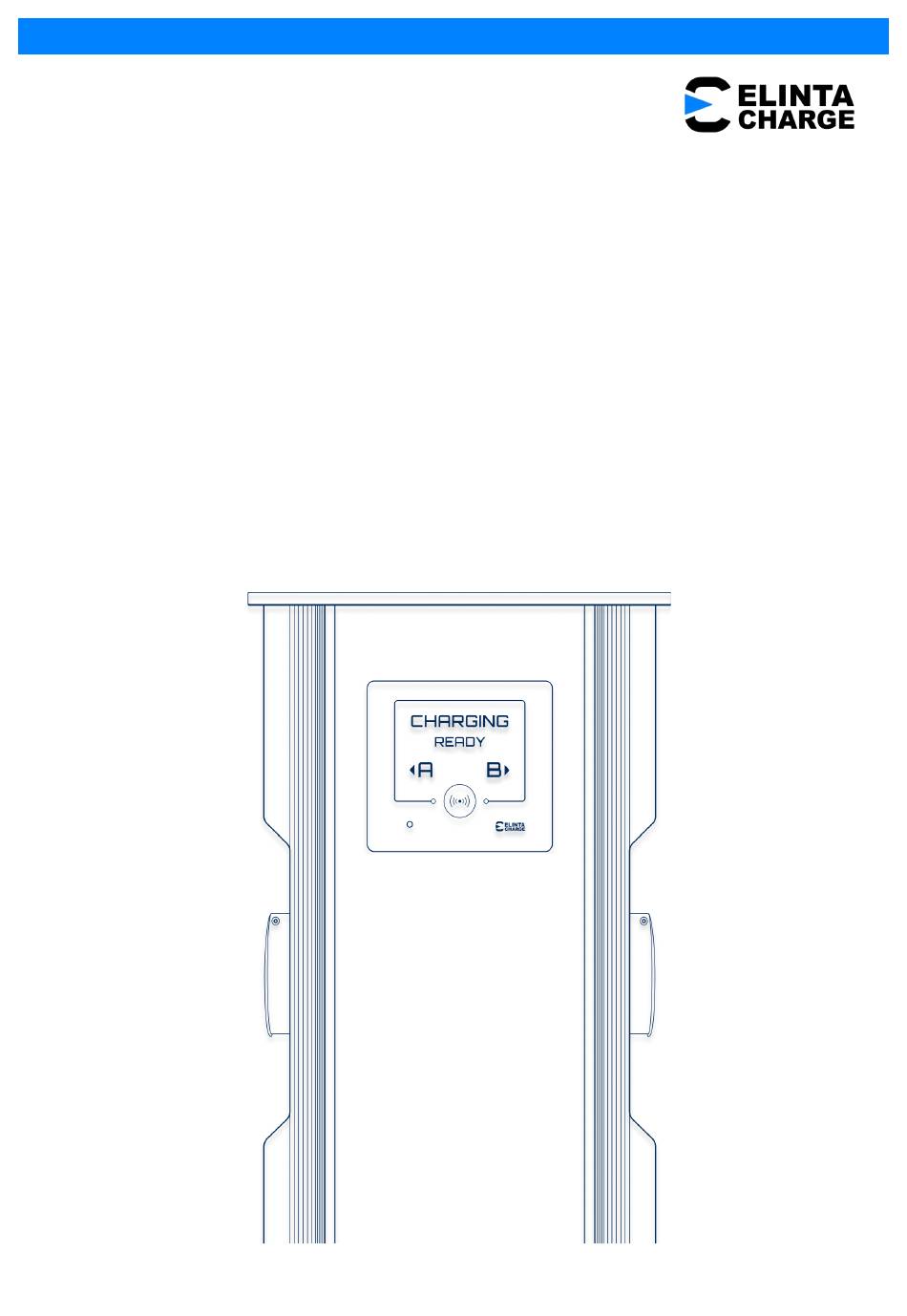

Public Electric Vehicle Charging station

CityCharge Mini2

Installation Manual

Elinta Charge, UAB | Partizanu g. 63M, Kaunas 50306, Lithuania |

www.elintacharge.com

Table of Contents

Need help?

Do you have a question about the CityCharge Mini2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELINTA CHARGE CityCharge Mini2

Page 1 Public Electric Vehicle Charging station CityCharge Mini2 Installation Manual Elinta Charge, UAB | Partizanu g. 63M, Kaunas 50306, Lithuania | www.elintacharge.com...
Page 2 No portion of these materials may be duplicated, used or disclosed without prior written permission from Elinta Charge, UAB Disclaimer: This installation manual includes the latest information available at the time of printing. Elinta Charge, UAB reserves the right to make changes to this installation manual and/or product without further notice.
Page 3: Table Of Contents
Contents INTRODUCTION............................5 Purpose of the Manual ......................6 Qualified Personnel ........................ 6 Symbol Usage ......................... 6 High Voltage Warning ......................7 Important Safety Instructions ....................7 Additional Safety Information ....................8 Repair and Maintenance Clause ..................... 8 Definitions ..........................9 Moving, Transporting and Storage instructions ..............
Page 4 INITIAL STARTUP ........................... 47 First Time Start-UP ........................ 48 Charger Boot Sequence ......................49 SETTINGS AND TESTING ........................52 RCD Type B (optional) ......................53 RCD Type A and Type B Testing ..................... 54 Dynamic Load Management Setup online (optional) ............55 Payment Solution Using The Payter (optional) ..............
Page 5: Introduction
Chapter 1 INTRODUCTION...
Page 6: Purpose Of The Manual
Purpose of the Manual This manual provides information about the installation process of the public charging station CityCharge Mini 2. This document is designed for engineers and electricians who possess a gen- eral knowledge of electrical installation. Qualified Personnel The product described in this document may be installed only by personnel qualified for the specific task in accordance with the relevant documentation, in particular, its warning notices and safety instructions.
Page 7: High Voltage Warning
High Voltage Warning Incorrect connections may cause electric shock. Do not touch live electrical parts. Improper connection of the equipment grounding conductor may result in electric shock. Consult a qualified electrician or service technician if you are in doubt as to whether the product is properly grounded.
Page 8: Additional Safety Information
Please refer to your vehicle owner's manual for ventilation requirements. Repair and Maintenance Clause Elinta Charge products: CityCharge Mini 2 do not require routine maintenance, however, periodic inspections should be conducted to ensure that all parts remain in good working order and no damage exists.
Page 9: Definitions
Definitions (Alternating Current): A charge of electricity that regularly AC - changes direction. (Alternating Current): A charge of electricity that regularly kW - changes direction. The strength of an electric current measured in amperes or A / mA - milliamperes A unit of energy equivalent to the energy transferred in one kWh - hour by one thousand watts of power.
Page 10: Moving, Transporting And Storage Instructions
Moving, Transporting and Storage instructions It is recommended to store the charging station indoors and in a non-humid environment, keeping it in its original packag- ing until it is ready to be installed. Storage temperature should be between -30 °C and +60 °C When moving or lifting the unit, always carry the unit by the enclosure, never attempt to lift, move, or carry the unit alone.
Page 11: Preparation
Chapter 2 PREPARATION...
Page 12: Site Selection
Site Selection Selecting a site for EVSE installation will likely require consideration of a combination of factors. While every site is unique and every EVSE host has priorities for installation, common physical elements characterize every EVSE site design. Some of the most common design elements to look for: Power Rating of Charging Station Proximity to Power Distribution Box...
Page 13 Power Rating of Charging Station - Connecting the charging station to a power source will require the evaluation of existing electrical capacity. Sometimes greater power charging stations are unnecessary for the selected location. Such as workplac- es, where people tend to stay the whole workday and bigger power charging stations will not be beneficiating between charging station power and electrical system power, consider two parts: the electrical system at the location of the EVSE in-...
Page 14 Available Network Communications - Charging stations are much more with internet communication: mobile phone apps, payment solutions, charging reservations - all these functions are available with internet connectivity. When choosing a location for the charging station: make sure there is the possibility to share a network with the charging station. Charging stations usually accept all common communication types: Wi-Fi, LAN or GSM/4G.
Page 15: Electrical Requirements
Electrical Requirements Be sure to follow the electrical installation instructions. Failure to do so may result in damage to the unit or personal injury. This charging station has been designed for operation with the power supply systems TNC-S; TNS or TT. Make sure that the ground resistance is not greater than 10 Ω.
Page 16: Wiring Recommendations
Wiring Recommendations Recommended calculated values for CityCharge Mini 2 charging station wires: (When calculated cable length Max: 50 meters; Power factor (cosφ): 0,95; voltage drop (%): 7%; Cabling method: Four single core copper wire in the pipe (three phase)): Side A, Power Side B, Power Total Charger Amperage per...
Page 17: Installation
Chapter 3 INSTALLATION...
Page 18: Charging Station Overview
Charging Station Overview CityCharge Mini 2 is classified as a fast Mode 3 charging station with the ability to provide up to 44 kW (2x22 kW) of power using two Type 2 charging sockets. The bright animated LED screen and sidebars are visible even in the direct sunlight.
Page 19: Charging Station Specifications
Charging Station Specifications Charging Station CityCharge Mini 2 technical specification: Weight: 21 kg Dimensions: 150 x 350 x 670 mm Phase Count: 3 Operating Voltage: 400 V/AC Maximum Power: 44 kW Impact protection rating: IK10 IP class: IP54 Temperature range: -30 °C to +50 ° LED charging display: YES Smart Energy Meter: YES, MID RFID user control: YES...
Page 20: Charger Internal Components
Charger Internal Components Charge Controllers (behind Mainboard) MainBoard Cable Lock Actuator Power Contactors MainBoard Circuit Breaker Smart Energy Meters Electronics Power Supply Heater Element Communication Wire Terminals Modem...
Page 22: Charging Station Unpacking
Charging Station unpacking The charging station is packed in a cardboard box. Store the charging station in an environment that is not too humid until the day of installa- tion. After removing the charging station from the packaging, keep the card- board box for the entire warranty period in case the charging station needs to be sent in for repair.
Page 23: Tools And Consumables
Tools and Consumables We recommend that you have these tools and consumables ready before you start installing the charging station: Tools needed and consumables needed: Flat-head screwdriver • Hexagon screwdriver set • Measuring tape • Level • Drill • 4 x screws for the wall mounting •...
Page 24: Wall Mounting The Charging Station
Wall Mounting The Charging station Make sure the mounting plate is securely fastened to the wall and the mounting plate hooks are facing up. Hooks must be facing up...
Page 25 While securely holding the charger with both hands, place the charging station on to the mounting plate. The weight of the charging station is 21 kg. It would be safer to have two people to hang the station on to the hooks.
Page 26 The hooks must first be inserted into the slots (see picture below): Hooks Slots Push down the charging station to secure the charging sta- tion on to the hooks (see picture below): The hooks has en- tered the the slots and came down.
Page 27 Secure the charging station to the mounting plate by hexagon screws provided: Tighten these screws with the force of 10 Nm. 2 x screws...
Page 28: Connecting The Power Cable
Connecting The Power Cable Unlock the lock on the underside of the charging station using the electrical housing key supplied with the charging station: Unlock the lock by turning the key counterclockwise...
Page 29 Open the charging station by lifting the front panel: lift from the bot- tom of the lid (see illustration below): Remove the front panel. Be especially careful not to break the screen glass, which is held inside the front panel (see illustration below):...
Page 30 Screw the metal cable gland to the bottom of the charging station (see illustration below): If the charging station is supplied with an optional LAN communi- cation or an optional secondary power input, all additional cables must be routed to the charging station using these metal glands. If there are unused holes in the bottom of the charging station, make sure that these holes are plugged to prevent water from en- tering.
Page 31: Single Power Input
Single Power Input Danger: Before connecting the power cable, make sure that no current flows through the cable Power Supply When the CityCharge Mini 2 is selected in the single power in- put configuration: The wire terminals accept a single 5-core wire up to 16 mm2.
Page 32 TN 1-phase connection to the grid: For TN 1-Phase: connect Power Supply L1 to the Grey color wire terminal. Connect the Power Supply Cable neutral (N) to the blue wire terminal. Connect the Power Supply Cable Earth wire (PE) to the green- yellow wire terminal.
Page 33 IT 3-phase connection to the grid: L1 L2 For TN 3-Phase: connect L1 to charger’s Phase 1. Connect L2 to charger’s Phase 2. Connect L3 to charger’s Neutral. Connect the Power Supply Cable Earth wire (PE) to the green-yellow wire terminal. IT 1-phase connection to the grid: For TN 1-Phase: connect L1 to charger’s Phase 1.
Page 34: 3.10 Single Power Input Connection Schematic
3.10 Single Power Input Connection Schematic As standard, the CityCharge Mini 2 is supplied with a single power input terminal. The maximum permissible power cable cross-section is 16 mm . The wiring diagram below shows the single power connection. The smart energy meter is an optional extra and is used for dynamic load management.
Page 35: Double Power Input
3.11 Double Power Input Danger: Before connecting the power cable, make sure that no current flows through the cable Power Supply When the CityCharge Mini 2 is selected in the dual power input configuration: The wire terminals accepts a dual 5-core wire up to 6 mm2.
Page 36: 3.12 Dual Power Input Connection Schematic
3.12 Dual Power Input Connection Schematic Optionally, the CityCharge Mini 2 can be equipped with a feature that allows it to use two separate power inputs. This can be ben- eficial for installation purposes when using thinner cables for easier installation and/or aesthetics. It is possible to use two completely independent power inputs, but keep in mind that then the DLM cannot be used and two separate RCD's must be used for each power line.
Page 37: Power Supply Cable Introduction
3.13 Power Supply Cable Introduction The power supply cable must be routed through the bottom of the charging station. Use the metal gland provided. The cable should be protected by the corrugated PVC pipe. The maxi- mum allowable cable thickness when the charging station is selected with a standard single power input option is 16 mm2.
Page 38: Lan Cable Connection (Optional)
3.16 LAN Cable Connection (optional) Danger: Before connecting the LAN cable, make sure that no current flows through the cable Power Supply. If the CityCharge Mini 2 charging station is equipped with a LAN op- tion, make sure you follow these procedures to route the cable cor- rectly in the charging station: 1.
Page 39: Gsm Modem Settings And Setup (Optional)
3.17 GSM Modem Settings And Setup (optional) The CityCharge Mini 2 charging station supports multiple communi- cation types: LAN, Wi-Fi, GSM/3G/4G. The charging station can be installed in a remote place and have a good communication speed through mobile network GSM/3G/4G communication. If the CityCharge Mini 2 is selected with the SM /3G/4G option, the additional equipment is installed in the charging...
Page 40 To set up the station for operation with GSM/3G/4G communication, the SIM card must be inserted into the modem: Using sharp object push SIM card tray release button. Take out the SIM card tray. Put the SIM card into the tray. Push SIM card tray into the modem.
Page 41: 3.18 Alternative Lan Connection
3.18 Alternative LAN Connection The charging station, which is equipped with a GSM/3G/4G communica- tion modem, can alternatively be connected via an Ethernet/ LAN cable. Simply plug the Ethernet/ LAN cable into the WAN port on the modem. WAN LED should light up and start flashing, indicating that communica- tion has started.
Page 42: Dynamic Load Management Wiring (Optional)
3.19 Dynamic Load Management Wiring (optional) Danger: Before connecting the Dynamic Load Management UTP cable, make sure that no power is flowing through the Power Supply cable. Turn off the power to the Charging Station. If the charger with DLM option is chosen, you will receive 3 pieces of split-core current transformers and a smart energy meter: Installation: Follow the steps below to install Dynamic Load Manage- ment correctly:...
Page 43 Connect phases L1, L2, L3 of the power supply and the neutral to the energy meter. Connect the wire to each phase: U1; U2; U3 with the smaller connectors 10/11; 12/13; 14/15. (Pins 10 and 11 are shorted. You can use either pin 10 or 11 for voltage measurement). Attach the current measuring transformers to the each phase inside the power distribution box.
Page 44 Make sure that the power supply cables of your building are not thicker than 24 mm, otherwise they will not fit into the current 24 mm transformer. Make sure, that the current transformer is closed, otherwise the current transformer will not work.
Page 45 Dynamic Load Management (DLM) requires additional wiring be- tween the Smart Energy Meter and the charging station. Use the standard UTP Ethernet cable( or RS-485 twisted pair cable) for the dynamic load management system: Contacts 22/23 are ModBus communi- cation contacts. Use the black color wire for the 22 contact and the red color wire for the 23 contact.
Page 46: Dynamic Load Management Connection Diagram
3.20 Dynamic Load Management Connection Diagram Principal Dynamic Load Management Wiring diagram is shown below: 23 - to the red wire inside the charger Wago connector. 22 - to the black wire inside the charger Wago connector. The smart energy meter is completely set up to work with the charging station.
Page 47: Initial Startup
Chapter 4 INITIAL STARTUP...
Page 48: First Time Start-Up
First Time Start-UP STEP 1: Turn on electronics circuit breaker. STEP 2: Close the service lid. STEP 3: Go to your power distribution box and turn on the circuit breaker and residual current breaker. STEP 4: Wait at least 5-10 min. for charger to boot-up. STEP 1...
Page 49: Charger Boot Sequence
If the charger has been installed correctly and all necessary circuit breakers have been turned on - then the charger should immediately illuminate the white "Elinta Charge" logo in the lower right corner of the screen. As shown below:...
Page 50 When the charging station decides to download the latest software version, the blue circle will "run in circles" until the download and installation process is complete. Usually, this process takes after a reboot or power failure. Normally, this step is skipped during the first boot-up.
Page 51 After these steps, the charging station should glow a constant color. The charging station screen will display "Ready". At this point, it is possible to use the charging station to charge the EV. Plug the charging cable into the charging station and the other end into the electric vehicle.
Page 52: Settings And Testing
Chapter 5 SETTINGS AND TESTING...
Page 53: Rcd Type B (Optional)
RCD Type B (optional) By default, CityCharge Mini 2 is provided with residual current cir- cuit breakers type A. This RCD type A ensures: The control and isolation of circuits. • The protection of people against direct and indirect contact. •...
Page 54: Rcd Type A And Type B Testing
RCD Type A and Type B Testing The CityCharge Mini 2 charging station is always supplied with two residual current circuit breakers (RCD), which should be test- ed every 3 months of use. To test the RCD, follow these steps: Stop all car charging.
Page 55: Dynamic Load Management Setup Online (Optional)
Dynamic Load Management Setup online (optional) Log in to your administrative elios.cloud website: Go to the Stations tab. Select the station whose power you want to regulate. Go to the Edit tab. At the bottom of the page, configure these settings: Balance Mode - how charger balances power: If selected: None - charger does not balance power at all.
Page 56 Maximum power (socket) - maximum amperage which is allowed to use by the socket. Maximum power (dynamic input) - Building circuit breaker nominal. Max amperage which is allowed to flow through circuit breaker. Maximum power (dynamic reserve) - Amperage reserve left for sud- den current spikes, when using home appliances.
Page 57: Payment Solution Using The Payter (Optional)
Payment Solution Using The Payter (optional) CityCharge Mini 2 charging stations can accept payments in two ways: Via the ElintaCharge app using a credit card. • With the Payter contactless payment terminal. • The CityCharge Mini 2 can be selected with a Payter contactless payment terminal located at the front of the charging station, just below the screen.
Page 58: Using The Payter Payment Terminal
Using The Payter Payment Terminal LED indicators Status DisplayBlue Backlight Contactless Symbol Triangle Button To start charging: connect the EV to the charging station. Take your contactless payment card and place it on the contactless symbol (3). The LED indicator (1) will light up and a beep will be heard. Remove the contactless card from the reader.
Page 59: Setting Up The Price Rules For Payter
Setting Up The Price Rules For Payter To set up the price for the charging service, you need to set the price parameters: Open the web browser and go to: elios.cloud. Log in to the Elios platform with your username and password. Navigate to the "Stations"...
Page 60 The payment tab will open with all available settings for the price setting: Currency - The currency in which the client will be charged. Initial price - The price which the client will be charged just for con- necting to the charging station. Price per minute - The cost of each minute spent charging.
Page 61 Save the changed settings with the "Save to this" button or alter- natively, if you want to save the same settings for all chargers in the same group, with the "Save to group" button. Lastly, the charging station needs to be set as "paid" so it can use the settings you made earlier.
Page 62: Troubleshooting
Chapter 6 TROUBLESHOOTING...
Page 63 The table below lists the most common solutions to problems: Charging station CityCharge Mini 2 Troubleshooting Table Problem Possible cause Troubleshooting Charging station not func- No power to charg- Open charging station tioning. Screen shows noth- ing station. Or RCD / service doors.
Page 64 If possible, try the charging station with a different EV. If the problem per- sists, contact technical support at Elinta Charge. The charging station flashes The charging station Cheque the charging sta- red. EV cannot be charged. has an error.
Page 65: Warranty
Chapter 7 WARRANTY...
Page 66: Warranty Rules And Conditions
All non-functioning chargers (or parts) are considered the property of Elinta Charge and must be returned to Elinta Charge when re- placement chargers (or parts) come in for replacement. The warranty is valid when installed by a certified electrician who has installed the charger in accordance with these installation in- structions.
Page 67: Not Included Into The Warranty
Contact the technical service Elinta Charge, tel. +370 653 66633 or +370 615 71604 or support@elintacharge.com. When registering a fault, have the serial number of the charg- ing station, the device name, and a detailed description of the fault ready.
Page 68: Final Thoughts
If you have any questions about the use or installation of the charging station, please contact the company that installed the unit or the technical support department of Elinta Charge. This document does not limit the rights of the consumer to the warranty if the purchased product (device) is of poor quality.
