Goalzero SHERPA UI Quick Start Manual

Get to Know Your Gear

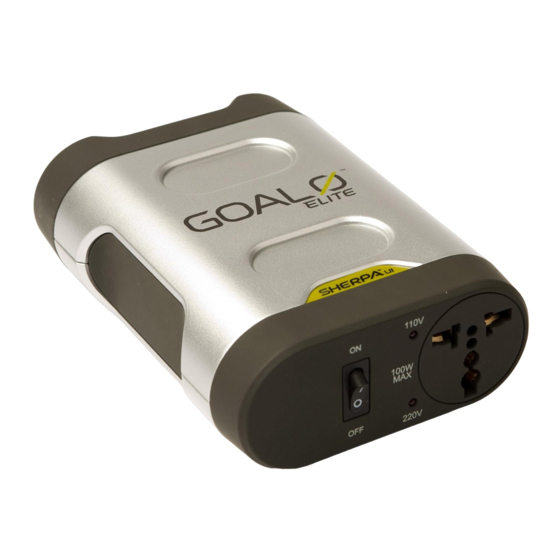

The SHERPA UI rests on top of the SHERPA
Make sure to flip the power switch to on before use.
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Attach the SHERPA UI power cord to the chaining port of the SHERPA power pack.
3. Turn the SHERPA power pack on.
4. Turn the SHERPA UI to on.
5. Ensure it is on the right voltage setting and plug in your device.
How to Use Your Gear
Power switch
Push the rocker switch to the ON position to use the SHERPA UI with
2 or 3 pronged devices.
Plug
The universal outlet accepts all common Western, European, and
Asian plug types.
SECURE IT
Voltage
A green light indicates which voltage (110 or 220) is selected.
power pack and plugs into the back.
To change the voltage flick the switch found on the back of the
SHERPA UI under the rubber stopper.
POWER IT
Chain
The SHERPA UI is NOT a battery. It is meant for use with the
GOAL ZERO power packs. Plug it into the chaining cable that
USE IT
comes with the Sherpa power pack in order to use it.
Allows you to use AC plugs at
Cooling
110-220V and 100 Watts.
There's no need to worry about your SHERPA UI over-heating.
It comes with a built-in fan to keep it cool.
110V
ON
100W
MAX
OFF
220V
Technical Specs
Usage
Use with the following:
SHERPA 50 or SHERPA 120
Input
12V port Chaining port
11-14V, 10A max (120W)
Output
AC multi-standard outlet 110/220VAC, user switchable
100W max
General
Weight .8 lbs (0.36 kg)
Dimensions
6x4x2 in (15.2x10x5 cm)
Warranty 12 months
Operating usage temp. 32-104°F (0°-40°C)
Comes With:
SHERPA UI
12V male car adapter
