EE Systems Group eAmp-Power Installation Instruction

eAmp-Power/EE515PWA
The versatile eAmp-Power is a DC power supply combined with 15/35W PA
Ampflier. It is designed for stand alone operation such as PA/BACKGROUND
MUSIC, PHONE/PAGING and ANNUNCIATION SYSTEM (FIG1) and it also
interfaces well with our eVoxcon/EE508VIF or Voxbox/EE518 voice module
for enhancement functions (FIG2). Before powering the system on, make
sure all wiring and devices connection are correct, also suggest the main
volume control should be tuned down to minimum level. Refer to (FIG3) for
speaker settings and to (FIG4) for multiple commercial applications.
110V AC
14-19V AC /40VA+
or
12-24V DC/2A+
Specification
Power Supply
Power Source:
AUX Output Voltage:
AUX Output Current:
Battery Charger:
LEDs Indication:
4978 Santa Anita Ave. Temple City, CA 91780
Installation Instruction
EE515PWA
G
Y
AC/DC BAT AUX
+ - +
+
12V DC
4-7AHRS Battery

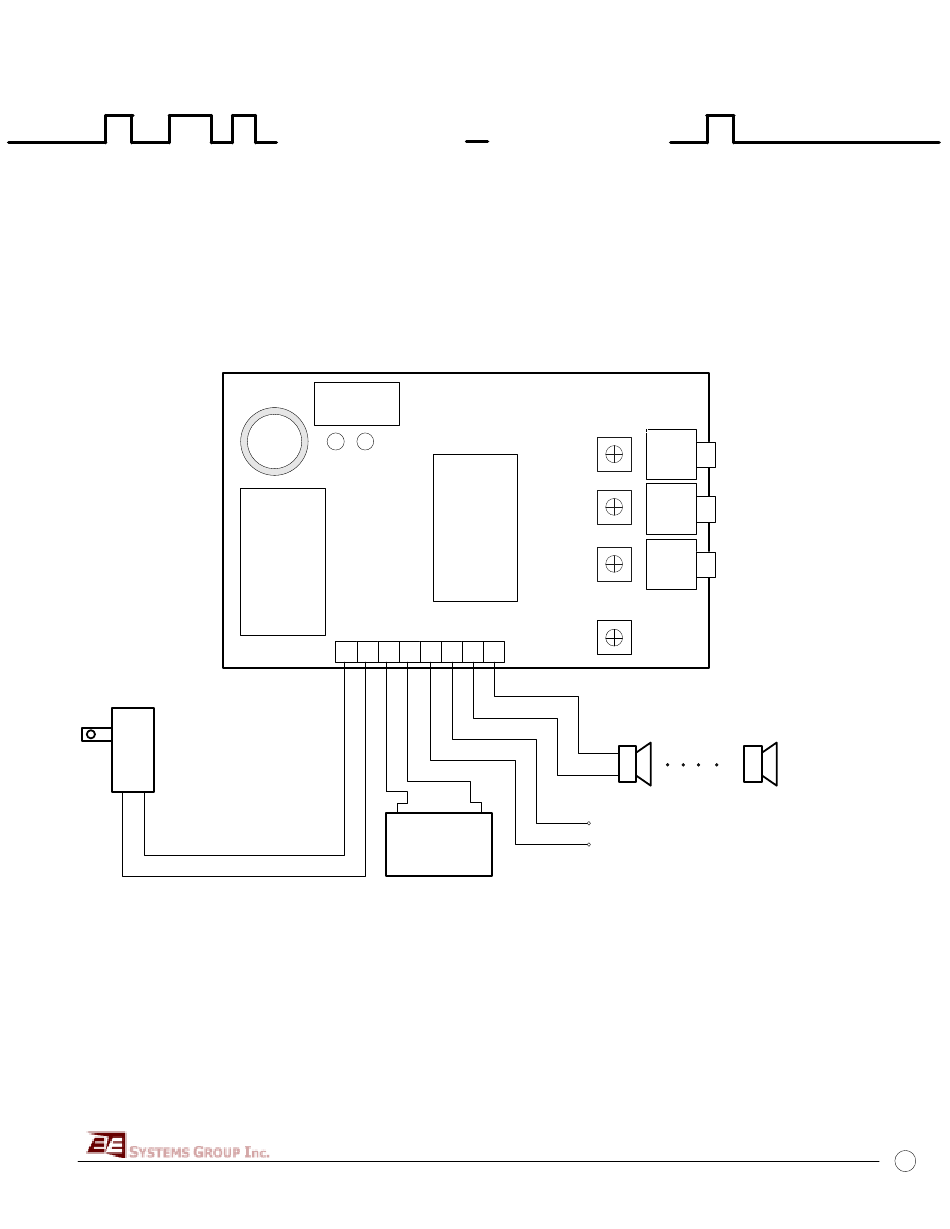

( FIG 1 )
DC: 12 – 24 VDC,
AC: 14 – 18 VAC
13.5 VDC
1.5A
13.5 VDC 50~300mA
G - External power source engage
Y - Low battery in charging
WWW.EESGI.COM .
Phone Number: 1-877-579-3889
PA Amplifier with DC Power Supply
MIC V-CTL
Line 1
V-CTL
Line 2
V-CTL
Main Volume Control
SPK
- - +
-
- 13V DC/1.5A
(EE508VIF, EE532EXP, EE518 etc)
+
Audio PA AMP
Operating Voltage:
Current:
MIC Input:
Line-in Impedance (2):
Frequency Response
Speaker Output:
Dimension:
.
Fax Number: (626) 452-9194
MIC IN
LINE IN 1
LINE IN 2
4Ω-250Ω
Speaker
( FIG 3 )
Other Devices
12 – 24 VDC
60 mA Standby 800 mA Operate
1K / 100 mV
600 ohm / 0.5V+
30Hz ~ 30kHz
15W / 8 ohm 30W / 4 ohm
2" X 3" X 0.75"
Rev EE/eAmp-Power_INSTR 04/2007 1/5
(Part No: EE-EE515PWA)
