Summary of Contents for Joi JOV-14A

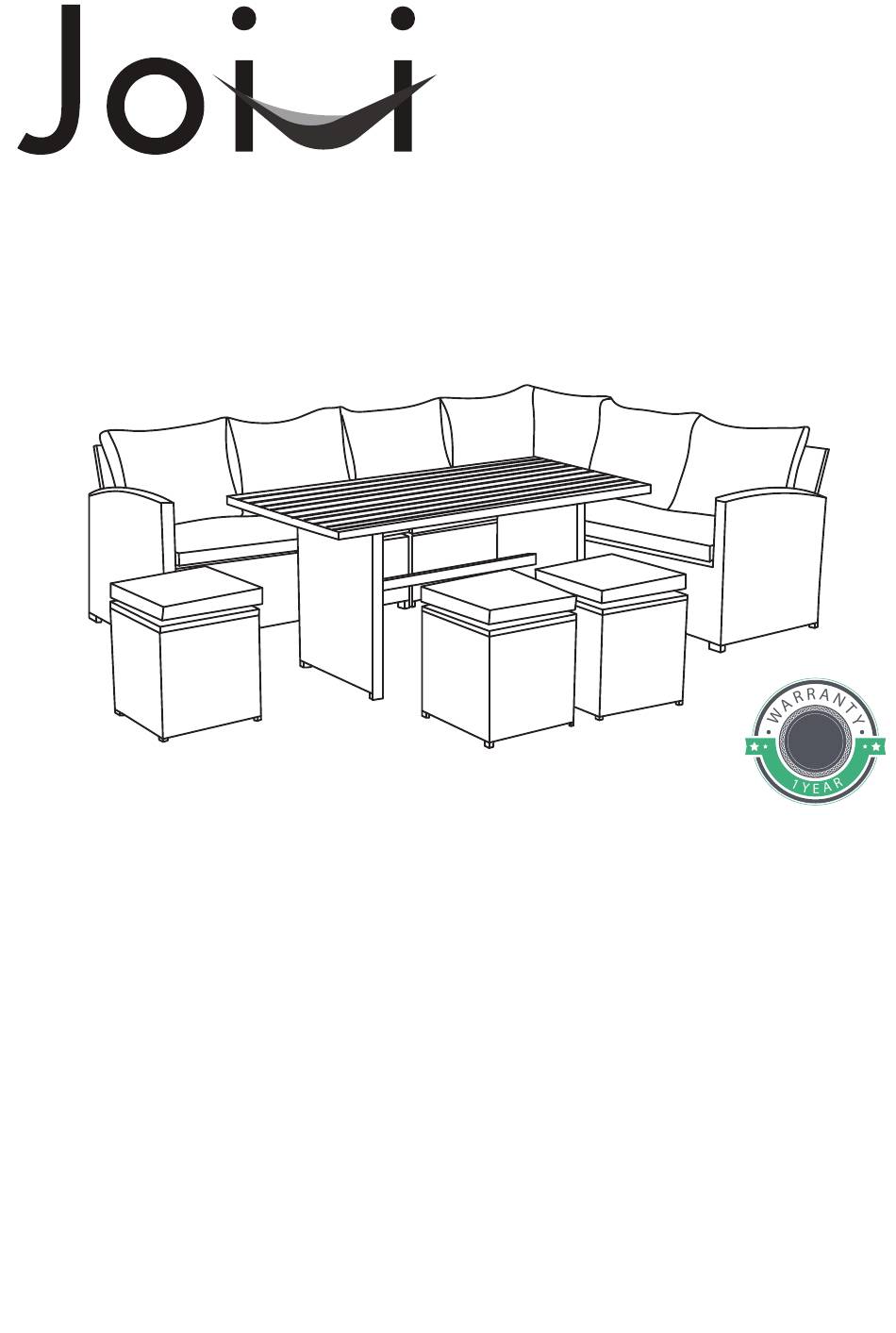

- Page 1 Sofa Set Happy? Please leave us a review! You can make others happy too!
-
Page 2: At The End Of The Season
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Safety For domestic use only. Don't tighten all the bolts before the product is fully assembled. It would be useful to ask someone to help you assemble the product. ... - Page 3 Tips for Cushions In order to compress the package, we put the cushions in the gap of some parts. So there may be crinkle on the fabric. Don’t worry. Just flap every corner of the cushion evenly and it will get back into its original shape soon. - 2 -...
- Page 4 COMPONENT LIST - RIGHT CORNER SOFA Item Reference Description Qty. Image Back Right Armrest Seat Base Side Panel Side Panel M6*35 Head Cap Screws Washer Allen Key Back Cushion Seat Cushion - 3 -...
- Page 5 NOTE: Do NOT tighten any screws fully first until you have tightened all the screws. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned, loosen the screws and tighten sequentially. If the Sofa is not stable it could lead to damage to the product. Attach the Seat Base (C) to the Side Panel (K1) by securing with M6*35 Head Cap Screws (L) and Washers (M).
- Page 6 Attach the Right Armrest (B1) to the Side Panel (K1) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 5 -...
- Page 7 Attach the Side Panel (G) to the Side Panel (K1) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 6 -...
- Page 8 Attach the Back (A1) to the Seat Base (C) and the Side Panel (G) and the Right Armrest (B1) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 7 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 7 -...
- Page 9 Tighten all 14 Screws into place with Allen Key (N). NOTE: IF ANY SCREW HOLES CANNOT BE ALIGNED, LOOSEN ALL THE SCREWS AND GO BACK STEP 1 AND RESTART ASSEMBLY. Place the Sofa on a level surface. Place Back Cushions (E)and Seat Cushion (F) on the sofa and your sofa is ready for use.
- Page 10 COMPONENT LIST - LEFT CORNER SOFA Item Reference Description Qty. Image Back Left Armrest Seat Base Side Panel Side Panel M6*35 Head Cap Screws Washer Allen Key Back Cushion Seat Cushion - 9 -...
- Page 11 NOTE: Do NOT tighten any screws fully first until you have tightened all the screws. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned, loosen the screws and tighten sequentially. If the Sofa is not stable it could lead to damage to the product. Attach the Seat Base (C) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M).
- Page 12 Attach the Left Armrest (B) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 11 -...
- Page 13 Attach the Side Panel (G) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 12 -...
- Page 14 Attach the Back (A) to the Seat Base (C) and the Side Panel (G) and the Left Armrest (B) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 7 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 13 -...
- Page 15 Tighten all 14 Screws into place with Allen Key (N). NOTE: IF ANY SCREW HOLES CANNOT BE ALIGNED, LOOSEN ALL THE SCREWS AND GO BACK STEP 1 AND RESTART ASSEMBLY. Place the Sofa on a level surface. Place Back Cushions (E) and Seat Cushion (F) on the sofa and your sofa is ready for use.
- Page 16 COMPONENT LIST - MIDDLE CORNER SOFA Item Reference Description Qty. Image Back Left Armrest Seat Base Side Panel Side Panel M6*35 Head Cap Screws Washer Allen Key Back Cushion Seat Cushion - 15 -...
- Page 17 NOTE: Do NOT tighten any screws fully first until you have tightened all the screws. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned, loosen the screws and tighten sequentially. If the Sofa is not stable it could lead to damage to the product. Attach the Seat Base (C) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M).
- Page 18 Attach the Left Armrest (D) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 17 -...
- Page 19 Attach the Side Panel (G) to the Side Panel (K) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 18 -...
- Page 20 Attach the Back (A) to the Seat Base (C) and the Side Panel (G) and the Left Armrest (D) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 7 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 19 -...
- Page 21 Tighten all 14 Screws into place with Allen Key (N). NOTE: IF ANY SCREW HOLES CANNOT BE ALIGNED, LOOSEN ALL THE SCREWS AND GO BACK STEP 1 AND RESTART ASSEMBLY. Place the Sofa on a level surface. Place Back Cushions (E)and Seat Cushion (F) on the sofa and your sofa is ready for use.
-
Page 22: Connecting Rod
COMPONENT LIST - TABLE Item Reference Description Qty. Image Table top Leg Panel Connecting Rod M6*20 Head Cap Screws Washer Allen Key NOTE: Do NOT tighten any screws fully first until you have tightened all the screws. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned, loosen the screws and tighten sequentially. - Page 23 Attach the two leg panels (I) to the Table top (H) by securing with M6*20 Head Cap Screws (T) and Washers (M). Do this in 4 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 22 -...
- Page 24 Attach the connecting rod (R) to the two leg panels (I) by securing with M6*20 Head Cap Screws (T) and Washers (M). Do this in 2 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 23 -...
- Page 25 Tighten all 8 Screws into place with Allen Key (N). NOTE: IF ANY SCREW HOLES CANNOT BE ALIGNED, LOOSEN ALL THE SCREWS AND GO BACK STEP 1 AND RESTART ASSEMBLY. Place the Table top on a level surface. Your table is ready for use. - 24 -...
- Page 26 COMPONENT LIST - OTTOMAN*3 Item Reference Description Qty. Image Top Panel Leg Panel Leg Panel M6*35 Head Cap Screws Washer Allen Key Cushion NOTE: Do NOT tighten any screws fully first until you have tightened all the screws. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned, loosen the screws and tighten sequentially.
- Page 27 Attach the Leg Panel (O) to the Leg Panel (P) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 4 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 26 -...
- Page 28 Attach Top Panel (J) to the Leg Panel (O)&(P) by securing with M6*35 Head Cap Screws (L) and Washers (M). Do this in 4 places. NOTE:DO NOT TIGHTEN THE SCREWS COMPLETELY. - 27 -...
- Page 29 Tighten all 6 Screws into place with Allen Key (N). NOTE: IF ANY SCREW HOLES CANNOT BE ALIGNED, LOOSEN ALL THE SCREWS AND GO BACK STEP 1 AND RESTART ASSEMBLY. Place the ottoman on a level surface and adjust height for balance . Place the cushion (Q) on the ottoman and your ottoman is ready for use.
- Page 30 SECTIONAL SOFA CONNECTOR MANUAL Sectional outdoor wicker patio sofa is very light weight in nature and subject to movement. These high quality fasteners prevents movement between modules to maintain the aesthetically good look of your modular patio furniture set. Two fasteners are recommended between Two adjoining module.
