Summary of Contents for METALLIC LADDER Aircraft Maintenance Ladder

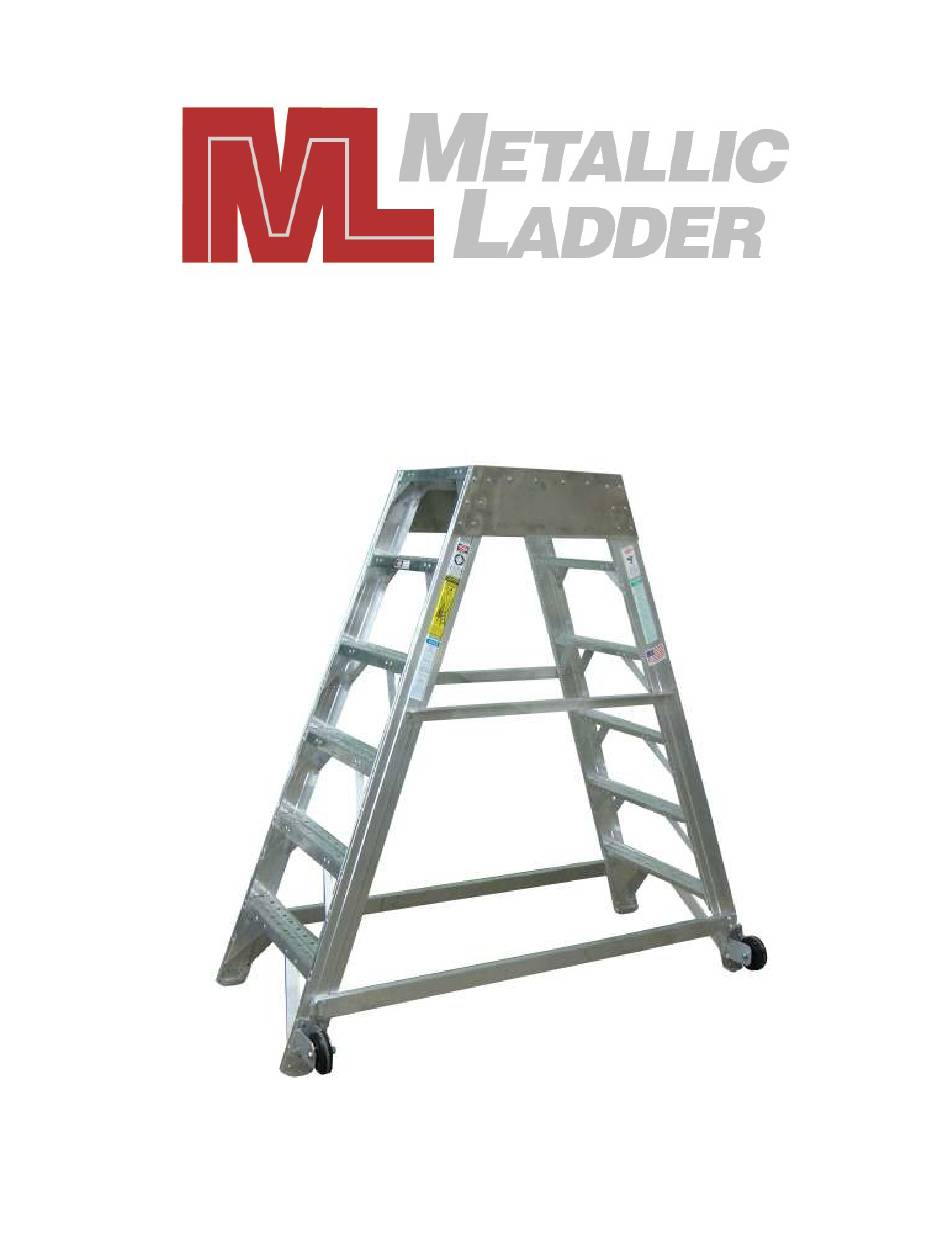

- Page 1 Aircraft Maintenance Ladder Assembly Instructions 1 of 3...
- Page 2 PARTS LIST ITEM NUMBER DESCRIPTION 1/4” x 7/8” Hex Head Cap Screw, Hex Elastic Lock Nut & Flat Washer 1/4” x 7/8” Hex Head Cap Screw, Hex Elastic Lock Nut & Flat Washer 3 8 5/16” x 1 3/4” Hex Head Cap Screw, Hex Elastic Lock Nut &...
- Page 3 PLEASE READ INSTRUCTIONS BEFORE ASEMBLING LADDER STEP #1 Remove banding and loose parts from frame or ladder STEP #2 Lie ladder fronts on floor with wheel assemblies facing up. (If wheel assemblies are not included, ladder steps should be perpendicular to the floor surface.) STEP #3 Attach one Head Side Plate (Item #4), two Head Side Plate Shims (Item #5) and one Back Up Plate (Item #6) using Twelve 1/4”...
