Summary of Contents for healthtec 56221

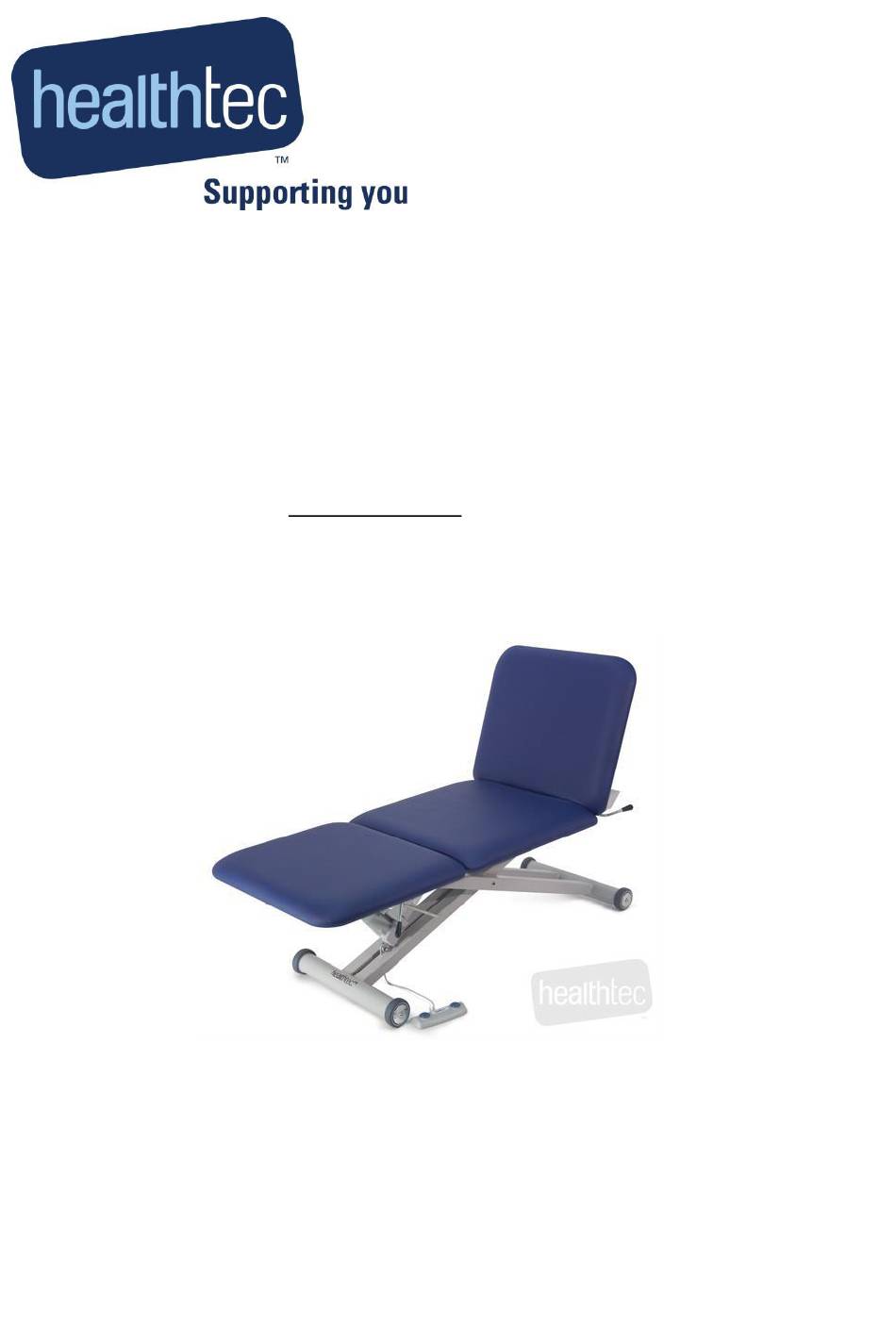

- Page 1 User Manual for Southern Cross Universal Examination Table MODEL: 56221 SERIAL: NEED HELP? FREECALL 1300 362 923 Page 1. © Healthtec Pty Ltd. 2013 www.healthtec.com.au...
-
Page 2: Table Of Contents
The specifications put forth in this manual were in effect at the time of publication. However, due to Healthtec’s policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. -
Page 3: Product Specifications
The basic specifications are shown below and include: • Dimensions in millimeters (mm) • Range of movement in millimeters (mm) and degrees (º) • Lifting Capacity is 250KG • Safe Working Load (SWL) is 400 KG Page 3. © Healthtec Pty Ltd. 2018 www.healthtec.com.au... -
Page 4: Unboxing And Installation
• Be careful not to cut into the box as damage to the upholstery may occur. • Lift the product from the metal base of the table assembly rather than the table top. There is no further assembly required on Healthtec™ tables. The electric actuators are factory adjusted and do not require any further adjustment. -
Page 5: Operating Instructions
Simply pull the section upwards to the desired height. There is no need to release the locking handle to raise a section. Allow the locking handle to return to the locked position. Page 5. © Healthtec Pty Ltd. 2018 www.healthtec.com.au... -
Page 6: Maintenance
10–12 weeks depending on use. Recommended lubricant is CRC-TAC2 which is available at most local hardware and automotive stores. Lubricate motor pins with CRC TAC2 Lubricate center pin with CRC--TAC2 Lubricate side block tracks with CRC--TAC2 Page 6. © Healthtec Pty Ltd. 2018 www.healthtec.com.au... -
Page 7: Vinyl Care
Never use furniture polishes, abrasive cleaners, steel wool or cleaners containing solvents as these items can cause damage to the vinyl surface. Do not use alcohol or aromatic solvents to clean upholstery. Page 7 © Healthtec Pty Ltd. 2013 www.healthtec.com.au... -
Page 8: Trouble Shooting Guide
1. Clean lock bars with alcohol wipes. 2. Rub around the lock bars with a light grade of sandpaper. 3. Replace lock tabs. If unit still does not function call 1300 362 923 for service advice. Page 8 © Healthtec Pty Ltd. 2013 www.healthtec.com.au... -
Page 9: The Healthtec Warranty
12. The warranty does not extend to or bind or obligate Healthtec to pay any consequential damage or expenditure to business or property caused as a result of any defect in the product. - Page 10 WARRANTY CLAIM PROCESS To obtain service from Healthtec or an authorised agent under this warranty the owner must abide by the following process: STEP 1 — REPORT A written report of the problem encountered must be made by the customer within seven (7) days of first becoming aware of the problem;...
