Configuration Manual Web Interface

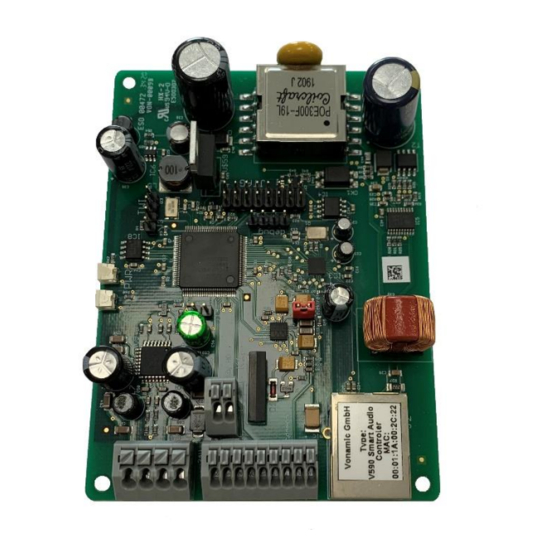

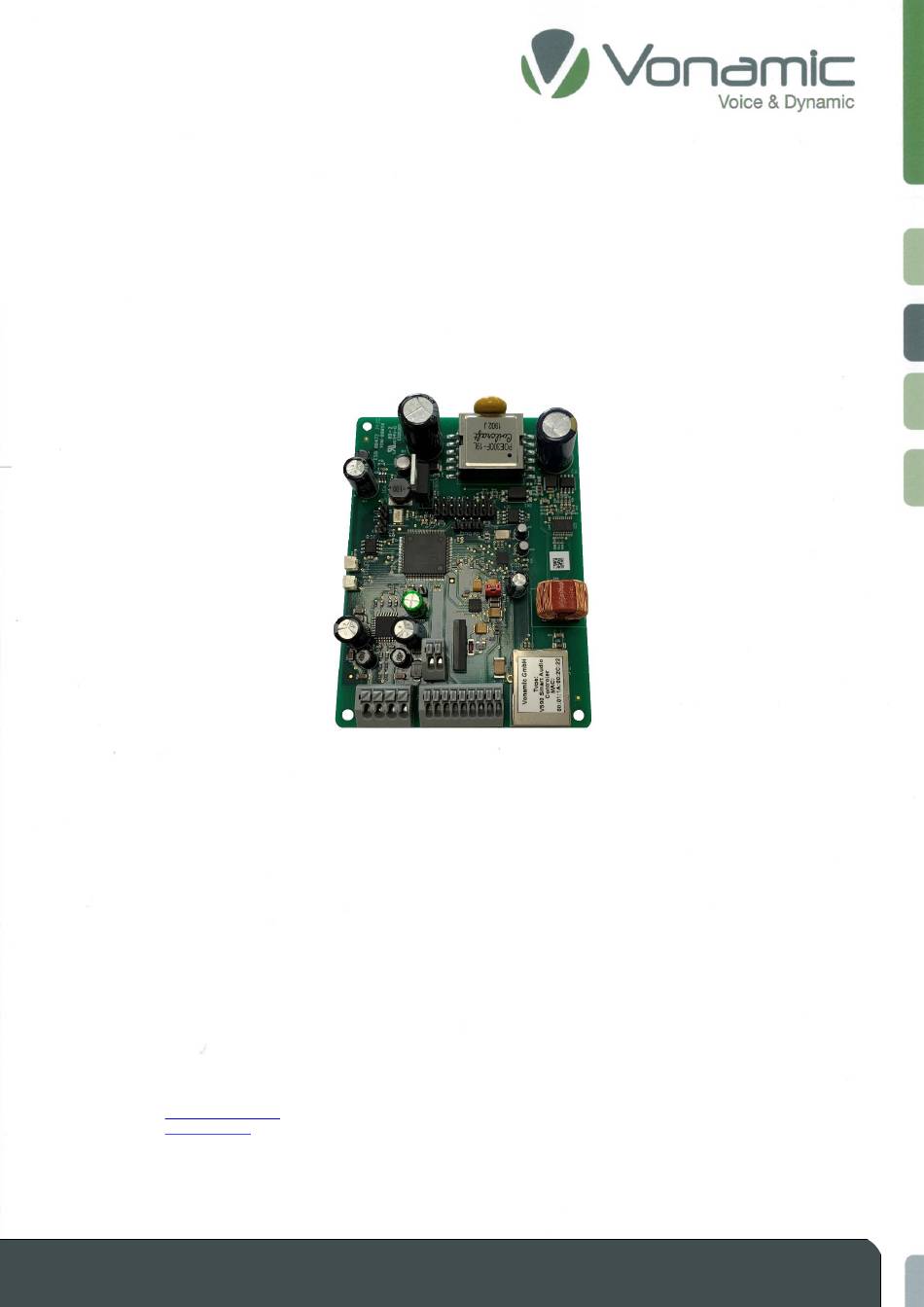

VIPCOS 590 Smart Audio Controller
L. No. 10294 (old: 702590)
communication – simple – flexible – unlimited
Subject to technical modifications
1
Advertisement
Table of Contents
Summary of Contents for Vonamic VIPCOS 590
- Page 1 Configuration Manual Web Interface VIPCOS 590 Smart Audio Controller L. No. 10294 (old: 702590) Vonamic GmbH Im Lipperfeld 27 46047 Oberhausen Germany Phone: +49 (0) 208 / 30 99 06 - 0 Fax: +49 (0) 208 / 30 99 06 - 99 Web: http://www.vonamic.com...
-
Page 2: Table Of Contents
Set up an incoming SIP connection ................27 Party line connection ......................28 Time synchronization (NTP) ....................29 Amplifier lines ........................29 Store and restore of configuration files ................30 Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 3: Introducing The Vipcos Web Interface
1. Introducing the VIPCOS Web Interface 1.1 Overview This document describes the detailed configuration of the VIPCOS 590 Smart Audio Controller using the internal web interface. The web interface is divided into six segments Network Settings, Web / SIP settings, Device Settings, Time Synchronization, Key Configuration and Group selection. -
Page 4: How To Get Access To The Web Interface
Login: User (limited write) / admin / superadmin Password: Vonamic / Vonamic / Vonamic Note: If you are using a system that has already been configured, please use the IP address range of your system. The examples in this manual use the IP address range of the factory default. - Page 5 Check to see if there is an IP conflict issue. Clean browser cookies and temporary internet files. Check your PC settings again and repeat step 2. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
- Page 6 Read / Write Superadmin Read / Write / Password Control To get the full access, login as administrator by entering Username: Admin and Password: Vonamic. Note: If you are using a pre-configured system, please use the current passwords. If you are not sure, ask your system administrator.
-
Page 7: Distribution Of The Web Interface
Note: After saving, please wait with further settings until the browser has loaded the page completely. Some settings require a restart of the device so that the charging process can be delayed. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 8: Web / Sip Settings
SIP server, the ending is different. (e.g. for Call number 1001: 1001@local.net) Password: Password for registration on the SIP server. (The login status is shown behind the input field. No automatic refresh.) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 9: Device Settings
Setting the operating mode of the internal relay. (On, Off, Answer, Online) Delay: Sets the delay time of the relay. Values between 0 = no follow-up time up to 255 minutes can be set. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 10: Time Synchronization
2.4 Time Synchronization NTP Server: IP address of the NTP server. Date / Time: current date and time display. (no automatic refresh) GMT: Time Zone. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 11: Key Configuration
Enter repetition number. 0 = no repetition (max. 98, 99 = endless) Line selection: Setting the playback lines of a V1000 IP 400W amplifier. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... - Page 12 Increase / decrease the volume of the internal speaker. Each actuation increases / decreases by 1 dB. Alarm hup: Stops alarm playback. Pressing it will interrupt a previously started alarm. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
-
Page 13: Group Selection
Chapter 3 contains a description of this function. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 14: Configuration Description
VIPCOS System. First create an environment as described in chapter 1.2 and get access to the web interface of first V590: Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 15: Set And Adjust Ip
A second device is required for later examples. Please repeat the previous steps and set the IP address / subnet mask of a second V590 to 192.168.100.60 / 255.255.255.0. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 16: Setup And Adjust Id
The device will restart and apply the changes. The restart takes <10s. A second device is required for later examples. Please repeat the previous step and set the device ID of the second V590 to 1591@local.net. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 17: Determine Device Ip-Address (Troubleshooting)
0 or a very low value, it can give the impression that the connection has not been established. We therefore recommend setting a volume of: Spk. Vol(dB): (max. 63) Mic. Vol(dB): 45 (max. 72) Audiobw: 8 kHz Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 18: Direct Call Connection
If you now hold down the button 1 on ID 1590, the device establishes a unicast connection to the device with ID 1591 and maintains the connection for the duration of the button press. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 19: Group Call Connection
A total of 250 groups are available in the VIPCOS system. Each VIPCOS device can be a participant in all groups, including several at the same time. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 20: Set Up A Group Call
It is also possible to use the sounds as pre-tones. In this case, the sound is played before the live announcement. For control purposes, the device also reproduces the sound in the internal loudspeaker. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 21: File Format Of The Sound Files
V590 can use them. We are happy to convert your sound files into the right format for you. Talk to your Vonamic contact person or write us an email to support@vonamic.com. We would be happy to make you an individual offer. -
Page 22: Playback Of Sound Files In Direct And Group Calls
Under the menu item "Repeat" you can set the repetitions for the sound function "Tone". A single repetition means that the sound file is played twice in total. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... - Page 23 By holding key 2 on device ID 1590 the Pre-Tone playback in group 10 is started. The Pre-Tone can also be heard in the internal speaker. As soon as playback is complete and the button is still pressed, the live announcement is started. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
-
Page 24: Sip Connection
• RFC4566 compliant SDP (Session Description Protocol) • „Loose routing” and „strict routing” • „Early Media support” • „Offer/Answer” (RFC3264) • STUN Client (NAT traversal) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 25: Sip Server Registration
RFCs and repeat steps 1 - 4 or contact us at support@vonamic.com. When registration is successfully completed, you can configure SIP calls. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 26: Set Up An Outgoing Sip Connection
V590 loudspeaker and the connection will be terminated. You can actively end the call by executing the "Hangup" function on key 4. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 27: Set Up An Incoming Sip Connection
The key number you enter in this field must be unconfigured and is then used to store the last unknown number. The call function of the corresponding key is automatically switched to "SIP Call". Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 28: Party Line Connection
The button becomes active as soon as the corresponding device has been added to the party by the master. Holding the button starts a group call to the current party. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 29: Time Synchronization (Ntp)
If you do not configure any line information for the connection, the internal line selection of the V1000 is used. This can be set separately on the V1000 web interface. Confirm your entry with "Submit". Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 30: Store And Restore Of Configuration Files
IP address. In this case you have to enter the new address in your browser line in order to be able to call up the device website. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
