Configuration Manual Web Interface

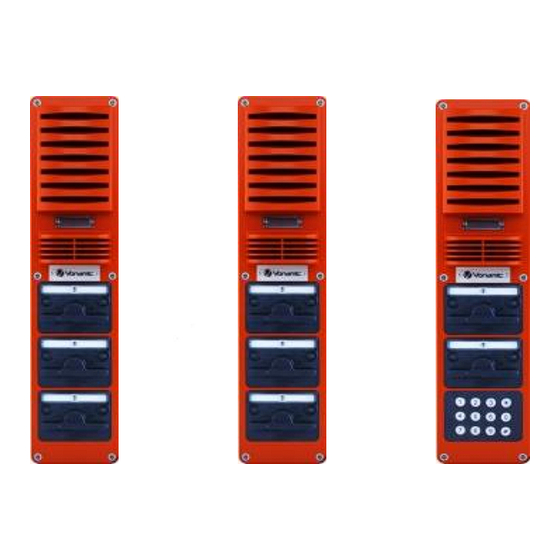

VIPCOS 615 Industrial Call Station
Аdditional housing
Industrial Call Station
V615
6 Lines
L. No. 703101
communication – simple – flexible – unlimited
Intercom Call Station
V615
6 Lines
With dial-pad
L. No. 703200
L. No. 703100
V615
Subject to technical modifications
1
Advertisement
Table of Contents
Related Manuals for Vonamic VIPCOS 615
Summary of Contents for Vonamic VIPCOS 615

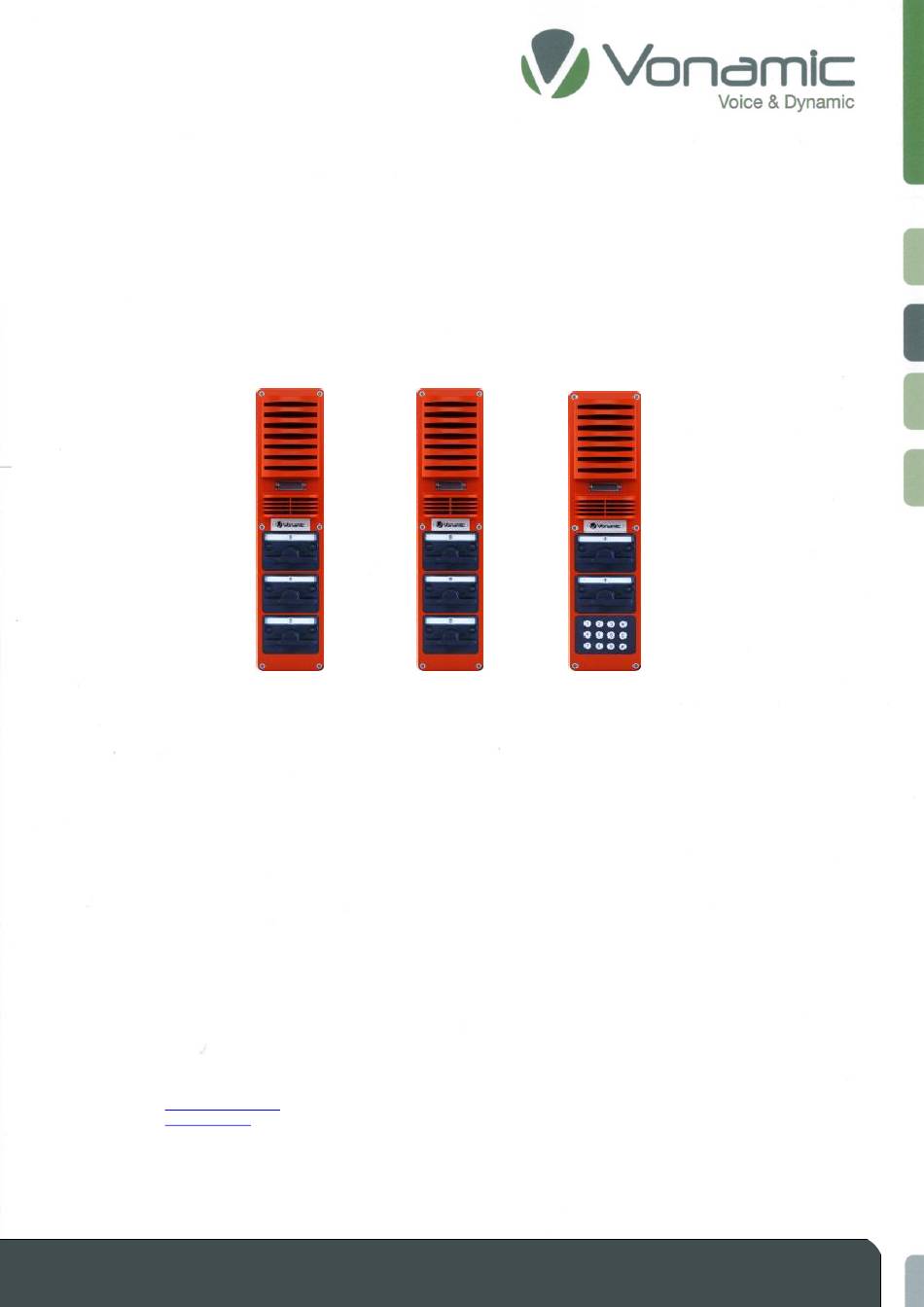

- Page 1 Configuration Manual Web Interface VIPCOS 615 Industrial Call Station Аdditional housing Intercom Call Station Industrial Call Station V615 V615 V615 6 Lines With dial-pad 6 Lines L. No. 703200 L. No. 703100 L. No. 703101 Vonamic GmbH Im Lipperfeld 27...
-
Page 2: Table Of Contents
Set up Megafon ........................29 3.11 Time synchronization (NTP) ....................30 3.12 Amplifier lines ........................30 3.13 Store and restore of configuration files ................31 Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 3: Introducing The Vipcos Web Interface
1. Introducing the VIPCOS Web Interface 1.1 Overview This document describes the detailed configuration of the VIPCOS 615 Industrial Call Station using the internal web interface. The web interface is divided into six segments Network Settings, Web / SIP settings, Device Settings, Time Synchronization, Key Configuration and Group selection. -
Page 4: How To Get Access To The Web Interface
Login: User (limited write) / admin / superadmin Password: Vonamic / Vonamic / Vonamic Note: If you are using a system that has already been configured, please use the IP address range of your system. The examples in this manual use the IP address range of the factory default. - Page 5 Check to see if there is an IP conflict issue. Clean browser cookies and temporary internet files. Check your PC settings again and repeat step 2. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
- Page 6 Read / Write Superadmin Read / Write / Password Control To get the full access, login as administrator by entering Username: Admin and Password: Vonamic. Note: If you are using a pre-configured system, please use the current passwords. If you are not sure, ask your system administrator.
-
Page 7: Distribution Of The Web Interface
Note: After saving, please wait with further settings until the browser has loaded the page completely. Some settings require a restart of the device so that the charging process can be delayed. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 8: Web / Sip Settings
SIP server, the ending is different. (e.g. for Call number 1001: 1001@local.net) Password: Password for registration on an SIP server. (The login status is shown underneath the input field. No automatic refresh.) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 9: Device Settings
Possible settings between 1 and 1440 minutes (24 hours). RelaisMode: Setting the operating mode of the internal 230VAC / 10A relay. (On, Off, Answer, Online) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 10: Time Synchronization
2.4 Time Synchronization NTP Server: IP address of the NTP server. Date / Time: current date and time display. (no automatic refresh) GMT: Time Zone. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 11: Key Configuration
10W / 40W amplifier. enter the key number of an unassigned key which you would like to use for the function. (requires the connection of an external loudspeaker. Pay attention to feedback.) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... - Page 12 Terminate a telephone connection. Press to end a phone call. Partyline: Answer button (slave) in a party. Party line connections are controlled by a master. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
-
Page 13: Group Selection
Chapter 3 contains a description of this function. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 14: Configuration Description
First create an environment as described in chapter 1.2 and get access to the web interface of first V615: Cat.5e Cat.5e 192.168.100.61 / 192.168.100.62 / 255.255.255.0 255.255.255.0 192.168.100.200 / ID: 1615 ID: 1616 255.255.255.0 Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 15: Set And Adjust Ip
A second device is required for later examples. Please repeat the previous steps and set the IP address / subnet mask of a second V615 to 192.168.100.62 / 255.255.255.0. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 16: Setup And Adjust Id
The device will restart and apply the changes. The restart takes <10s. A second device is required for later examples. Please repeat the previous step and set the device ID of the second V615 to 1616@local.net. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 17: Determine Device Ip-Address (Troubleshooting)
0 or a very low value, it can give the impression that the connection has not been established. We therefore recommend setting a volume of: Spk. Vol(dB): (max. 63) Mic. Vol(dB): 45 (max. 72) Wideband: active (8 kHz) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 18: Direct Call Connection
If you now hold down the button 1 on ID 1615, the device establishes a unicast connection to the device with ID 1616 and maintains the connection for the duration of the button press. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 19: Group Call Connection
A total of 250 groups are available in the VIPCOS system. Each VIPCOS device can be a participant in all groups, including several at the same time. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 20: Set Up A Group Call
• RFC4566 compliant SDP (Session Description Protocol) • „Loose routing” and „strict routing” • „Early Media support” • „Offer/Answer” (RFC3264) • STUN Client (NAT traversal) Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 21: Sip Server Registration
RFCs and repeat steps 1 - 4 or contact us at support@vonamic.com. When registration is successfully completed, you can configure SIP calls. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 22: Set Up An Outgoing Sip Connection
V615 loudspeaker and the connection will be terminated. You can actively end the call by executing the "Hangup" function on key 4. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 23: Set Up An Incoming Sip Connection
The call function of the corresponding key is automatically switched to "Telephone Call". Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 24: Party Line Connection
The button becomes active as soon as the corresponding device has been added to the party by the master. Holding the button starts a group call to the current party. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 25: Set Up 10W / 40W Amplifier
Every further answer resets the activation timer. After the timer has expired, the additional amplifier is automatically activated again. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 26: Keypad
6 direct selection buttons. Direct, group and SIP calls can be created with the keypad. If you have purchased a V615 industrial call station with keypad from Vonamic GmbH, the hardware and software modification has already been done by the manufacturer. If you have carried out the conversion yourself, make sure that the connector to the keypad is correctly inserted and that the keypad is screwed in securely. -
Page 27: How To Use The Keypad
If you want to use the keypad to connect to a call station that is already assigned a connection to another call station, this status is signaled by a permanent light on the "Dial" button (assigned message). Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 28: Set Up Relais
Puts the relay in the working position for the duration of an outgoing or incoming connection. Online: Puts the relay in the working position for the duration of the successful registration at the SIP server. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 29: Set Up Megafon
To be able to use the function, enter the key number of an unassigned key of the V615 in the "Megaphone key" field. After successful saving, this button is used for the live announcement from the internal microphone to the additional amplifier output. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 30: Time Synchronization (Ntp)
If you do not configure any line information for the connection, the internal line selection of the V1000 is used. This can be set separately on the V1000 web interface. Confirm your entry with "Submit". Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020... -
Page 31: Store And Restore Of Configuration Files
IP address. In this case you have to enter the new address in your browser line in order to be able to call up the device website. Subject to technical modifications communication – simple – flexible – unlimited © Vonamic GmbH 2020...
