Summary of Contents for Santiva Outdoors GOFR Cooler Cart

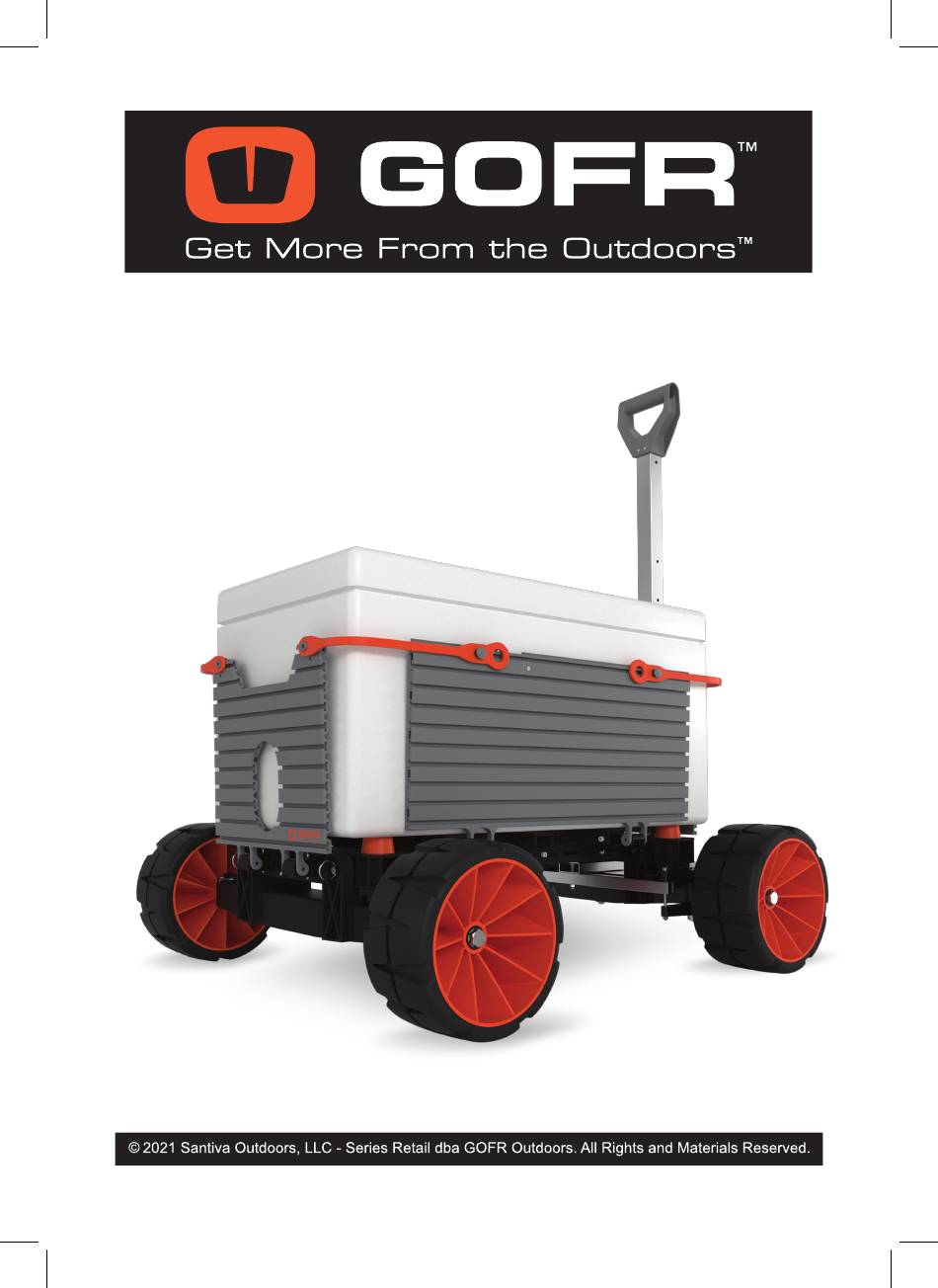

  • Page 1 GOFR Cooler Cart Owner’s Manual...

  • Page 2: Care Instructions

    GOFR Cooler Cart Owner’s Manual WARNING: Please read and understand all instructions. Failure to adhere to all instructions listed below could result in serious injury. Please take extra care. Do not place fingers, toes, or any other parts of the body near steering components while in use.
  • Page 3 GOFR Cooler Cart Owner’s Manual TOOLS : T1 #2 Philips-Head Screwdriver x 1 T2 5MM Allen key x 1 T3 19mm wrench x 1 T4 10mm wrench x 1 T5 GOFR Tool x 1 HARDWARE : A1 M12 110mm Wheel Bolts x 4...
  • Page 4 GOFR Cooler Cart Owner’s Manual PARTS : P6 Star Locks x 4 P7 Cooler Connectors x 4 P8 Handle Clip x 1 P9 Small Panel Extenders x 4 P10 Large Panel Extenders x 4 P11 Large Accessories Panels x 2...
  • Page 5 GOFR Cooler Cart Owner’s Manual STEP 1 Tips and Warnings: Gloves • Always use gloves when removing cooler feet. Remove Manufacturer’s Cooler Feet • Always wear eye protection. • Always set the cooler on a towel or cloth to protect the cooler Parts Needed: Flat Screwdriver (not and any work surface.
  • Page 6 GOFR Cooler Cart Owner’s Manual STEP 3A Adjust Chassis Length, and Center on Cooler. • For larger coolers, the GOFR chassis expands. • If your cooler requires more width, unscrew the pre-assembled bolts and nuts and using the graphics below expand the chassis to fit your cooler and then tighten bolts and nuts as shown.
  • Page 7 GOFR Cooler Cart Owner’s Manual STEP 4 Panel and Panel Extender Assembly • Attach the Small Panel Extenders (P9) to the Small Accessory Panels (P12). • Attach the Large Panel Extenders (P10) to the Large Accessory Panels (P11). • Use the parts/tools A5, A9, T2, and T5.
  • Page 8 GOFR Cooler Cart Owner’s Manual STEP 6 Panel Bumpers: NOTE – Some coolers have different shapes that affect how the Small Accessory Panels sit on the sides of the cooler. If the Small Accessory Panel does not sit flush then install the Panel Bumpers (P5).
  • Page 9 GOFR Cooler Cart Owner’s Manual STEP 8 Attach Rubber Feet • Attach the Rubber Feet (P3) as shown on the left. • Using screwdriver (T1) attach Rubber Feet (P3) into the chassis as shown. Use Foot Screws (A12) to attach and tighten only enough to slightly compress the rubber foot.
  • Page 10 GOFR Cooler Cart Owner’s Manual STEP 10 Assemble the Wheels • Place the Double Sealed Bearings (A3) on each side of the wheel. • Use Wheel Bolt (A1) and Nut (A2) to mount each tire. • Repeat to attach all wheels.
  • Page 11 GOFR Cooler Cart Owner’s Manual STEP 11 Correct Operation Of Wheel Locks Lock Unlock STEP 12 Axles To Chassis • Make sure wheel locks are engaged with lock pin facing rear. • Attach rear axle using Axle Pins (P11). • Attach front axles with aluminum bracket facing forward.
  • Page 12 GOFR Cooler Cart Owner’s Manual STEP 13 Attach Steering And Adjust Handle • Make sure wheel locks are engaged. • Attach rear axle using Axle Pins (P11). • Lock rear wheels once attached. • Attach front axles. Pull Out to Adjust Length...
