Summary of Contents for SensaTronics U

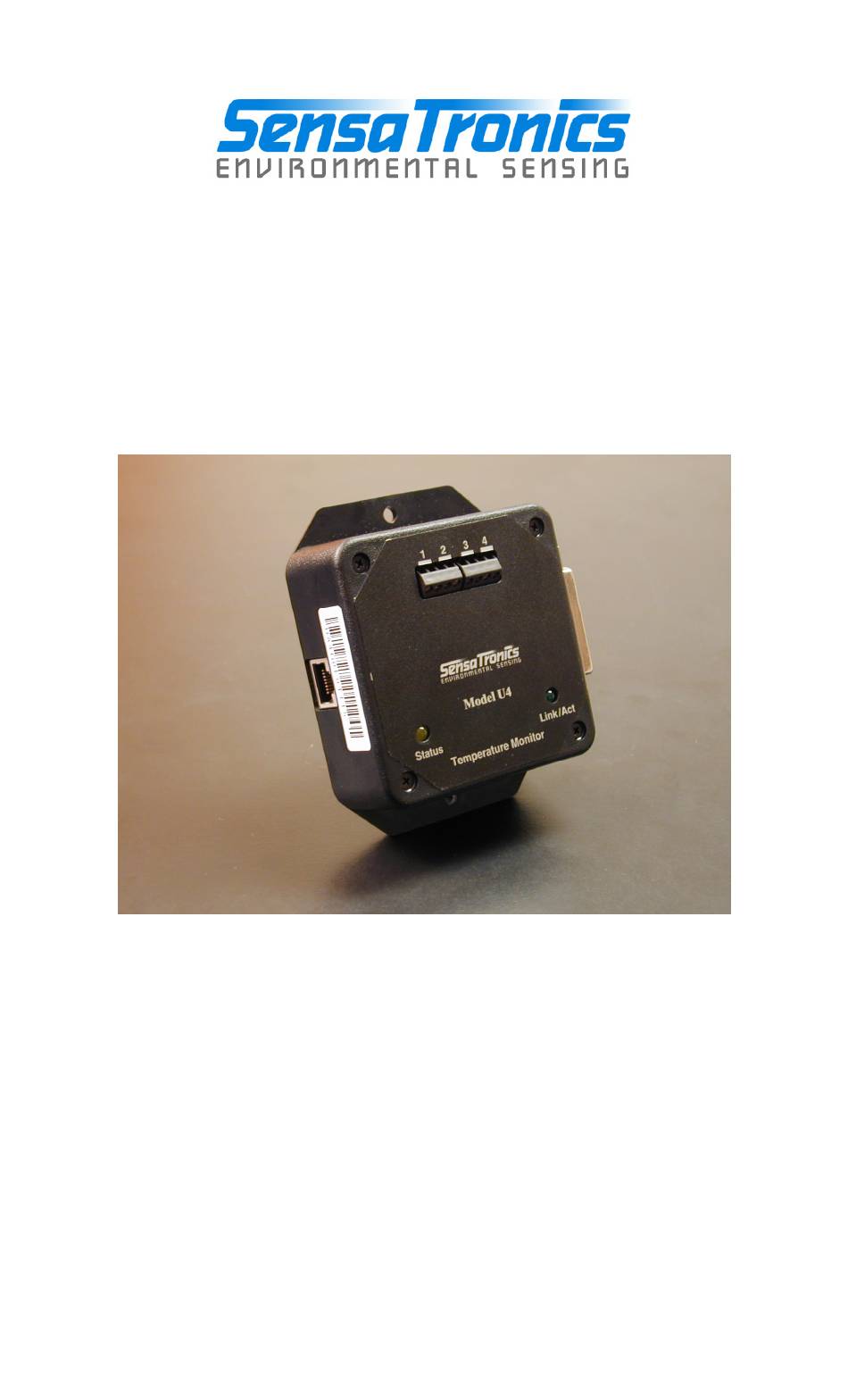

- Page 1 Model U Universal Monitor Device Manual Sensatronics 20A Dunklee Road Bow, NH 03304 (800) 633-1033 www.sensatronics.com...
- Page 2 All rights reserved. The information contained in this manual is subject to change without notice. Sensatronics reserves the right to make changes to equipment design or program components, as progress in engineering, manufacturing methods, or other circumstances may warrant. No responsibility is assumed for the use of software or equipment that is not supplied by Sensatronics.
- Page 3 All repairs must be performed by Sensatronics, or an authorized Sensatronics representative. UL Listing - U.S. and Canada This equipment uses a power supply that has been listed by Underwriter Laboratories, Inc. for use in the U.S. and meets requirements of the Canadian Standards Association CAN/CSA.
-
Page 4: Table Of Contents
Table of Contents TECHNICAL SUPPORT ___________________________________1 PRODUCT OVERVIEW ___________________________________2 ONITOR ROBES OFTWARE TECHNICAL SPECIFICATIONS ___________________________3 TANDARD EATURES ETAIL IAGRAM CONNECTING THE DEVICE ______________________________5 1. C ONNECT THE ONFIGURATION ABLE 2. C ONNECT THE EMPERATURE ROBES 3. C ONNECT THE OWER UPPLY 4. -
Page 5: Technical Support
Technical Support Sensatronics never charges for customer support. Everything you need to get started and to keep your Sensatronics solution operating smoothly is included with the cost of your purchase. Our highly skilled staff can answer your support questions directly or you can share ideas with other Sensatronics customers through our online bulletin board. -
Page 6: Product Overview
Probes are available separately to allow you to purchase just what you need according to the number of units that you are monitoring. The Model U is specifically designed to be used with our food-piercing and high temperature probes, and can also be used with our standard temperature probes and our cryo low-temperature probes. -
Page 7: Software
(www.sensatronics.com/nms/listing.php) to review the latest list of compatible software applications. Technical Specifications Standard Features The Model U Universal Monitor is equipped with the following: Range from -139°F to 572°F (-95°C to 300°C) • Network connection via Ethernet hub or switch •... -
Page 8: Detail Diagram
Detail Diagram Probe Connections Ethernet Configuration Connection Cable Connection Ethernet Link Status Indicator (Green) Activity Status Indicator Flanges for (Blinking Yellow) Mounting Sensatronics Model U Universal Monitor... -
Page 9: Connecting The Device
Connecting the Device Step 1. Connect the Configuration Cable A white configuration cable is supplied with the Model U Universal Monitor and plugs directly into the device. (This cable is only connected during the configuration process and does not need to remain connected during normal operation.) -
Page 10: Step 2. Connect Thet
Using the screwdriver included with your device, connect the first pair of probe wires to the retainer labeled 1. b. Slip each wire into the appropriate slot and tighten the coordinating screw. (Continue for all probes using the next respective retainer.) Sensatronics Model U Universal Monitor... -
Page 11: Step 3. Connect Thep
Step 3. Connect the Power Supply A power cord is supplied with each Model U Universal Monitor. a. Plug the round end of the cord into the jack on the side of the temperature monitor. b. Plug the wall transformer into a powered outlet. -
Page 12: Configuring The Device
Ensure that the power cord jack is connected to the Model U Universal Monitor and the wall transformer is plugged into a powered outlet. Sensatronics Model U Universal Monitor... - Page 13 Step 2. Configure the IP Address and Network Mask Press Enter to display the Main Menu and configure the unit: Press to display the IP Configuration Menu: Sensatronics Model U Universal Monitor...
- Page 14 Press then type your new IP address and press Enter Press , then type your new Network Mask and press Enter Sensatronics Model U Universal Monitor...
-
Page 15: Step 3. Name Thed
Step 3. Name the Device and the Probes We suggest that you name the unit and its associated probes with logical names for convenience (the default probe names are Probe1, Probe2, etc…) From the Main Menu, press B . changes. Sensatronics Model U Universal Monitor... -
Page 16: Step 4. Complete The Step 5. Verify Proper
Note: There will be a short pause before the Main Menu displays. a. Disconnect the RS-232 cable from the device and from your PC. b. Connect one end of the Ethernet cable supplied with the Model U monitor to the device, and the other end of the cable to your network hub or switch. - Page 17 Launch a Web browser using the IP address that you assigned in Step 2. Temperature data should display. For example, if the unit IP is 192.168.2.201, enter http://192.168.2.201 in your Web browser’s address bar. Sensatronics Model U Universal Monitor...
-
Page 18: Software Options
Contact us for a real-time, online demonstration. Call (800) 633-1033 to schedule an appointment with one of our SEMS Sales Managers. SNMP SNMP Version 1.0 is supported in the Model U series of temperature monitors. The latest MIB files are available via our website at: http://www.sensatronics.com/downloads/snmp. -
Page 19: Cron Log File Tool
The script requires netcat which can be found at the following URL. Note: This script is NOT supported by Sensatronics. http://netcat.sourceforge.net/download.php Note: The script is designed to be executed no more than once per minute. -
Page 20: Write Your Own
Write Your Own The Model U Universal Monitor runs an internal Web server that listens for TCP/IP HTTP /GET requests on Port 80, and responds to five different URL requests – /index.html, /xmldata, /xmlconfig, /data and /config. /index.html: This is the main index page that returns an HTML- formatted Web containing the temperatures of all connected probes. - Page 21 This will return a non-HTML ASCII, pipe-delimited string…just as it would if you were to open your Web browser and type the following in the URL box: http://192.168.2.101/data Here’s an example of a return string: F|70.9|46.0|67.8|-999.9|-999.9|75.7|69.9|-999.9|-999.9|222.6|- 999.9|-999.9 Sensatronics Model U Universal Monitor...
-
Page 22: Software Plug-Ins
Intellipool Network Monitor www.intellipool.com IPSentry www.ipsentry.com MRTG www.mrtg.org N-Able www.n-able.com Nagios www.nagios.org Overseer Network Monitor www.sensiblesoftware.com Server Nanny www.servernanny.com Servers Alive www.woodstone.nu SNMPc www.castlerock.com Tembria Network Monitor www.tembria.com TempElert www.tempelert.com Visualware www.visualware.com WhatsUp www.ipswitch.com Sensatronics Model U Universal Monitor... -
Page 23: Trouble Shooting
I can display the Universal This may be due to a proxy server. Monitor’s main/index page, Try bypassing the proxy or but I cannot get to its other Configure the proxy to allow this URLs (i.e., /config, /temp). traffic. Sensatronics Model U Universal Monitor... - Page 24 Check the line for damage. Where can I find the latest If you cannot find the latest plug-ins at the software plug-ins? software publisher’s Web site, check our plug-in listing at http://sensatronics.com/downloads/plugins Sensatronics Model U Universal Monitor...
-
Page 25: Warranty
Product. This Limited Warranty applies only to hardware products manufactured by or for SENSATRONICS that can be identified by the Sensatronics trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-Sensatronics hardware products or any software, even if packaged or sold with Sensatronics hardware. - Page 26 Software distributed by Sensatronics under the Sensatronics brand name (including, but not limited to monitoring software) is not covered under this Limited Warranty. Refer to the individual Software License Agreements for more information.
- Page 27 Product for a period of Two (2) Years. WARRANTY PROCEDURE: Upon return of the hardware Product SENSATRONICS will, at its option, repair or replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and replacement Product will be furnished on an exchange basis and will be either reconditioned or new.
-
Page 28: Index
Cannot ping the unit _______ 19 Power _____________________ 7 Unit does not work ________ 19 Power Cord ________________ 7 Product Overv iew Monitor __________________ 2 Product Overview ___________ 2 Warranty __________________ 21 Probes __________________ 2 Software _________________ 3 Sensatronics Model U Universal Monitor...
