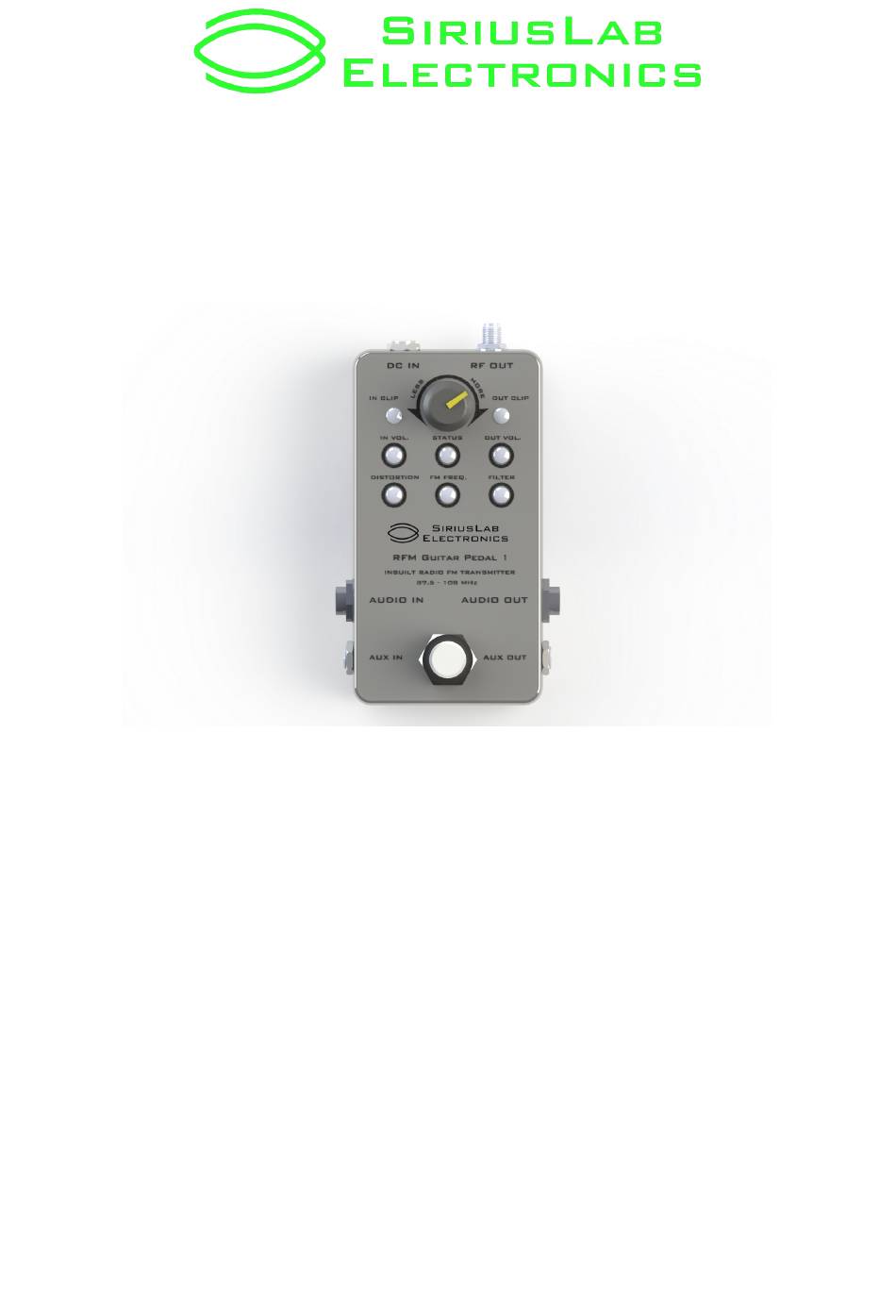

RFM Guitar pedal 1
User guide for North American market
Thank you for purchasing RFM Guitar Pedal 1.
To fully understand the working principles of operation, please carefully read the
user guide.
This device is designed to comply with UK and EU Band II LPD directive.
This is in essence similar to FCC's Part 15 rules on Unlicensed extreme low power
devices.
It is strictly prohibited to cause disruption on the FM radio broadcasting
frequencies. Always check that the frequency used is not occupied by any
other radio station.
SiriusLab Electronics does not accept any liability for misuse of the radio
equipment and/or any damage caused by doing so.
With this out of the way, let's dive into the manual!
Advertisement
Table of Contents
Summary of Contents for SiriusLab Electronics RFM Guitar pedal 1
- Page 1 Always check that the frequency used is not occupied by any other radio station. SiriusLab Electronics does not accept any liability for misuse of the radio equipment and/or any damage caused by doing so. With this out of the way, let’s dive into the manual!
- Page 2 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 1. Basics This distortion effects processor is intended to be primarily used with an electric guitar but might be used with other instruments as well. It has a simple user interface with a rotary encoder with a push button and LED’s.
- Page 3 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 Bypass switch is used to change between the clean signal passing through the effects processor without any changes and signal passing through the effects processor input volume stage, distortion and filter stages.
- Page 4 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 The transmitted signal is only intended to be used locally and therefore its output power is strictly limited by relevant regulations. Best performance is achieved inside of a room and a couple of meters max from the receiving device.
- Page 5 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 9. OUT VOL. (output volume) OUT VOL. setting is intended to change the output volume. This is most useful when using headphones so that it is possible to adjust the loudness according to the users preference.
- Page 6 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 14. STATUS STATUS LED is always on if the device is ON and shows the status of the BYPASS switch and battery level/battery charging. If the device is in bypass mode, the LED is green, if the device is not in bypass mode, the LED is blue.
- Page 7 SiriusLab Electronics RFM Guitar Pedal 1 User Guide v1.0 18. AUX OUT (auxiliary audio output) jack AUX OUT jack provides a stereo (double mono) output line level signal. This is the same signal that appears on the AUDIO OUT jack but is suitable for driving headphones down to 32 ohms of impedance.
- Page 8 finally using it. If any problems should arise during use, please contact SiriusLab Electronics for help and advice.. SiriusLab Electronics contact information: eMail: siriulab.info@gmail.com...
