LK Systems LK Webserver ICS.2 Assembly Instructions Manual

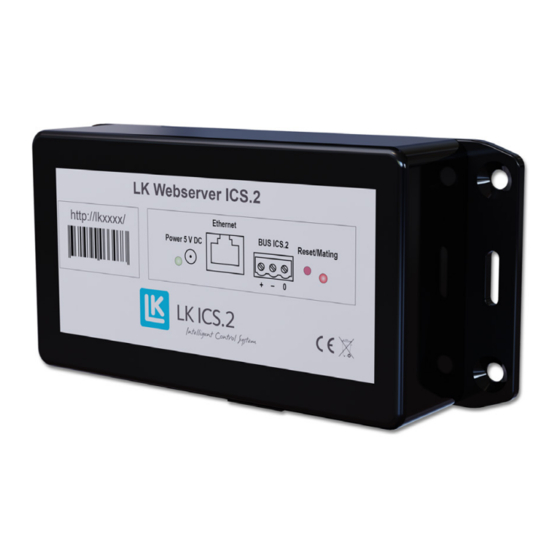

LK Webserver ICS.2
Design
LK Webserver ICS.2 is used to access and control
LK Room Temperature Control ICS.2 from your
mobile phone, tablet or computer. An intuitive
interface makes it easy to monitor, manage and
control all the functions of the underfloor heating
system.
All control operations are made using standard
websites, which means that the system works
with virtually all the current market systems
such as smartphones, tablets or computers with
associated operating systems and web browsers
such as, Android, iPhone, iPad, Windows Phone,
Windows PC, Mac, Linux, Firefox, Safari, Internet
Explorer, and others.
LK Webserver ICS.2 continuously logs the under-
floor heating system (temperature, heat on/off,
etc.) making it possible to optimise system per-
formance. The logs can be collected and analysed
using the LK Analyzer ICS.2 software which you
can download from LK System's website.
Initial start-up/installation of the web server typ-
ically requires a PC with the Windows OS, read
more in the instructions below.
LK Webserver ICS.2 connects to the LK Receiver
8 ICS.2.
User interface, functions
LK Webserver ICS.2 provides a simpler and more
transparent user interface than if you make sys-
tem settings via the room thermostat menu and
setting parameters.
Assembly instructions | LK Webserver ICS.2
Menu tab Thermostats
The Thermostats tab gives you an overview of the
system's receivers and the connected room ther-
mostats. The names of thermostats and receivers
can be changed to names of your choice, by way
of suggestion use the room name/room number.
1
10 9 8
Basic functions
1. Menu tabs.
2. Refresh button. The website is automatically
updated whenever a change is made from it.
If no change is made, the website will self-re-
fresh every 10 minutes. It is possible to force
2
4
3
5
3
7 6
EN.33.C.154.1505.
1 (6)
