SmartCell SC-22-0200-0001-99 Installation Manual

Dual smoke / heat detector and combined sounder

Advertisement

Quick Links

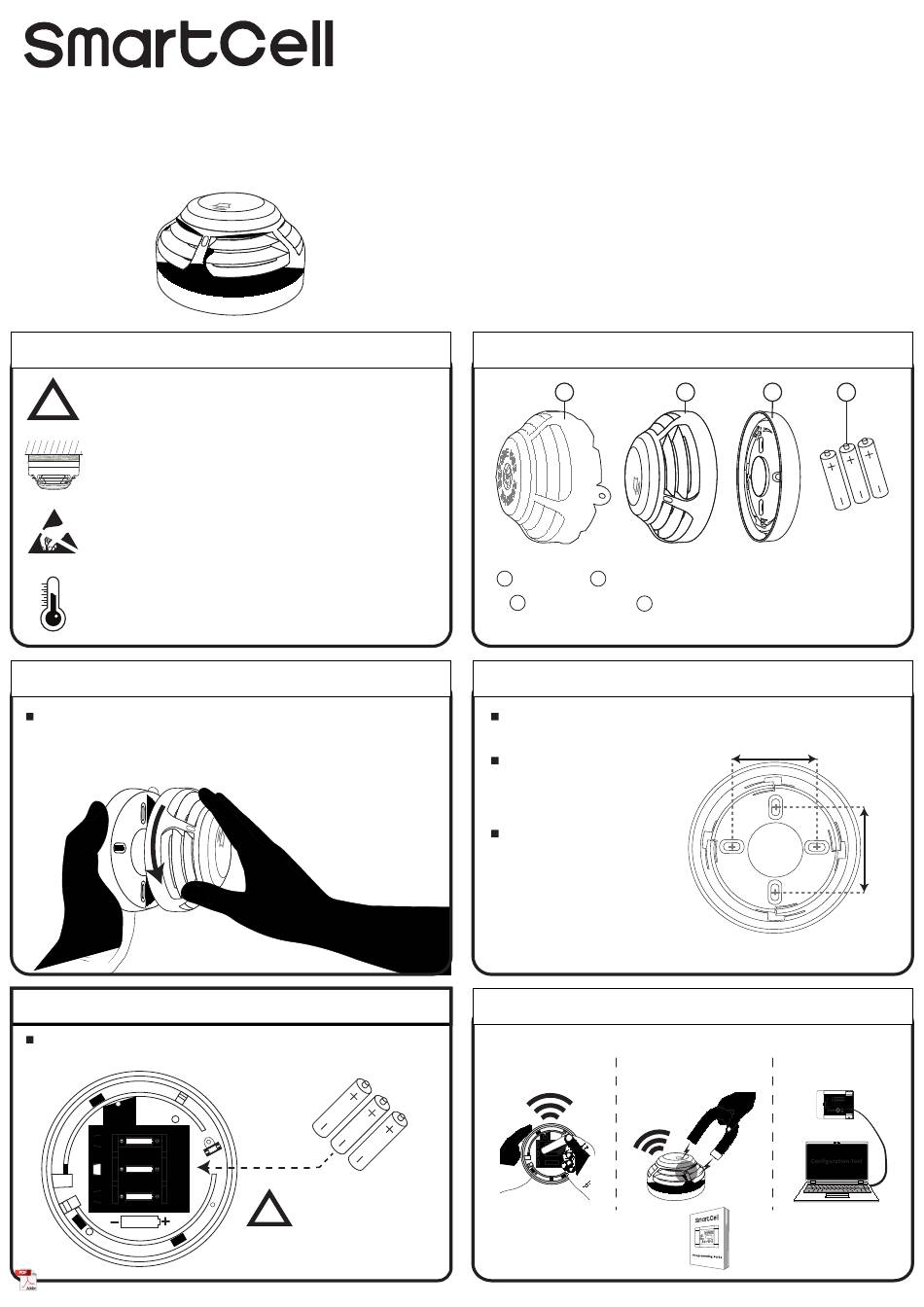

Dual Smoke / Heat Detector and
Combined Sounder
Installation Guide

1 Pre installation

Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
To ensure correct operation, products must be used within the
specified environmental operating conditions.

3 Remove mounting plate

Remove the mounting plate by turning the device ANTICLOCKWISE, to
release it from the mounting plate.

5 Fit batteries

When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
3x ER14505M
LITHIUM 3.6V
©2021 EMS Ltd. All rights reserved.
OBSERVE BATTERY
!
POLARITY!
Page 1 of 2
Part number
Product description
SC-22-0200-0001-99
Dual Smoke / Heat Detector and
Combined Sounder

2 Components

1
1
2 Dual smoke / heat detector and combined sounder
Dust cover
3
Mounting plate
4
*When batteries are not supplied, only fit specified batteries.

4 Fix mounting plate

When fixing to the ceiling, all four fixing positions should be used to
ensure a firm fixing.
Where
existing
electrical
mounting boxes are present,
two fixing positions may be
used.
Use suitable fasteners and
fixings.

6 Configuration

The device must now be added (programmed) to the control panel.
Method 1
Device powering
Magnet application
-
AA+
ER14500
-
AA
+
ER14500
-
AA
+
ER14500
Refer to the programming manual
for full programming details.
2
3
Batteries (not included in some regions*)
60 mm
Method 2
Method 3
Via computer
SmartCell panel = TSD155
SmartCell WZM = MK067
TSD090-0001-99 (Issue 3) 25/08/2021 AJM
4
60 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-22-0200-0001-99 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmartCell SC-22-0200-0001-99

  • Page 1 ER14500 OBSERVE BATTERY POLARITY! 3x ER14505M LITHIUM 3.6V Refer to the programming manual SmartCell panel = TSD155 for full programming details. SmartCell WZM = MK067 ©2021 EMS Ltd. All rights reserved. Page 1 of 2 TSD090-0001-99 (Issue 3) 25/08/2021 AJM...
  • Page 2 2012. Fire detection and fire alarm systems. Part 25: Current consumption 0.15 A max. components using radio links. Power consumption 0.38 W max. EMS declares that the radio equipment type SmartCell Dual European Union Operating frequency 868 MHz Detector With Combined Sounder is in compliance with directives Directive 2014/53/EU.
