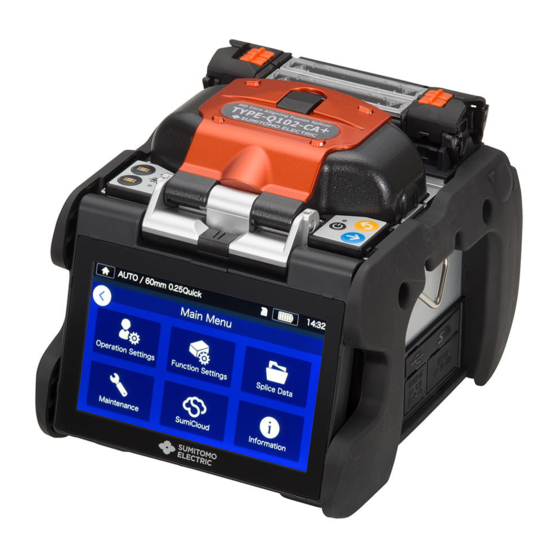

Sumitomo TYPE-Q102-CA + Quick Reference Manual

TYPE-Q102-CA
Quick Reference Guide
■Home screen
Splice program Heater program
Display the Settings panel
Power source type
Change image view
Display/Non-display icons
Start the splicing process
Start the arc test

■Settings panel

To display the Settings panel, tap the
Settings panel icon (
Wireless LAN SD Power Time

Home Screen icons

) on Home screen.
Settings panel icons
Display the menu screen.
Set up Splice Program.
Set up Heater Program.
Play a help video.
Log in to Administrator
mode by entering passcode.
Adjust the volume.
Heater 2
Heater 1
Heater 2
Heater 1
Heater panel
Heater 2
Heater 1
Control panel
Start the heating process on heater 1 and 2
View splice data after splicing
Adjust the zoom of a fiber image
Adjust display brightness
Adjust the focus of a fiber image
Capture a fiber image

■New Technology

NanoTune™
The splice error prevention system
While splice program is selected to "AUTO
NanoTune", the NanoTune
cleaved fiber surface and then sets up optimal
splice condition.
When the NanoTune™ is applied to poor fiber end face, a
NanoTune™ screen appears. Even in AUTO NanoTune program, the
Nanotune™ is not applied to good end face, and the usual splice
screen is displayed.
Using Keypad
Start and cancel Power ON/OFF
heating cycle
analyzes the
™
Reset
Set
