HSA SYSTEMS Xaar128 Instructions

Instruction for HSA pumps
interactive mode.

Introduction

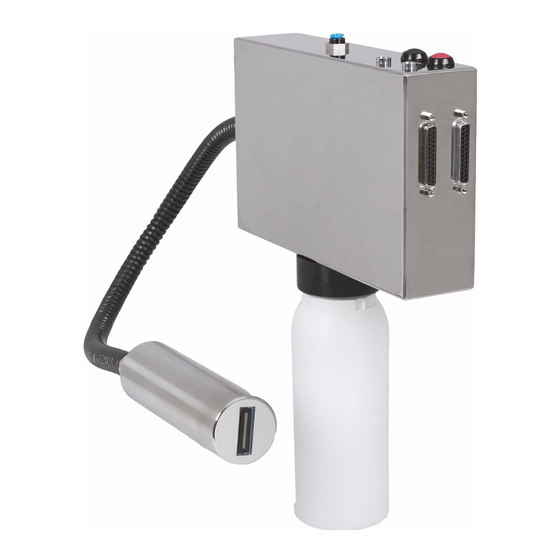

With the PCIPCB board, new electronics were introduced in the ink supply. The pump controller in
this ink supply is known as "pump5" (5th generation). It allows you to adjust the settings of the pump
by using the two buttons on top of the ink supply.

General information

This generation of printers will automatically turn of the pump when not printing. This means that if
the photocell is not activated in 5 minutes the printer will fall into sleep mode. When the photocell is
activated in sleep mode the printer will immediately return to normal cycle mode.

Start of interactive mode

Hold down both buttons until both LEDs are blinking. When the buttons are released, both LEDs are
turned off.
From here, you have 2 options with the XaarJet 128 printer, and 3 options with the XaarJet 500
printer.

Adjust the length of the pump cycle

Activate the black button until both LEDs are blinking. The LEDs are turned off when the button is
released.
The yellow LED is blinking according to the selected level. The faster, the more the pump will be
working
By pressing the black button, the next higher level will be selected. There is a total of 6 levels; the
green lamp will be on a the lowest level (longest time between pump activity). Level 3 is the
default setting.
Press the red button to go back to normal function. The pump will start after this.

Pump timings for microprocessor Pump5.xx

Xaar128 MODE
LEVEL RUN TIME
(seconds)
1 30
2 30
3 40
4 40
5 40
6 40
Xaar500 Mode on the next page.
IDLE TIME SPEED INDICATOR
(minutes) (flashes/second)
20
15
12
8
6
2
32
16
8
4
2
1
