Summary of Contents for LITAGRO Gold Series

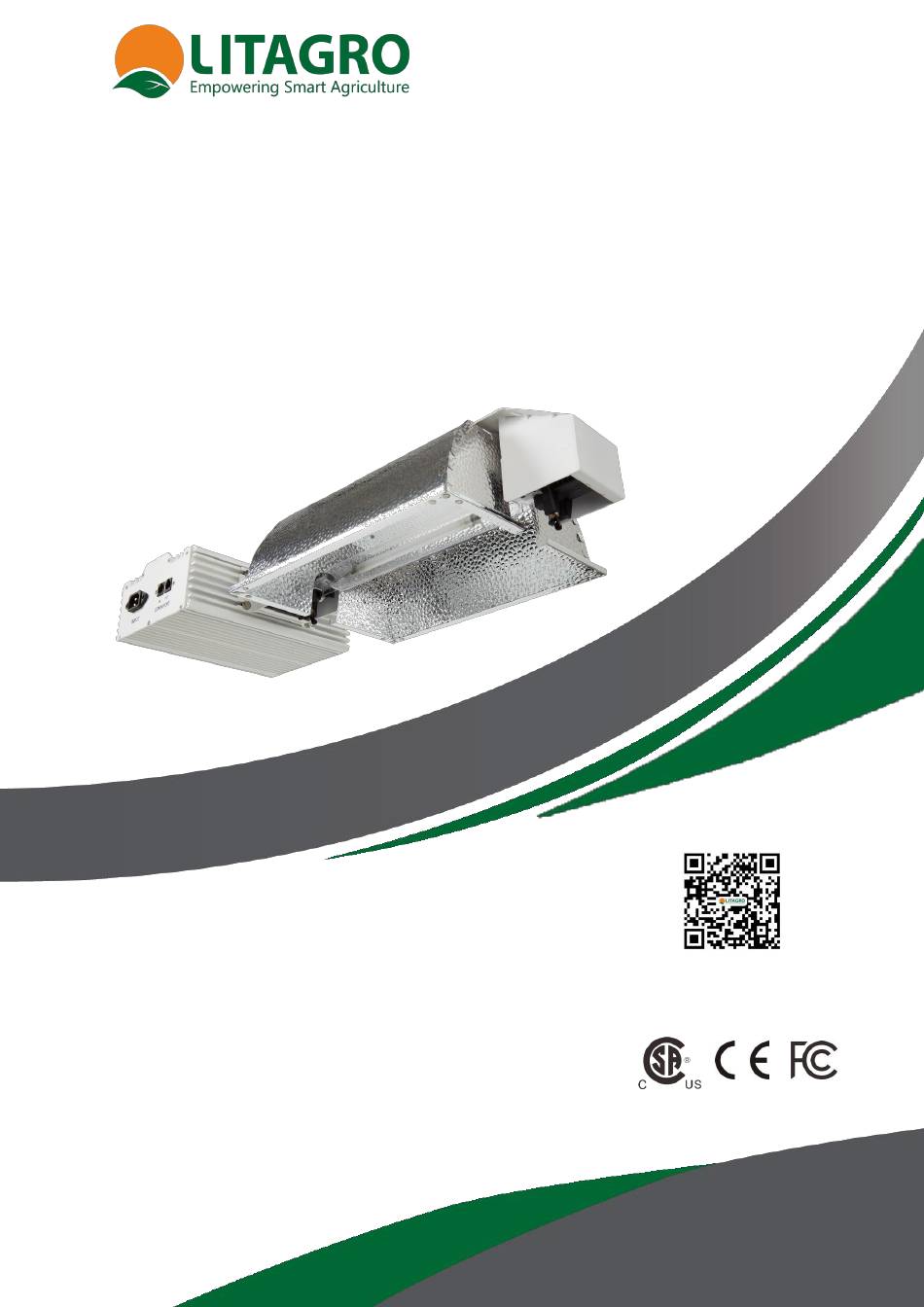

- Page 1 User Manual LITAGRO HORTICULTURAL LIGHTING 600W/1000W HPS DE FIXTURE (Gold Series) Please scan the QR code to get more information and support. © All Rights Reserved...
- Page 2 LITAGRO series product for plant growing, it was developed and produced for plants light,It is driven by a high-frequency electronic ballast 600W/1000W HPS. LITAGRO series product for plant growing it can be dimmed by the knob on the ballast or Mobile app.
-
Page 3: Data Sheet
Datasheet Model LT600H LT1000H Match Lamps 600W HPS（Double-ended） 1000W HPS（Double-ended） Input Voltage 120-240 VAC；277-400 VAC 5.3A@120V 8.9A@120V 2.7A@240V 4.5A@240V Input Current 2.4A@277V 3.8A@277V 1.9A@347V 3.0A@347V 1.7A@400V 2.7A@400V Input Frequency 50/60 Hz Power Factor >0.95 Total Harmonic Distortion(THD) <10% Output Power 600W 1000W Dimming... -
Page 4: Installation
Installation First install Carefully open the package and take out the product. Check whether the ballast and reflector are installed accurately.Install the lamp correctly. Make sure the lamp holder is in the closed position. Make sure the dimming button is at the right position. ... - Page 5 Installation Hanging Lignt Hang the light on a rack as shown in the picture. First, screw the hanging ring into the fixture bracket. Then fasten the hanging rope kit to the fixture and pull the adjustment rope to adjust the horizontal angle and height of the fixture.
- Page 6 Installation Slide the lamp holder outwards to open, carefully put the lamp into the lamp holder, the filaments on both sides should be put into the metal shrapnel of the lamp holder. Slide the lamp holder inward to close the lamp holder, making sure that both lamp ...
- Page 7 Intelligent control system(AIgro) AIgro system provides monitoring and control functions include one-button power on/off, remote dimming and lighting schedule, event alarm, diagnosis, and environmental sensor functions, giving agricultural planting true intelligence. When Algro is enabled,please adjust the upper knob of the ballast to Comm. ...
- Page 8 Naming Rules for LITAGRO Horticultural Lighting Product Naming Rules for LITAGRO Horticultural Lighting Product 1:110° NA: North 1000W H:HPS L:AC120-240V Reflector America C: Metal The whole 2:135° Product Double-ended 600W Halide M:AC277-400V power Delimiter set of Delimiter Reflector Europe series title...
-
Page 9: Ordering Information
Ordering Information Demand product model Number of products required Filling in the product model directly according to the above table can provide you with accurate service, or you can fill in the relevant requirements in the following table Input voltage(AC 50/60 Hz) 120-240V 277-400V HPS Lighting fixture(600W) -
Page 10: Quality Assurance
Parts damaged by abnormal use will not be covered by the warranty. When LITAGRO product for plant growing parts are defective，The product can be replaced or replaced with new parts. If the whole set of product needs to be replaced after a period of use, this limited warranty period is valid for the remaining time within three years from the date of purchase. -
Page 11: Contact Information
Contact Information Litagro global sales/support offices and Warehouses Litagro Shanghai China B305 No. 188, Zhangyang Road, Pudong, Shanghai Tel: +86 181 1719 0521 Litagro Jiaxing China Building 1, No. 8, Xinzhong Road, Economic Development Zone, Haichang Street, Jiaxing City, Zhejiang...
