Ismartgate iSG-WDS Installation Manual

Wired Magnetic Sensor installation guide
(iSG-WDS)
Read instructions carefully before beginning
Please make sure your garage/gate is closed before you start installation.
The ismartgate device and our wired magnetic sensors are meant to be used with garage/gate
operators equipped with photo-eye safety sensors. These sensors are normally found at the
bottom of your garage/gate and avoid accidental closing of your gate if an object or person is on
the path of the gate.

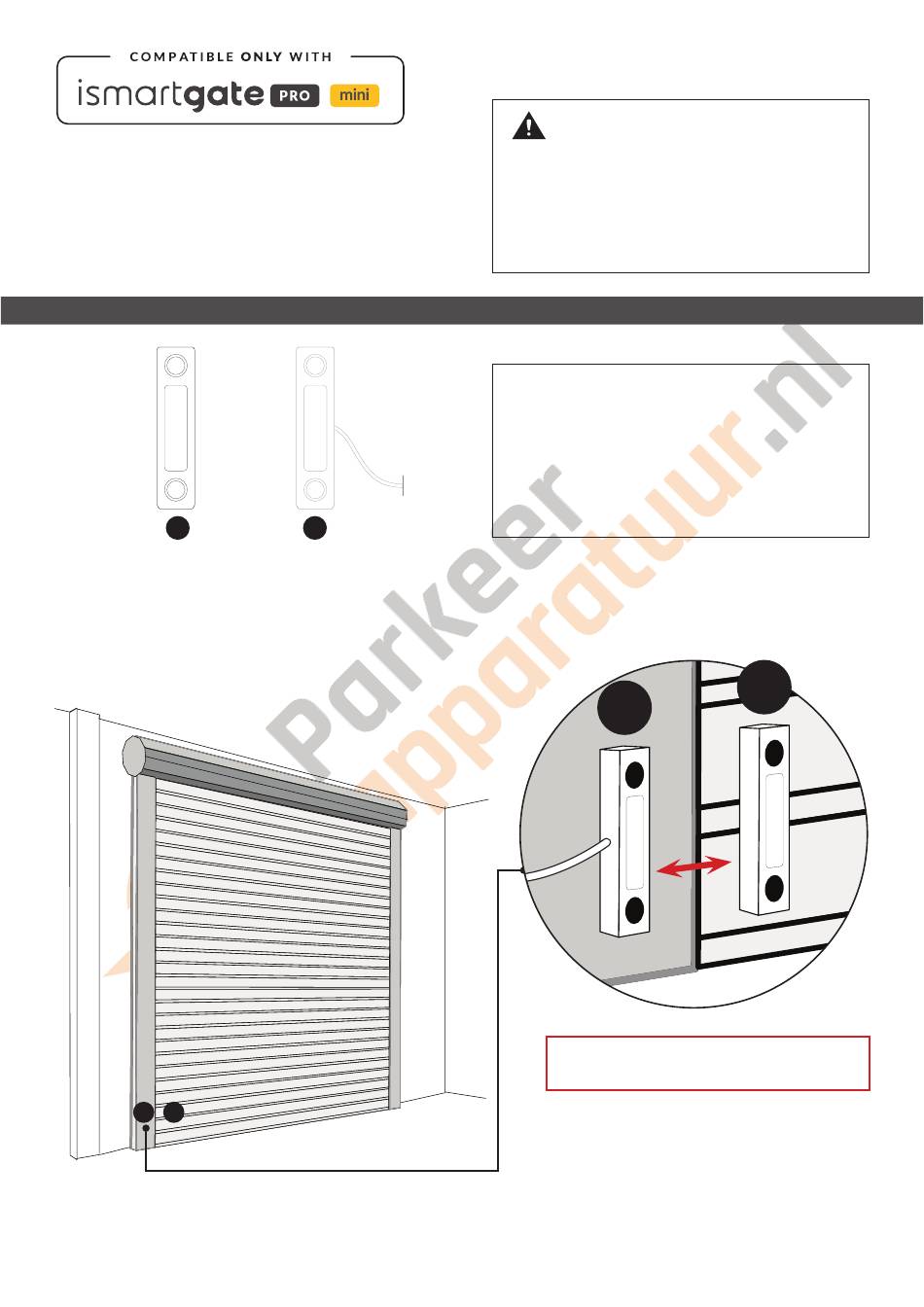

STEP 1 - PLACE YOUR SENSORS ON A ROLLER DOOR OR GATE
A
Place this part on the gate
/ garage door
A) Installation on a Roller Door
Attach your magnetic wired sensors to your roller door as per drawing below.
B A
PLACE THE SENSOR ON THE LOWER PART OF YOUR ROLLER DOOR.
B
Place this part
on the wall
TO PREVENT SERIOUS INJURY OR DEATH FROM
MOVING GARAGE DOORS OR GATES:
· DO NOT let children use the ismartgate product and app without adult supervision.
· ONLY Operate your ismartgate device when you are in clear view of your garage
or gate and you have verified that there are no objects obstructing the operation of
the door. ALWAYS wait for garage door or gate to be completely closed.
· NEVER operate the remote access feature of your ismartgate without ensuring that
there is an adult physically present in front of the door or gate validating that it is safe
to start the remote operation of your device.
Always install your wired magnetic sensors with your garage door or gate in a
closed position.
On sliding gates or garage doors part A should be mounted on the gate/garage
door and part B should be mounted on the wall or fix part of the gate/garage. Please
make sure you place the sensor on the side closer to the ismartgate device.
On swing gates, part B should be mounted on the gate that is closer to the
ismartgate device. Part A should be placed on the other gate.
B
MAKE SURE THE GAP BETWEEN PART B AND
PART A IS LESS THAN
A
1.25 INCH (3 CM).
