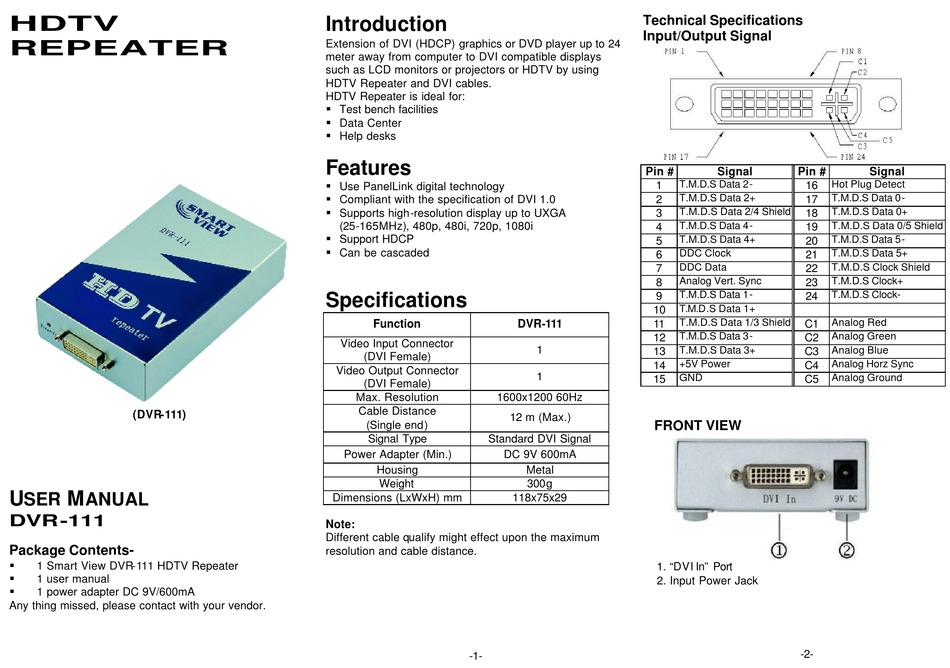

Smart view DVR-111 User Manual

HDTV
REPEATER
(DVR-111)
U M
SER ANUAL
DVR-111
Package Contents-
§
1 Smart View DVR-111 HDTV Repeater
§
1 user manual
§
1 power adapter DC 9V/600mA
Any thing missed, please contact with your vendor.
Introduction
Extension of DVI (HDCP) graphics or DVD player up to 24
meter away from computer to DVI compatible displays
such as LCD monitors or projectors or HDTV by using
HDTV Repeater and DVI cables.
HDTV Repeater is ideal for:
§ Test bench facilities
§ Data Center
§ Help desks
Features
§ Use PanelLink digital technology
§ Compliant with the specification of DVI 1.0
§ Supports high-resolution display up to UXGA
(25-165MHz), 480p, 480i, 720p, 1080i
§ Support HDCP
§ Can be cascaded
Specifications
Function
Video Input Connector
(DVI Female)
Video Output Connector
(DVI Female)
Max. Resolution 1600x1200 60Hz
Cable Distance
(Single end)
Signal Type Standard DVI Signal
Power Adapter (Min.) DC 9V 600mA
Housing
Weight
Dimensions (LxWxH) mm
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
-1-
Technical Specifications
Input/Output Signal
Pin #
T.M.D.S Data 2-
1
T.M.D.S Data 2+
2
T.M.D.S Data 2/4 Shield
3
T.M.D.S Data 4-
4
T.M.D.S Data 4+
5
DDC Clock
6
DDC Data
7
Analog Vert. Sync
8
T.M.D.S Data 1-
9
T.M.D.S Data 1+
10
T.M.D.S Data 1/3 Shield
DVR-111 11
T.M.D.S Data 3-
12
1 T.M.D.S Data 3+
13
+5V Power
14
1
GND
15
12 m (Max.)
FRONT VIEW
Metal
300g
118x75x29
1. "DVI In" Port
2. Input Power Jack
Signal Pin # Signal
Hot Plug Detect
16
T.M.D.S Data 0-
17
T.M.D.S Data 0+
18
T.M.D.S Data 0/5 Shield
19
T.M.D.S Data 5-
20
T.M.D.S Data 5+
21
T.M.D.S Clock Shield
22
T.M.D.S Clock+
23
T.M.D.S Clock-
24
Analog Red
C1
Analog Green
C2
Analog Blue
C3
Analog Horz Sync
C4
Analog Ground
C5
