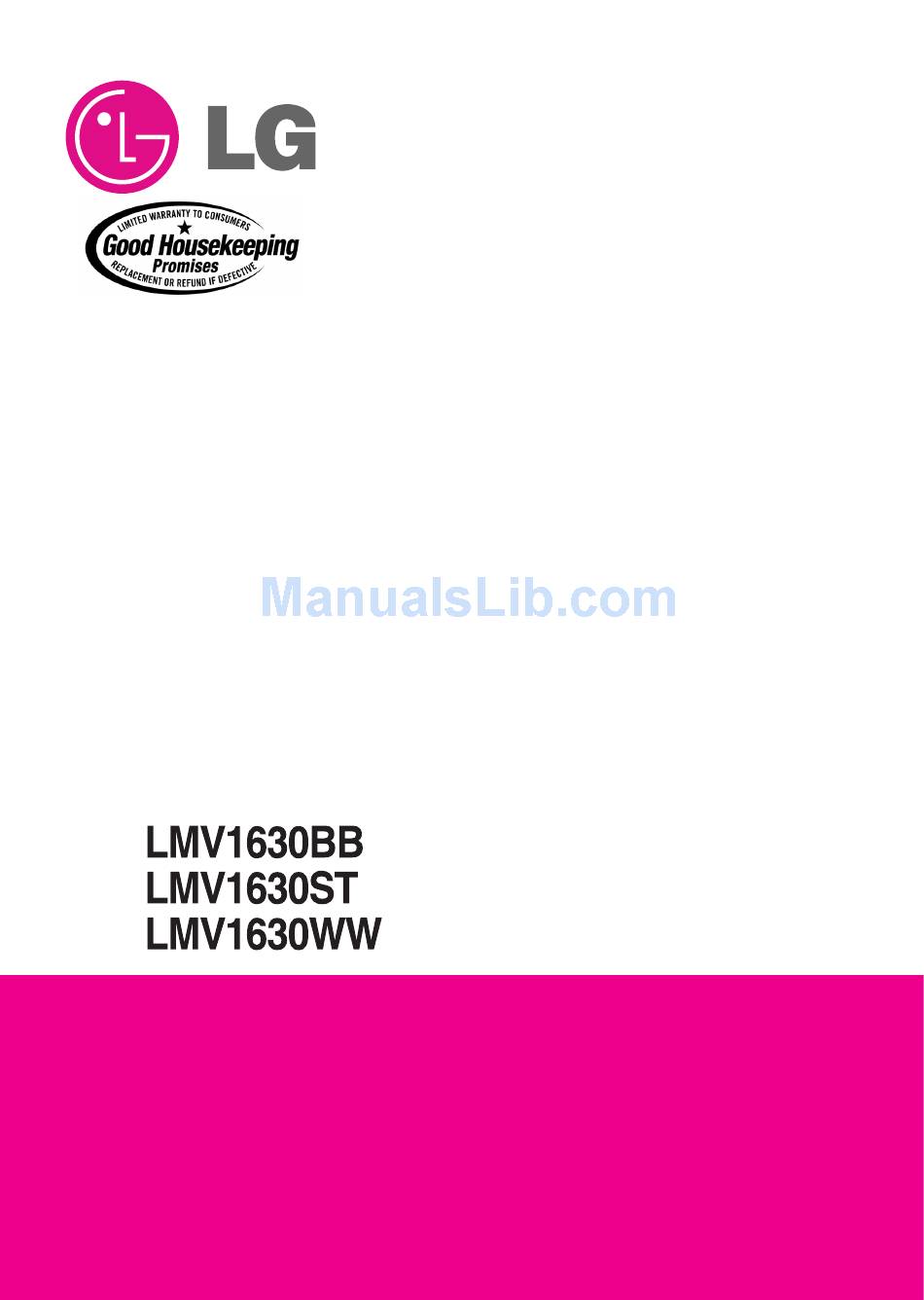

MICROWAVE OVEN

INSTALLATION INSTRUCTIONS

PLEASE READ AND SAVE THESE INSTALLATION INSTRUCTIONS.
P/NO.: 3828W5U0529

Advertisement

Table of Contents
loading

Related Manuals for LG LMV1630

Summary of Contents for LG LMV1630

  • Page 1: Microwave Oven

    Website: http://us.lgservice.com MICROWAVE OVEN INSTALLATION INSTRUCTIONS PLEASE READ AND SAVE THESE INSTALLATION INSTRUCTIONS. P/NO.: 3828W5U0529...

  • Page 2: Your Safety First

    – Read the entire manual before you begin. The model number label is located on the oven front. See Figure 1. The mounting plate is located on back side of microwave oven. See Figure 2. NOTE: Vent grille appearance varies by model.
  • Page 3 – DO NOT place objects between the microwave oven front face and the door. – DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door. – DO NOT operate the microwave oven if it is damaged.
  • Page 4 – ATTACH (See note on page 5) the two lag screws supporting the oven to a vertical, 2" x 4" wall stud. – DO NOT mount the microwave oven to an island or peninsula cabinet. – BE SURE the upper cabinet and rear wall structures can support 150 lbs., plus the weight of any items you place inside the oven or upper cabinet.

  • Page 5: Parts, Tools, Materials

    Parts, Tools, Materials THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector (for roof venting or wall venting installation) Not Actual Size (2 pieces must be assembled as shown) Not used if venting into kitchen.
  • Page 6 Parts, Tools, Materials You will need the following tools and materials for the installation: Carton or other heavy material such as a blanket for covering the counter top. Clear Tape (for taping the templates to the wall) Saber Saw (for cutting vent holes for roof or wall vending) Phillips Screwdriver (for the screws)

  • Page 7: Step 1: Prepare The Electrical Connection

    1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 5. NOTE: The outlet should be on a circuit dedicated to the microwave oven (120V, 60 Hz., AC only) with a 15 or 20A fused electrical supply. IMPORTANT: If you do not have the proper wall outlet, you MUST have one installed by a qualified electrician.

  • Page 8: Step 2: Prepare The Venting System

    STEP 2: Prepare The Venting System NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 10, page 9. THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways. However, do NOT vent into a wall cavity, an attic, or an unused area.
  • Page 9 STEP 2: Prepare The Venting System Standard Fittings NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. Duct Length The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed 140 feet.

  • Page 10: Step 3: Prepare The Venting Blower

    STEP 3: Prepare The Venting Blower Your microwave oven is shipped with the blower assembled for room-vented. You need to adjust the blower if you want wall-vented or roof-vented installation. ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT. • DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in electrical shock.

  • Page 11: Wall-Vented Installation

    Remove the blower plate from cabinet. See Figure 13. 2. Carefully lift the blower unit out of the microwave oven. 3. Use side cutters or tin snips to cut and remove knockouts B from Back plate. Discard knockouts. Be careful not to distort the plate.

  • Page 12: Roof-Vented Installation

    Remove the blower plate from cabinet. See Figure 19. 2. Carefully lift the blower unit out of the microwave oven. 3. Rotate blower unit 90 so the exhaust ports face the top of the cabinet. See Figure 20.

  • Page 13: Step 4: Prepare The Wall & Upper Cabinet

    STEP 4: Prepare The Wall & Upper Cabinet To avoid personal injury or property damage, do not attempt to install this microwave oven if you cannot find a wall stud. Consult a carpenter or contractor. Measure And Track/Tape Up The Templates 1.
  • Page 14 Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to cabinet with masking tape. See Figure 26. 3. Cut or drill a 2" diameter hole at the area marked M. Power supply cord hole on the upper cabinet template.

  • Page 15: Step 5: Install The Mounting Plate

    STEP 5: Install The Mounting Plate The Oven Must Be Connected To At Least One Wall Stud. 1. Draw a vertical line on the wall at the center of the 30" wide space. Use the mounting plate as the template for the rear wall.
  • Page 16 STEP 5: Install The Mounting Plate For Wall-Vented Make the box cutout for the rear wall duct. – 1-piece mounting plate: Using a pencil, put dots through slots F and G, and through holes H and I. Remove the mounting plate and draw lines extending through the points.

  • Page 17: Step 6: Attach The Oven To The Wall

    To avoid risk of personal injury or property damage, you will need two people to install this microwave oven. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 27) at the bottom of the mounting plate.Reaching through upper cabinet, thread power supply cord through the power supply cord hole in the bottom of the upper cabinet.
  • Page 18 Insert the end of the filter screen without ring into the opening and slide towards the side of the microwave oven. Insert ring end of filter screen into the opening and slide entire screen towards the center of the microwave until screen is securely in position.
  • Page 19 Printed in China...
