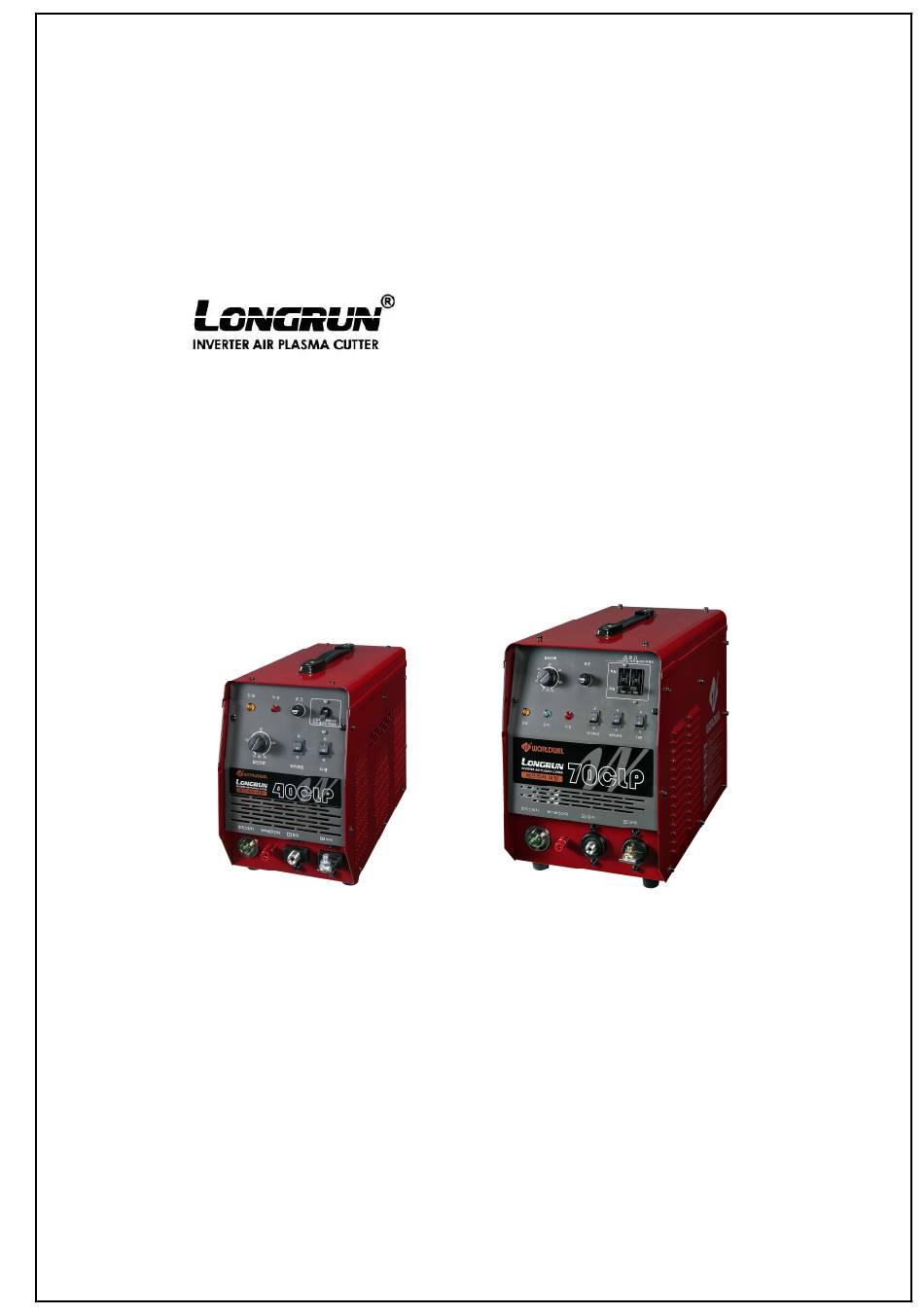

- Page 1 INVERTER AIR PLASMA CUTTING MACHINE 40CLP, 70CLP [Built-in Compressor] OPERATION MANUAL DO NOT INSTALL, OPERATE OR MAINTAIN THIS MACHINE WITHOUT READING THIS MANUAL AND PLEASE ALWAYS THINK BEFORE YOU ACT. www.worldwel.com...
- Page 2 - Non contact arc starting by pilot circuit - No need keeping to push torch switch during cutting by turning AUTO switch On which is on front panel of power source. ITEM UNIT 40CLP 70CLP Input Voltage 220V, Single Phase 220V, Single Phase...
- Page 3 Electric shock can kill. ■ Wear Dry, hole-free insulating gloves and body protection. Do not touch electrode with bare hand. Do not wear wet or damaged gloves. ■ Do not touch live electrical parts. ■ Never dip the electrode in water for cooling. ■...
- Page 4 ■ INSTALLATION ● The welding & cutting machine shall be installed at a place ; ․ free from the inflammables ․ less humidity, dirt and dust ․ protecting from influence of direct sunlight, wind and rain ․ not generated oil vapor and corrosive gas ․...
- Page 5 ■ FRONT PANEL When it is turn on, the cooling fan and all of electrical circuit inside the Power Switch machine will be operated. Fuse, 3A Current Volume Adjust the current It indicates that the machine is on and input voltage is within acceptable Power Lamp range.
- Page 6 ■ START UP Turn On the main power supplied to machine Turn On the power switch of machine and then verify that the power lamp is On and the cooling fan is running Regulate the air pressure to 60PSI using the lever of air regulator when pushing torch switch ...
- Page 9 40CLP PARTS LIST PART NAME DESCRIPTION QTY. Magnet GMC-30P2 Main PCB WTM06[Ver.01] HF PCB TME-10A65 PWD PCB WPD-01 Cable Lock MF Condensor 10㎌/800V[SMALL] Condensor 1500/400V Control Transformer LP-7630(300LT2) DCP31PR 45A Slave PCB WPSB-02 Switch KCD1-202, 2 WAY FUSE Volume...
- Page 12 70CLP PARTS LIST PART NAME DESCRIPTION QTY. Magnet GMC-30P2 Main PCB WTM06[Ver.01] HF PCB TME-10A65 PWD PCB WPD-01 Slave PCB WPSB-02 MF Condensor 10㎌/800V[SMALL] Condensor 3300/400V Resistor, Stick 150W3Ω Control Transformer LP-7630(300LT2) 14D391K Input terminal 6M/M DCP31PR 45A FAN-150T 150T(PIN TYPE) Switch KCD1-202, 2 way FUSE...
- Page 13 Thanks for purchasing our machine Please fill out below form for future reference. This information can be found on the Nameplate of your machine. INVERTER AIR PLASMA CUTTING MACHINE Product Name [Built-in Compressor] Model Number Date Manufactured Serial Number Date Purchased Where Purchased Where you use Whenever you request replacement parts or information on this machine, always supply...
