Elite 3.5 LCD ZUMspot kit user guide

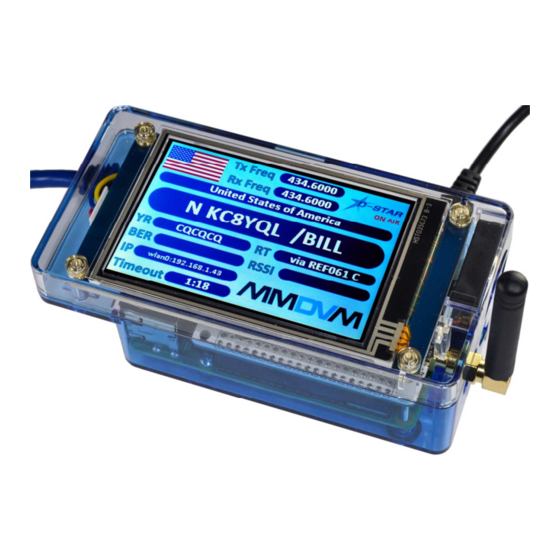

Elite 3.5 LCD ZUMspot
The Elite 3.5 LCD ZUMspot kit is a low power simplex digital mode hotspot. It supports Dstar, DMR,
Fusion, NXDN, P25 and POCSAG.
Copyright 2019-2022 ZUM Radio, Inc
1
Rev 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite 3.5 LCD ZUMspot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZUM Radio Elite 3.5 LCD ZUMspot

  • Page 1 Elite 3.5 LCD ZUMspot kit user guide Elite 3.5 LCD ZUMspot The Elite 3.5 LCD ZUMspot kit is a low power simplex digital mode hotspot. It supports Dstar, DMR, Fusion, NXDN, P25 and POCSAG. Copyright 2019-2022 ZUM Radio, Inc Rev 1.3...
  • Page 2: Table Of Contents

    Elite 3.5 LCD ZUMspot kit user guide Table of Contents ZUMspot board specifications: ........................3 Kit includes: ..............................3 Setup: ................................4 Powering up: ............................4 Ethernet: ............................... 5 Configure display type: ......................... 6 Ethernet: ............................... 6 Wi-Fi: ..............................7 Configuration: .............................
  • Page 3: Zumspot Board Specifications

    Elite 3.5 LCD ZUMspot kit user guide ZUMspot board specifications: • ZUMspot Board Fully Assembled And Tested • High performance 32-bit ARM processor • Supports DMR, P-25, D-Star, System Fusion, NXDN and POCSAG • Onboard LEDs to show status (Tx, Rx, PTT, Mode) •...
  • Page 4: Setup

    Plug in the USB-C power cable to your Elite 3.5 ZUMspot LCD kit. Then plug the cable into the ● wall adapter and insert that into an AC outlet. If the Elite 3.5 LCD ZUMspot kit doesn’t power up, then press the switch on the cable and it ● should power up now.
  • Page 5: Ethernet

    Elite 3.5 LCD ZUMspot kit user guide Ethernet: If you are going to use Ethernet, plug the cable into the RJ45 connector on the end of the case. ● Copyright 2019-2022 ZUM Radio, Inc Rev 1.3...
  • Page 6: Configure Display Type

    Elite 3.5 LCD ZUMspot kit user guide Setup Pi-Star: Configure display type: In the “MMDVMHost Configuration” section ● Make sure “MMDVM display Type” is set to “Nextion” ● Make sure “Port” is set to “Modem” ● Make sure “Nextion Layout” is set to “ON7LDS L3”...
  • Page 7: Wi-Fi

    Elite 3.5 LCD ZUMspot kit user guide Wi-Fi: Power up the Elite 3.5 LCD ZUMspot kit. ● ● After 3 minutes, scan for Wi-Fi access points from your phone or laptop. One should appear with the name “Pi-Star-Setup” Connect to it. When asked for the Wi-Fi password type in: raspberry ●...
  • Page 8 Elite 3.5 LCD ZUMspot kit user guide Select “Configure WiFi ○ Copyright 2019-2022 ZUM Radio, Inc Rev 1.3...
  • Page 9 Elite 3.5 LCD ZUMspot kit user guide o Click on “Scan for Networks (10 secs)” Copyright 2019-2022 ZUM Radio, Inc Rev 1.3...
  • Page 10 Elite 3.5 LCD ZUMspot kit user guide Select your Wi-Fi SSID and enter your password. ● Click on “Save (and connect)” to save the Wi-Fi configuration ● Reboot your Elite 3.5 LCD ZUMspot kit ● Copyright 2019-2022 ZUM Radio, Inc...
  • Page 11: Configuration

    Elite 3.5 LCD ZUMspot kit user guide Configuration: Change the Node Callsign to your own, set the “Radio Frequency” to match your radio and ● make sure the “Radio/Modem Type” is set to “ZUMspot - Raspberry Pi Hat (GPIO)”, set the “System Time Zone”...
  • Page 12: Configuration (Example To Enable D-Star)

    Elite 3.5 LCD ZUMspot kit user guide Configuration (example to enable D-Star): Now you can turn on D-Star by selecting the “D-Star Mode” switch and clicking “Apply Changes” ● Copyright 2019-2022 ZUM Radio, Inc Rev 1.3...
  • Page 13: Finished

    Elite 3.5 LCD ZUMspot kit user guide Finished: Once you have completed the Pi-Star configuration you can start using the Elite 3.5 LCD ZUMspot kit to connect to DSTAR, DMR and other networks. There is more information on configuring and using Pi-Star in this document: https://amateurradionotes.com/images/1-Playing_with_Pi-Star.pdf...
