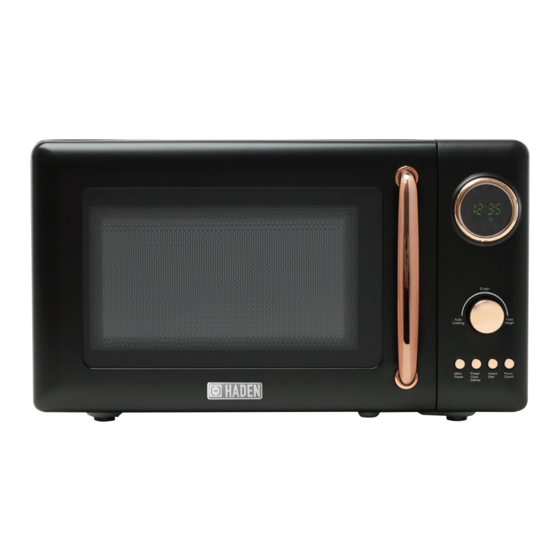

- Page 1 INSTRUCTION MANUAL PRODUCT CODE: HMC208TC-US MICROWAVE OVEN www.hadenusa.com...
- Page 2 How Can We Help? The Haden team is always interested in what you have to say, so why not get in touch? Call us California: +1 562 942 0492 Outside California: +1 866 942 0492 Available Monday - Friday 8am - 4:30pm P.T Email us service@hadenusa.com...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION SAFETY INSTRUCTIONS INSTALLATION USING YOUR MICROWAVE OPERATION / FUNCTIONS COOKING TIPS CLEANING MAINTENANCE TECHNICAL SPECIFICATION WARRANTY www.hadenusa.com... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing this product, please take time to read these instructions before use. They have been written to ensure you get the very best from your purchase. SAFETY • • To ensure your safety and the safety of others, please ensure you read all these instructions paying particular attention to the Safety information •... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: • Read all instructions before using the appliance. •... - Page 6 • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning surfaces of door and oven that comes together • on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- Page 7 over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. • Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.
- Page 8 eruptive boiling of liquids. • e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked • before consumption, in order to avoid burns. • • Never operate the oven further if the door or door seals is damaged or the oven is malfunctioned or supply cord is damaged.
- Page 9 • Any accessories not recommended by the manufacturer may cause injuries to persons. • Do not use outdoors. • WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;...
- Page 10 to avoid touching heating elements inside the oven. • • WARNING: Accessible parts may become hot during use. • Young children should be kept away. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Page 11 • Do not operate or allow the oven to be operated with the door open. • Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse.
-
Page 12: Installation
INSTALLATION • Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank. • To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. -
Page 13: Using Your Microwave
USING YOUR MICROWAVE 1) Door lock Microwave oven door must be properly closed in order for it to operate. 2) Viewing window Allow user to see the cooking status. 3) Rotating axis The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate. - Page 14 6) Control panel See below in details 7) Waveguide cover It is inside the microwave oven, next to the wall of control panel WARNING Never remove the waveguide cover OPERATION OF CONTROL PANEL • • • www.hadenusa.com...
-
Page 15: Operation / Functions
BEFORE COOKING The display will flash 3 times when plugged in power, then enter the standby state. MICROWAVE FUNCTION There are five firepower levels, 100P, 80P, 60P, 40P and 20P. Press the “Micro Power” button continuously and select the desired •... - Page 16 DEFROST There are three defrost mode, d.1, d.2 and d.3. • Press “Defrost” button continuously to select the defrost mode • • Then turn the “Weight” knob to choose the food weight. • • After selecting, press the “Instant/Start” button start to work. During •...
- Page 17 AUTO COOKING There are twelve automatic menus, from A-01 to A-12. • Turn the “Auto Cooking” knob to select the desired menu. • Then press the “Enter” button to enter the weight selection. • Turn the knob to select the “Weight”. After selecting the weight, press “Instant/Start”...
- Page 18 PRESET If you don’t want the cooking procedure to start immediately, you can preset the desired start-up time. When the preset time is reached, the microwave oven will automatically start the preset procedure. The setting steps are as follows: Micro Power •...
- Page 19 MULTI-STAGE COOKING In order to obtain better cooking effect, some recipes need different power setting or times to cook. You may use this setting to create a personalized menu. For example, cook with 100% microwave power for 3 minutes and then cook with 20% power for 9 minutes is set as follows.
-
Page 20: Cooking Tips
COOKING TIPS FOOD ARRANGEMENT Place thicker areas towards outside of dish, the thinner part towards the center and spread it evenly. Do not overlap if possible. COOKING TIME Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. - Page 21 MICROWAVE SAFE PLASTIC COOKWARE Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded. CONTAINER GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking.
-
Page 22: Cleaning
CLEANING MICROWAVE OVEN CARE CAUTION The oven should be cleaned regularly and any food deposits removed. WARNING It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. - Page 23 TIPS FOR CLEANING Exterior: • Wipe the enclosure with a dampened soft cloth Door: • Using a dampened soft cloth, wipe clean the door and window. • Wipe the door seals and adjacent parts to remove any spill or spatter. •...
-
Page 24: Maintenance
MAINTENANCE SERVICING Please check the following before calling for services. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. Does the oven lamp light? Does the cooling fan work? (Put your hand over the rear ventilation openings.) - Page 25 WARNING The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.
-
Page 26: Technical Specification
TECHICAL SPECIFICATION Model Number HMC208TC-US Power Supply 120V / 60Hz Power Consumption (Microwave) 1150W Rated Microwave Output 700W Operation Frequency 2450MHz CORRECT DISPOSAL OF THIS PRODUCT DISPOSAL: This marking indicates that this product should not fil be disposed with other household wastes throughout the EU. -
Page 27: Warranty
LIMITED WARRANTY This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S.
