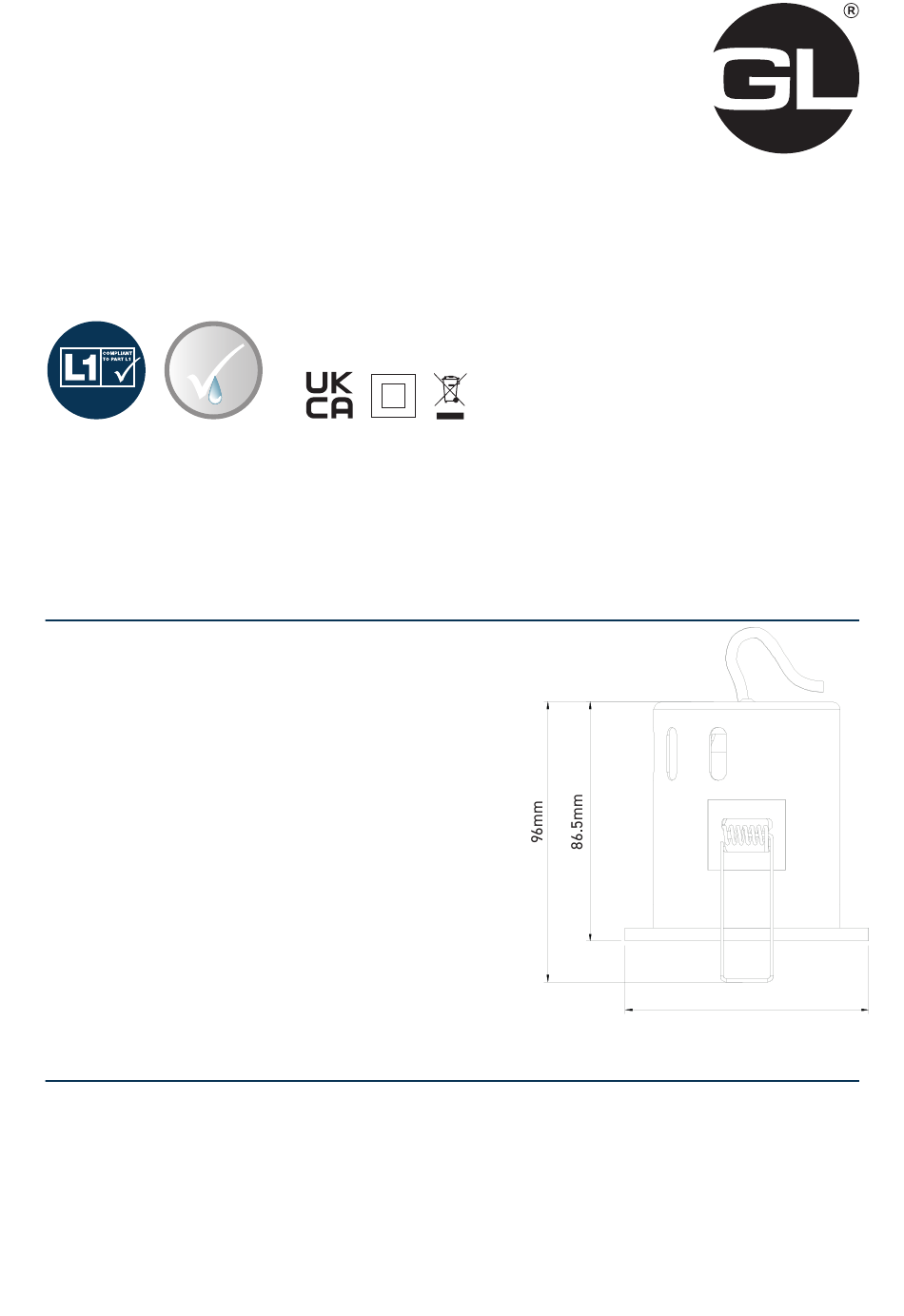

ASSEMBLY & FITTING INSTRUCTIONS
SN-WH7WS SN-CH7WS
Matt White
Chrome
IP
RATED
DEDICATED
6W D-Lux ECO450 Downlight
Please read these instructions carefully before attempting to install this downlight.
It is advisable to keep these instructions in a safe place for future reference. If this downlight is installed
by a contractor, the contractor should ensure that the customer has a copy of these instructions.
SPECIFICATION
Voltage:
Lamp:
Lumens:
Colour Temperature:
Cut Out:
Minimum Void:
Bezel Finish:
IP Rating:
Fire Rating:
Electrical Safety:
Acoustic Rating:
IMPORTANT INFORMATION
It is recommended that luminaires are installed and fitted by a qualified electrician ensuring the
Installation complies with the current IET wiring regulations BS7671:2008. This product is designed for
connection to a 230V supply. The product is double insulated There is a screwless mains connector
provided.
This product is Part C compliant. This appliance is Class II.
Always switch off the mains supply before servicing, fitting or replacing lamps.
Always check the lamp is correct for the application including its wattage and voltage. Special attention
should be paid to any installations with low ceiling voids. Never exceed the maximum wattage.
Ensure the lamp is correctly located in the lampholder.
SN-BA7WS
Brushed Aluminium
230V AC
6W LED NonDimmable GU10 (Supplied)
520lm
3000k
72mm for Standard Version
73mm IP Rated Version
100mm
White, Chrome
or Brushed Aluminium
IP20 for Standard Version
IP65 for IP Rated Version
Suitable for 30 and
60 minute ceilings
BSEN60598
(Relevant clauses)
BS EN ISO 1403: 1995 & BS EN ISO 1406: 1998
Ø86.5mm
